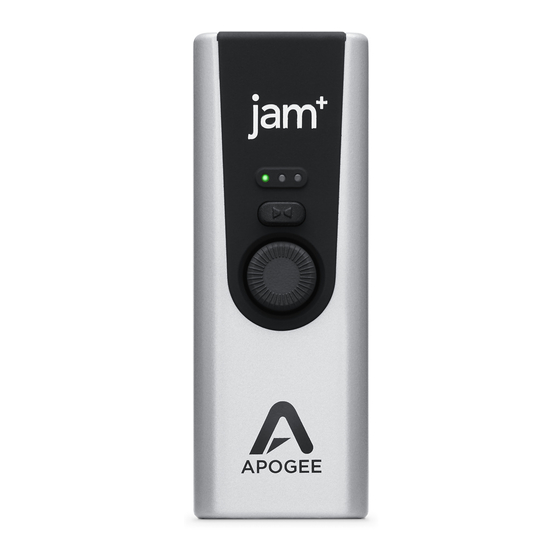

Apogee Jam+ Gebruikershandleiding

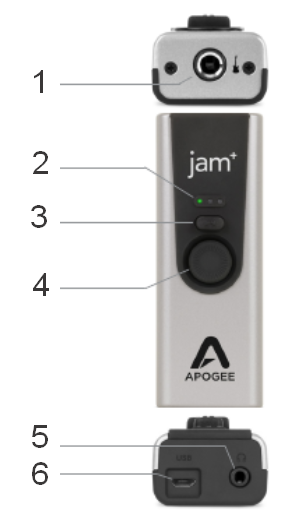

Product Tour Apogee Jam+

1. 1/4" Instrument input
2. 3 meerkleurige LED's voor status, input niveau en Blend-modus indicatie
3. Headphone output Blend control voor opname met lage latency
4. Input gain adjustment knob Push om Overdrive of Clean-modus te selecteren
5. 1/8" Headphone of powered speaker output
6. USB port

In De Doos

• Apogee Jam+
• BIAS FX JAM software download instructies
• Gebruikershandleiding
• Garantieboekje
• Lightning kabel
• USB kabel (Type C)
• USB kabel (Type A)

Status & Input Level Indicator LED's

1. Single Blue = Ingeschakeld, maar niet verbonden met opnamesoftware
2. Single Green = Verbonden en werkend met opnamesoftware
3. Green left-to-right = Audio level meter met Clean-modus aan
4. Green + Orange = Nadert maximaal ingangsniveau
5. Red = Input Overload (Ingangsoverbelasting), Gain moet worden verlaagd
6. Orange left-to-right = Audio level meter met Overdrive-modus aan
7. Single White = Blend aan, keert na 1 seconde terug naar ingangsniveau

Verbinding maken met de Computer/iOS Apogee Jam+

1. Connect cable (Sluit kabel aan)


2. Open a recording program and set up track (Open een opnameprogramma en stel een track in)



3. Connect Headphones to Jam+ (Sluit een koptelefoon aan op Jam+)


4. Adjust Gain & Blend (Pas Gain & Blend aan)
5. Record (Opnemen)
6. Use volume buttons on computer/iOS device to adjust playback level (Gebruik volumeknoppen op computer/iOS-apparaat om het afspeelniveau aan te passen)

Indicators and Controls Apogee Jam+

Input Gain Knob (Ingangsversterkingsknop)

1. Turn Input Gain knob to adjust input signal level (Draai aan de Input Gain knop om het ingangssignaalniveau aan te passen)


2. Less Gain (Minder versterking) More Gain (Meer versterking)

   Clean mode


   Overdrive mode

3. LEDs progressively light green or orange to indicate the gain setting (LED's lichten geleidelijk groen of oranje op om de versterkingsinstelling aan te geven)
4. Push Gain knob to toggle Clean/Overdrive Mode. (Druk op de Gain knop om tussen Clean/Overdrive Mode te schakelen.)


   Clean mode


   Overdrive mode

Blend Control Button (Blend-controleknop)

1. Push Blend button to turn on low latency monitoring feature (Druk op de Blend-knop om de low latency monitoring functie in te schakelen)

2. Press once to turn on (Druk eenmaal om in te schakelen)

3. Center white LED indicates Blend on (Midden witte LED geeft Blend aan)
   Headphone mix is 50% app, 50% input (Hoofdtelefoonmix is 50% app, 50% input)
4. Press again to turn off (Druk nogmaals om uit te schakelen)


LEDs off indicates Blend feature is off (LED's uit geeft aan dat de Blend-functie is uitgeschakeld)

5. Headphone mix is 100% app (Hoofdtelefoonmix is 100% app)

Conformiteitsverklaringen

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.

Changes or modifications not expressly approved by Apogee Electronics Corporation compliance could void the user's authority to operate the equipment.

Rating: 3.3-5V 100mA USB 2.0

Industry Canada Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matérial brouilleur du Canada.

Declaration of Conformity – CE
Apogee Electronics Corporation hereby declares that the product, JAM Plus, to which this declaration relates, is in material conformity with the following standards or other normative documents:

(EN50081-1/EN55022; 1995) and (EN50082-1/IEC 801-2, 3, 4; 1992) following the provisions of: (73/23/EEC – Low Voltage Directive) and (89/336/EEC – EMC Directive)

Declaration of Conformity – CE
Apogee Electronics Corporation hereby declares that the product, JAM Plus, to which this declaration relates, is in material conformity with the following standards or other normative documents:

(EN50081-1/EN55022; 1995) and (EN50082-1/IEC 801-2, 3, 4; 1992) following the provisions of: (73/23/EEC – Low Voltage Directive) and (89/336/EEC – EMC Directive)

Declaration of Conformity – Japan
Apogee Electronics Corporation hereby declares that JAM Plus, to which this declaration relates, is in material conformity with the VCCI Class A standard.

Declaration of Conformity – Australia
Apogee Electronics Corporation hereby declares that the JAM Plus is in material conformity with AN/NZS standard requirements.

Use of the "Made for iPhone", "Made for iPad", and "Made for iPod" badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with an Apple product may affect wireless performance.

Registratie informatie

Be sure to register your JAM Plus by completing the on-line registration form at our
Web site: www.apogeedigital.com/register

The benefits of registering include access to free, expert technical support by email or phone, important email notifications regarding new features and important updates, and new Apogee product notifications before they're announced to the public.

Please address any inquiries to your dealer or directly to Apogee at:
APOGEE ELECTRONICS CORPORATION
1715 Berkeley St Santa Monica, CA 90404, USA
TEL: (310) 584-9394, FAX: (310) 584-9385

Web site:
www.apogeedigital.com

Knowledgebase:
www.apogeedigital.com/knowledgebase

Support:
www.apogeedigital.com/support

www.apogeedigital.com

© 2018, Apogee Electronics Corp. All Rights Reserved
PN: 0070-0012-0000 Rev. 2.0 | AN: 2740-0054-0000 Rev. 2.0
