DAB ngpanel Instructies Voor Installatie En Onderhoud pagina 32
Beschikbare talen
Beschikbare talen
14.5
Main menu
The image is for representative purposes only. It does not describe an actual condition of the system.
14.5.1
First installation
Manual Control: press and hold the key
key
to activate both pumps.
Once the system has been tested manually, it is necessary to return to the previous screen by pressing the
key
and selecting "Start Autonomous Operation"
Start Autonomous Operation: it is possible to indicate from this screen which pumps to enable or disable, allowing the system to
manage their activation autonomously.
14.5.2
Menu structure
The first screen visible in the main menu is the "Overview".
It is possible to view the all functions available in the menu structure from Fig.17
Error and Alarm Log
Pump exchange mode
ENGLISH

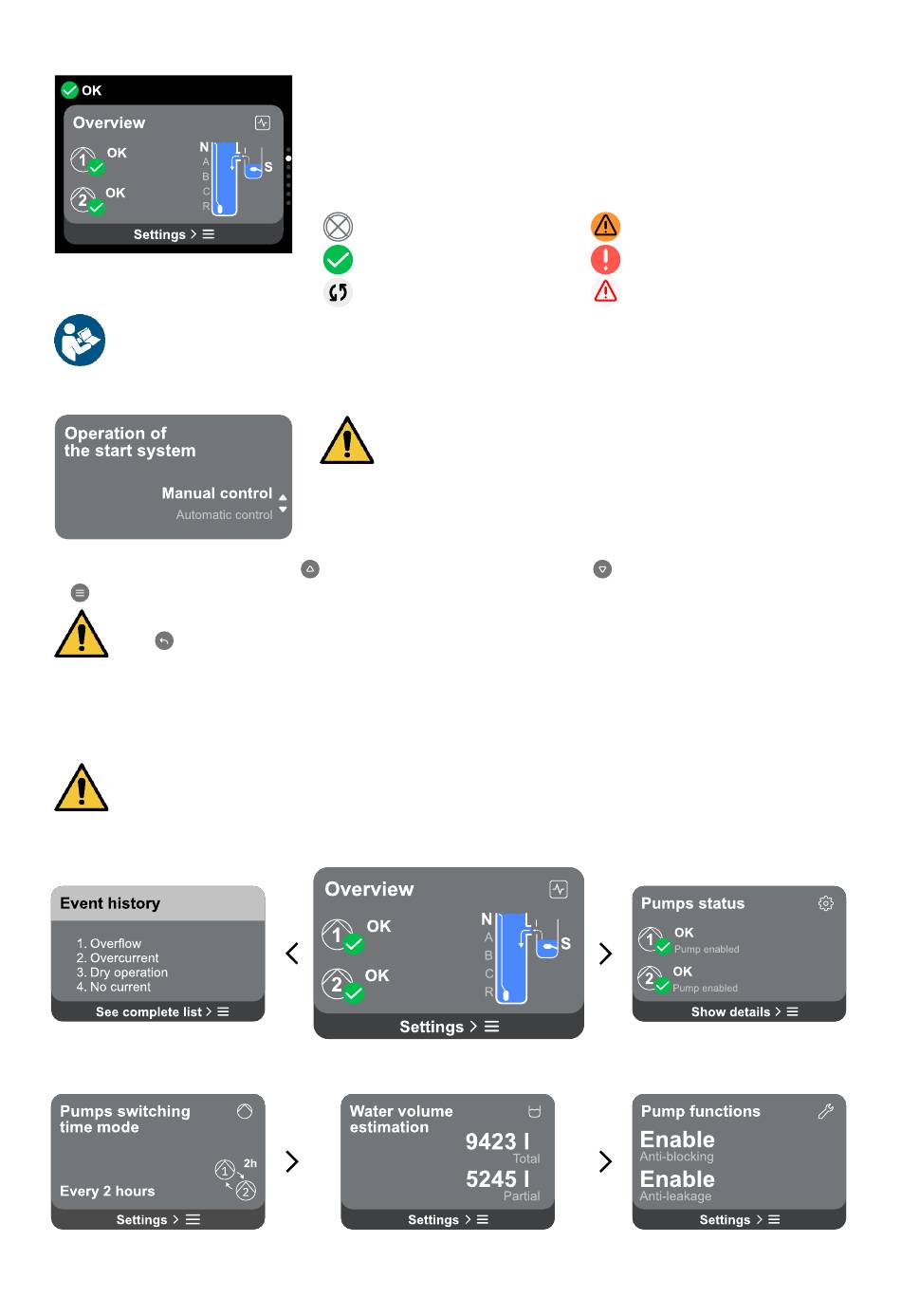

Panoramic view of the display
The screen describes:
-
On the left pump 1 symbol and its status, pump 2 symbol and its status.
-
On the right a graphic representation of the system condition and its status.
Status icons
The following icons apply to both pumps and the system
No status detected
Device ready
Device running
The "Pumping System Operation" pop-up appears only on first
installation.
Activation of the system is allowed via "Manual Control" or "Autonomous Operation".
to activate pump 1, press and hold the key
Overview
Water volume estimation
56
Warning
Alarm
Danger
to activate pump 2, press and hold the
Pump status
Auxiliary functions
