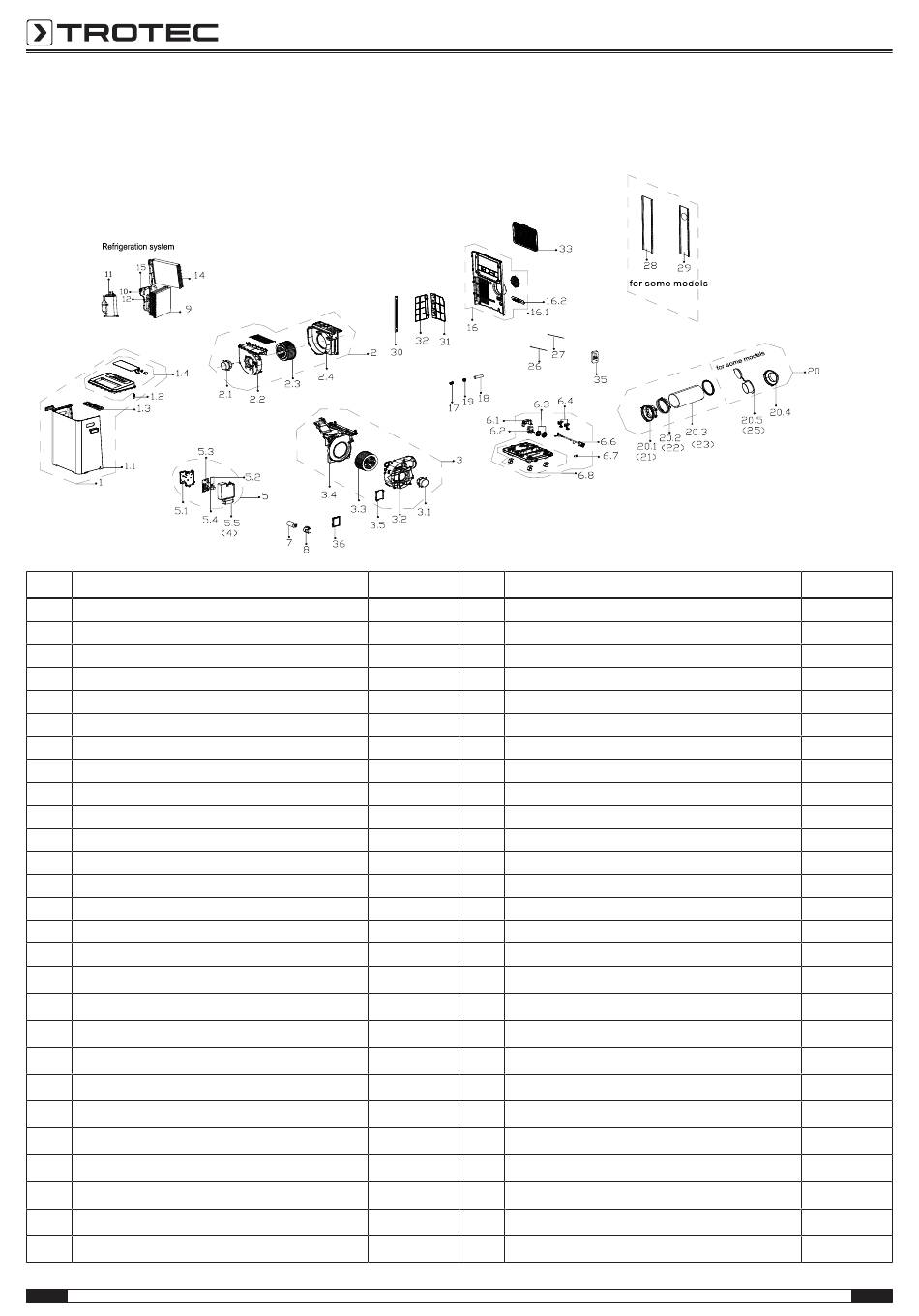

Exploded View - Trotec Pac 3900 X Bedieningshandleiding
Inhoudsopgave
Reserveonderdeeloverzicht en reserveonderdeellijst
Sale Model：
Product Code：
Power Supply：
No.
Part Name
1
Front panel assembly
1.1
Front panel subassembly
1.2
Signal receiving window
1.3
Display box
1.4
Upper panel subassembly
2
Cover of Air exhaust volute shell assembly
2.1
Single phase asynchronous motor
2.2
subassembly of Fan Shell Cover
2.3
centrifuge fan
2.4
Air outlet volute shell
3
Air outlet volute shell assembly
3.1
Single phase asynchronous motor
3.2
Cover of Air exhaust volute shell
3.3
Centrifuge fan
3.4
Air exhaust volute shell subassembly
4
E-Box Cover
5
Electronic control box subassembly
5.1
Electronic control box subassembly
5.2
Inverter control board subassembly
5.3
Main control board subassembly
5.4
Capacitor auxiliary board subassembly
6
Chassis assembly
6.1
cover of Shaded pole motor
6.2
Shaded-pole motor
6.3
Water Wheel
6.4
Water Level Switch
6.6
Power cord subassembly
22
Exploded View
PAC 3900 X
1210002130
220_240V_1Ph,FREQUENCY_50HZ
Quantity
Opmerking: De positienummers van de reserveonderdelen
onderscheiden zich van de in de bedieningshandleiding
gebruikte positienummers van de onderdelen.
No.
Part Name
1
6.7
Drain stopper
1
6.8
Chassis subassembly
1
7
Capacitor of compressor
1
8
Capacitor box
1
9
Condenser Assembly
1
10
Suction pipe assembly
1
11
Fixed Speed Rotary Compressor
1
12
Discharge pipe assembly
1
14
Evaporator assembly
1
15
Capillary Assembly
1
16
Rear panel assembly
1
16.1
Rear panel subassembly
1
16.2
Bobbin winder
1
17
Cover of Drain connector(outdoor)
1
18
Drain pipe
1
19
Drain connection
1
Connecter, air excaust duct
21
1
Connector, air exchaust duct
22
1
Exhaust hose subassembly
23
1
25
Connecter, air excaust duct
1
Pipe temperature sensor
26
1
Room Temperature Sensor
27
1
Supporting bar
30
1
Outside inlet air frame unit
31
2
32
Down filter
1
33
Indoor air inlet grille
1
Remote controller
35
lokale airconditioner PAC 3900 X
Quantity
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
