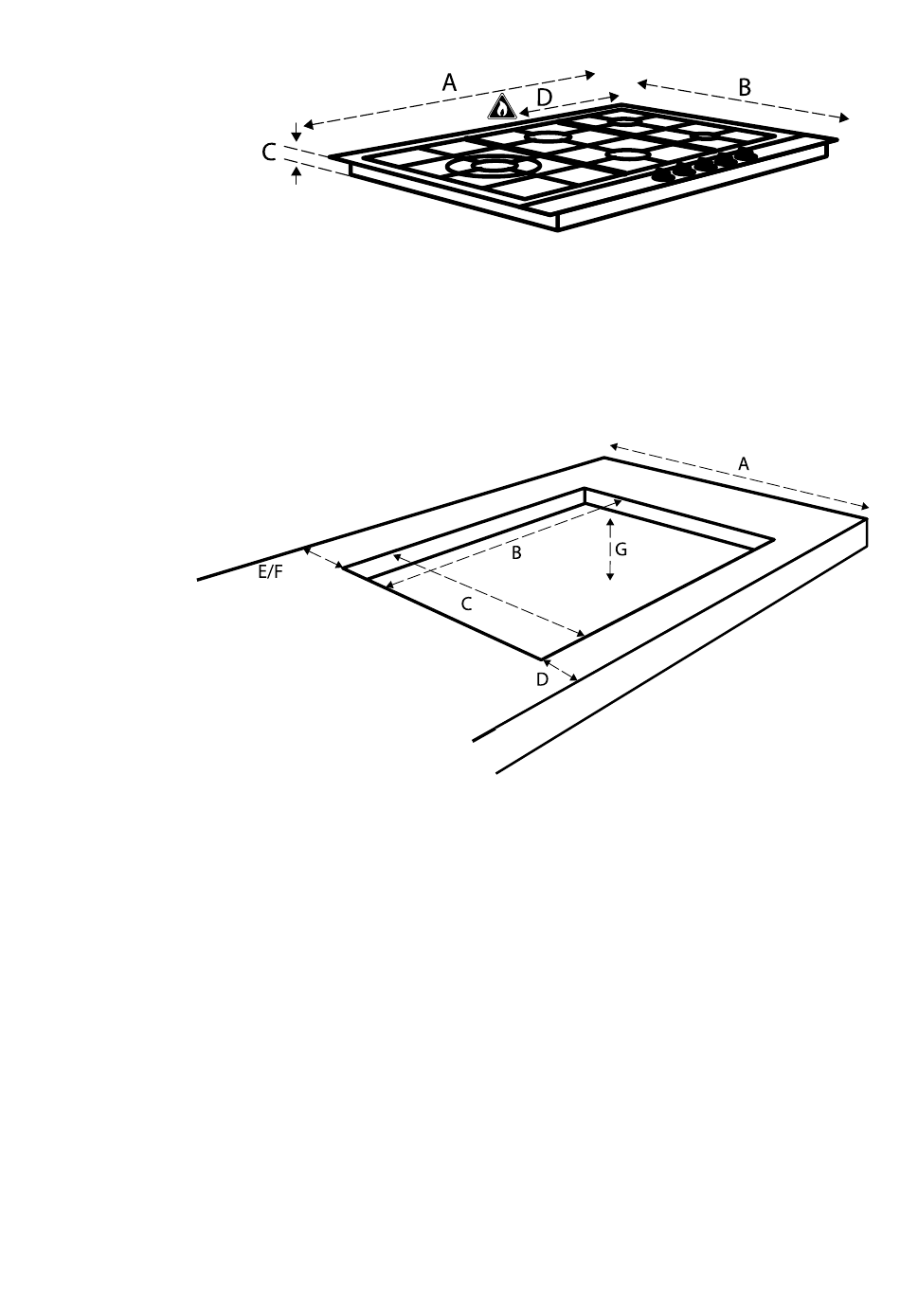

OUTER DIMENSIONS
In the drawings below, all the dimensions are displayed in mm.
Dimensions in mm
IKG6010RVS/6012WGRVS
IKG6022WGRVS
IKG7021WRVS/7022WGRVS
IKG9022WGRVS
INSTALLATION DIMENSIONS
In the drawings below, all the dimensions are displayed in mm.
Dimensions in mm
IKG6010RVS/6012WGRVS
IKG6022WGRVS
IKG7021WRVS/7022WGRVS
IKG9022WGRVS
E* keep this distance when in case of a stone back wall, such as tiles.
F** keep this distance in case of a wooden back wall.
22
•
English
IKGxxxx-instructions.indd 22
A
B
C
590
510
45
620
510
45
720
510
45
909
510
50
A
B
C
600
560
480
600
560
480
600
560
480
600
840
480
D
50
200
300
50
D
E*
F**
60
30
50
60
30
50
60
30
50
60
30
50
G
100
100
100
100
