STEP 3 – (Install the lower brackets and wheels). Place the lower cross (brackets 2&3) under
part 1. Position part 6 upright and connect to part 1 and brackets 4&5. Using screw B and cap
nut G, connect parts 4&5 to part 6 and carefully screw into place. Then insert the threaded
caster through the hole in the end of the lower cross, then through the 2 upright brackets.
Install flat washer H with cap nut I, repeat for the other caster wheels and tighten securely.

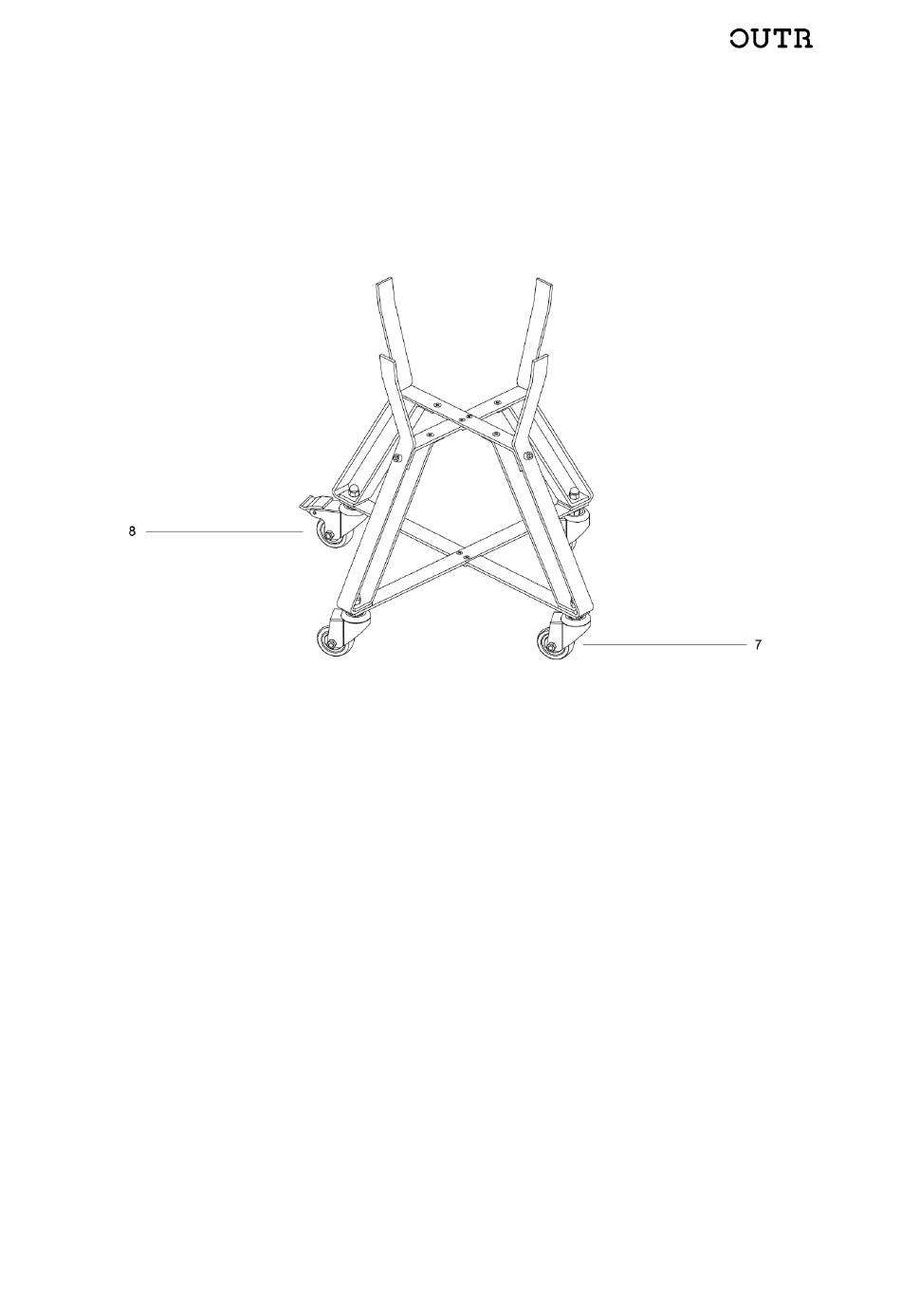

STEP 4 – As illustrated, position wheel 7 in front and the wheels with brakes in the rear.
STEP 5 – Remove all items from the BBQ before placing it on the base to make lifting easier.
STEP 6 – Lift the Kamado with at least 2 people to place it on its base.
STEP 7 – Place the foot upright on a flat surface. Now you can install the Kamado in the foot
with the help of an assistant. Position the Kamado so that the ventilation hatch between the 2
uprights is accessible. Push the Kamado gently downwards so that it can sit in the nest.
32
