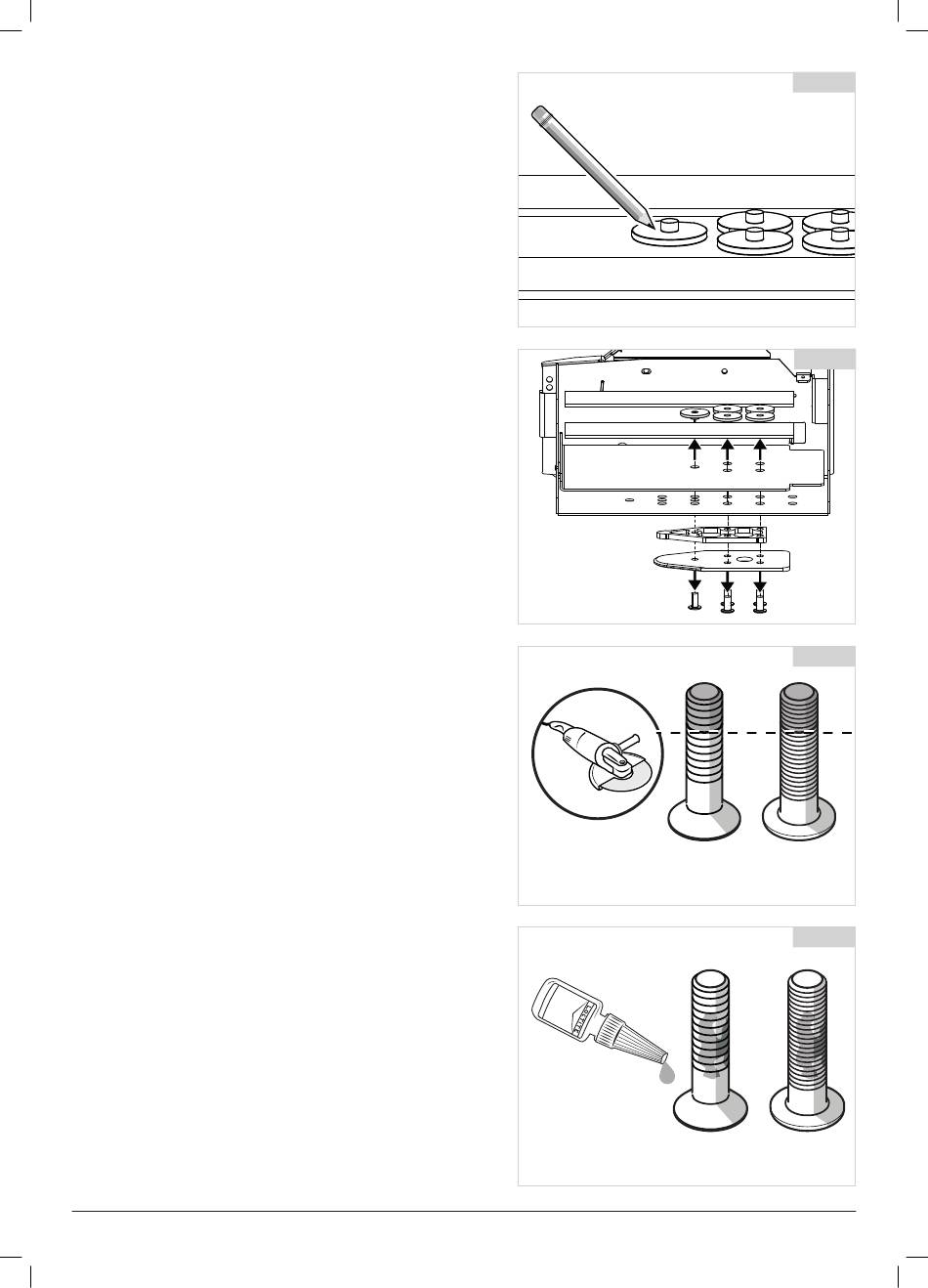

4. Mark where to cut the screws. (Fig. 7.12).
5. Remove the screws together with the spacer/spacers and
lockplate (Fig. 7.13).
6. Cut the screw where the mark is (Fig. 7.14).
It is very important that the fitter checks that the length of
the bolts are correct. If bolts are too short to reach through all
the threads - they will not have the strength to carry the loads
required. If bolts are too long the batteries or other wheel chair
components can be damaged. If necessary replace with longer
bolts, or shorten them.
7. Apply Loctite 243 (or an equivalent product) onto the screw
(Fig. 7.15).
30
x5
M8
M8
(for MWD &
RWD Bases)
x5
M8
M8
(for MWD &
RWD Bases)
Q700 M/M HD/F/R/UP-M/UP-F | Rev. K | English
Fig. 7.12
Fig. 7.13
Fig. 7.14
M10
M10
(for FWD Base)
Fig. 7.15
M10
M10
(for FWD Base)
