Conveying Medium:
•
The temperature of the pumped medium may range
from 1°C to 40°C.
•
In the case of non-explosion-proof submersible mo-
tor pumps, up to 60°C are permitted in the conveying
medium for a short period.
•
The salt concentration in the pumped medium may
be a maximum of 3.5% at up to 1°C to 15°C medi-
um temperature. At 16°C - 20°C a maximum of 1% is
permissible.
•
The maximum density of the medium is 1040 kg/m³.
The solid content depends mainly on the impeller
type and is mentioned in chapter 3.3.
•
The pH may be from 5 – 14. However, the pH alo-
ne only serves as a guideline. In any case, alongs-
ide the composition of the medium, the dura-
bility of the pump must be requested from the
manufacturer. Depending on the composition, it
may be necessary to use special sealing materials.
3.2. Types of Application
•
Pumps CH413... are designed for 40% S3 intermit-
tent operation.
•
Pumps CH43... are designed for continuous opera-
tion mode S1 with a switching frequency of 20 cir-
cuits/hour.
•
Intermittent operation S3 40% is necessary for the
use with emerged motor.

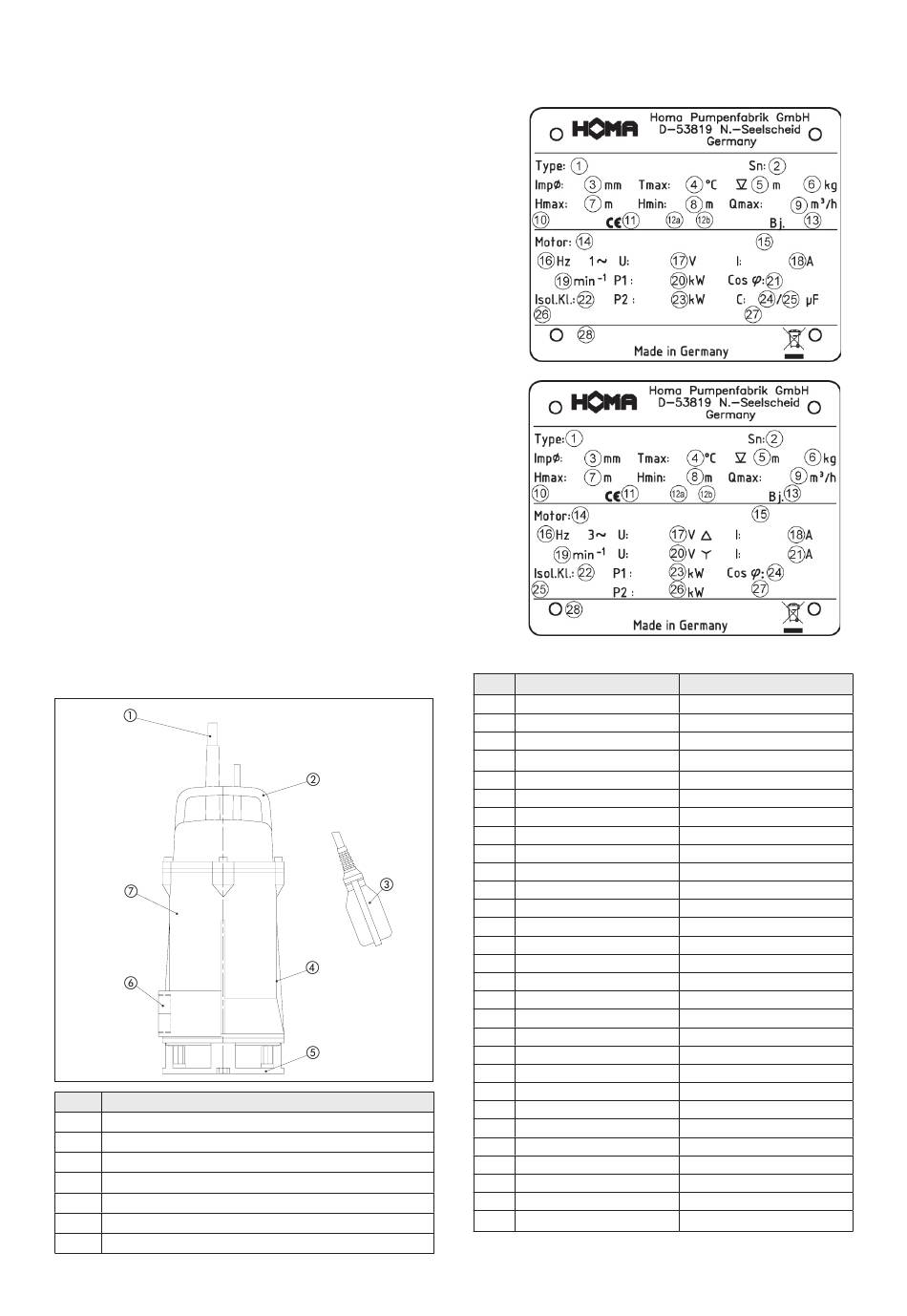

3.3. Construction
The submersible aggregate consists of the motor, the
pump casing and the suitable impeller. All important parts
are of generous dimension.
No.
Description
1
Cable
2
Handle
3
Float switch
4
Type label
5
Suction sieve
6
Discharge
7
Motor housing
28 | ENGLISH
3.3.1. Type Plate
1Ph
3Ph
No.
1 Ph
1
Typ description
2
Serial number
3
Impeller diameter
Temperature of medium
4
5
Immersion depth
6
Weight
7
Hmax (delivery head max)
8
Hmin (delivery head min)
9
Qmax (delivery volume max) Qmax (delivery volume max)
10
Standard
11
Construction product test lab
12a
Year type test
12b
Declaration of performance
13
Build year
14
Motor type
15
IE Marking
16
Frequency
17
Voltage
18
Nominal current
19
Motor RPM
20
Power P1
21
Cos phi
22
Insulation class
23
Power P2
24
Start condenser
25
Operating condenser
26
Protection class
27
Operating class
Text field sales
28
3 Ph
Typ description
Serial number
Impeller diameter
Temperature of medium
Immersion depth
Weight
Hmax (delivery head max)
Hmin (delivery head min)
Standard
Construction product test lab
Year type test
Declaration of performance
Build year
Motor type
IE Marking
Frequency
Voltage - 3Phase
Nominal current - 3Phase
Motor RPM
Voltage - Star Connection
Nominal current Star connection
Insulation class
Power P1
Cos phi
Protection class
Power P2
Operating class
Text field sales
