INSTALLATION

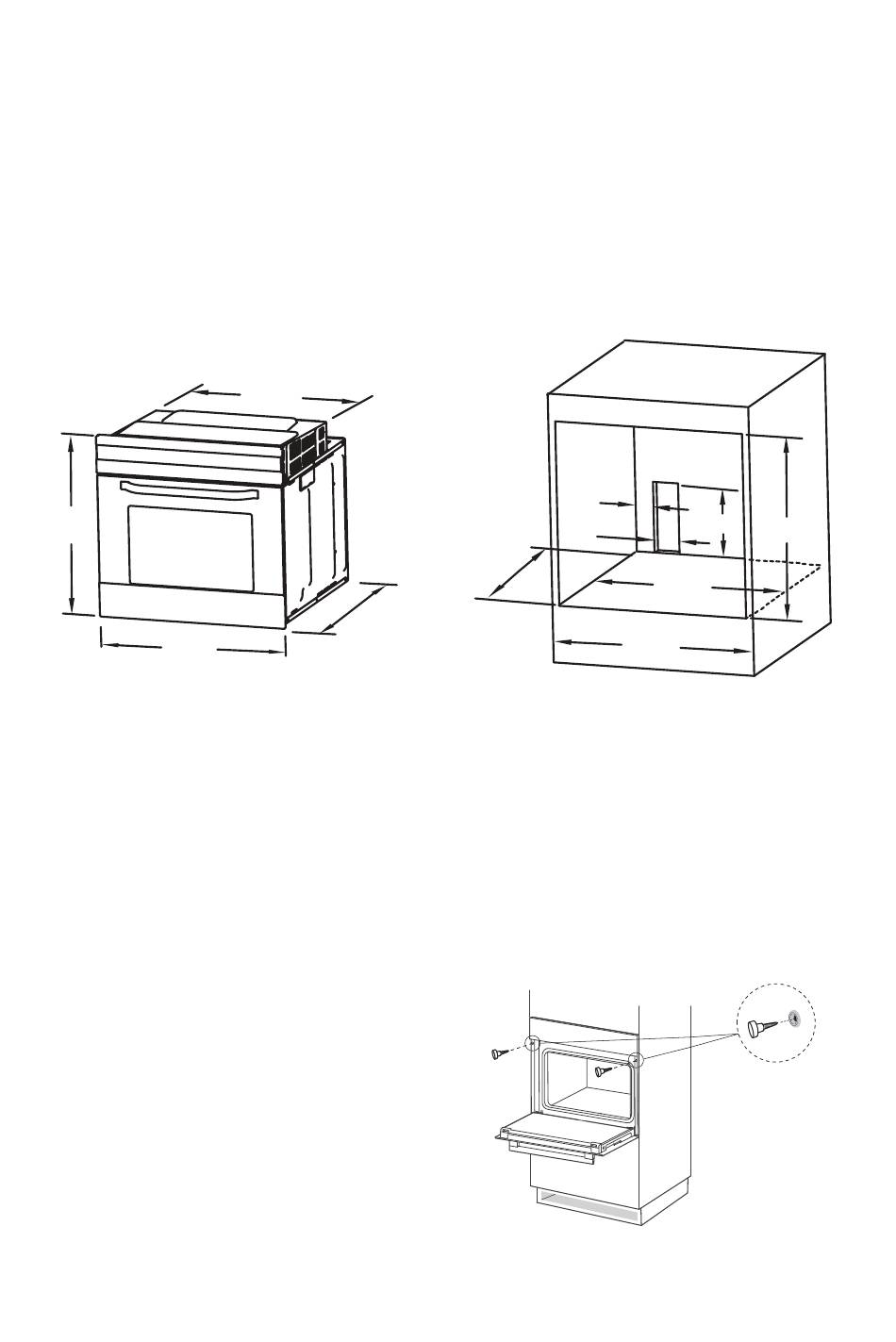

The diagram below determines the correct dimensions to install the oven in a cabinet.
This oven can also be installed as an under counter oven.
The walls surrounding the oven must be made of heat-resistant material. Both the
veneered plastic and the adhesive used must be resistant to temperatures of 120°C in
order to prevent unsticking and deformation.
The attached dimensions are in mm.
595
595
Installation Steps
1.
Please make cabinets based on the data of "Cabinet diagram".
2.
Before installation, please check whether the power socket is grounded
and the cabinet size meets the installation require-ments.
3.
Install the machine at the designated location in the kitchen and install it in an
upright cabinet.
Open the furnace door, determine the two installation holes on the frame, and
4.
fix the machine at the installation position with the screws provided with the
product.
Schematic diagram of cabinet fixing
ELECTRICAL CONNECTION
Electrical connections must only be performed by a qualified and authorised
electrician.
560
575
100
570
min.
EN-6
80
250
560
60
6
600
