INSTALLATION
Ø150
H1
2x
Connections

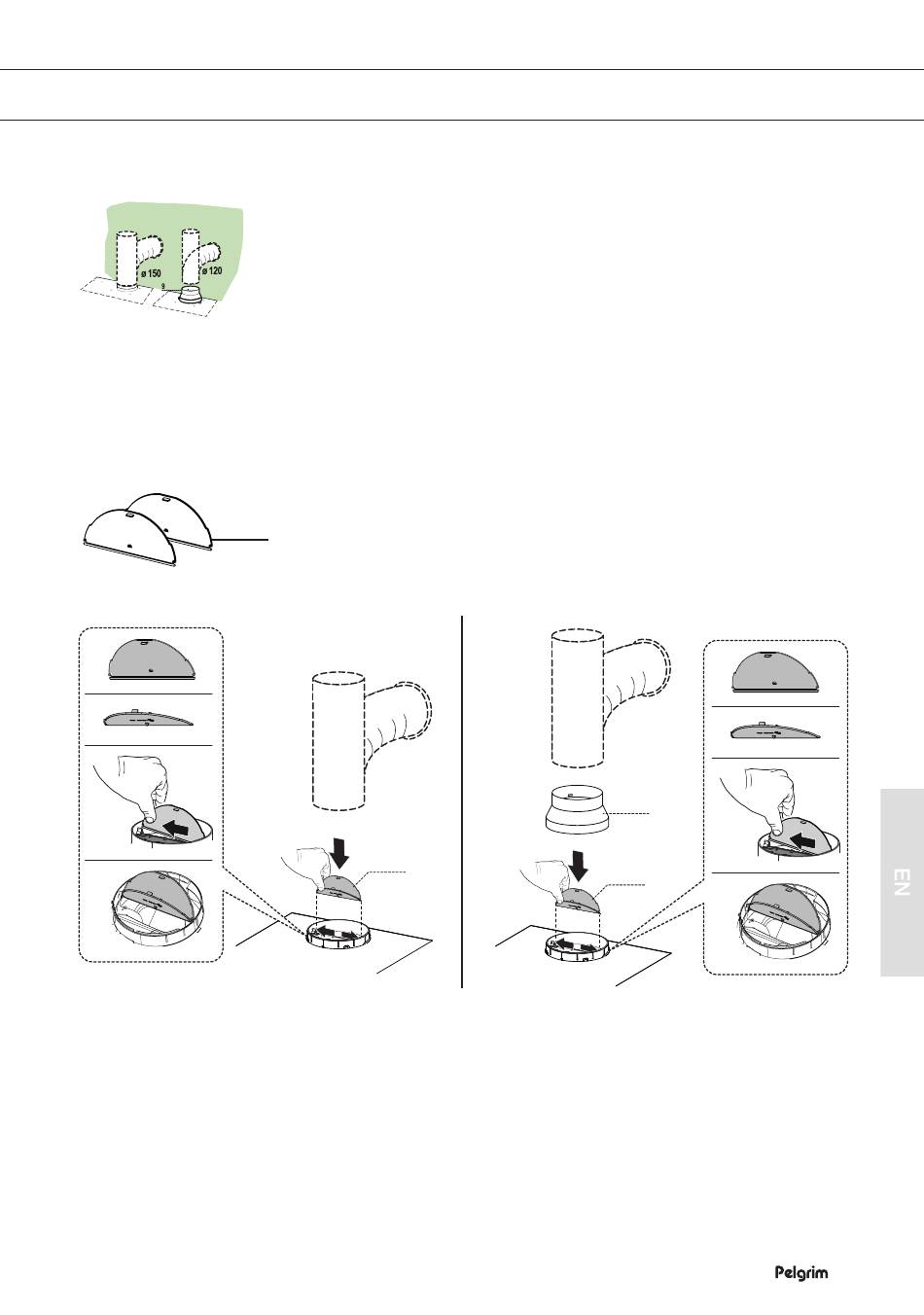

Ducted version air exhaust system
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ø150 or 120 mm, the choice of which
is left to the installer.
• For ducted versions, use the supplied shut-off valves to prevent
backflow of air through the exhaust duct. Click these into the motor
outlet (see drawing).
• To install a ø120 mm air exhaust connection, insert the reducer
flange '9' on the hood body outlet.
• Fix the pipe in position using sufficient pipe clamps (not supplied).
H1
2x
Ø120
O
Ø150
H1
2x
H1
Ø120
Ø150
H1
2x
2x
H1
2x
Ø120
Ø120
O
O
H1
H1
2x
2x
Ø150
H1
2x
EN 11
