Manual - DMX24

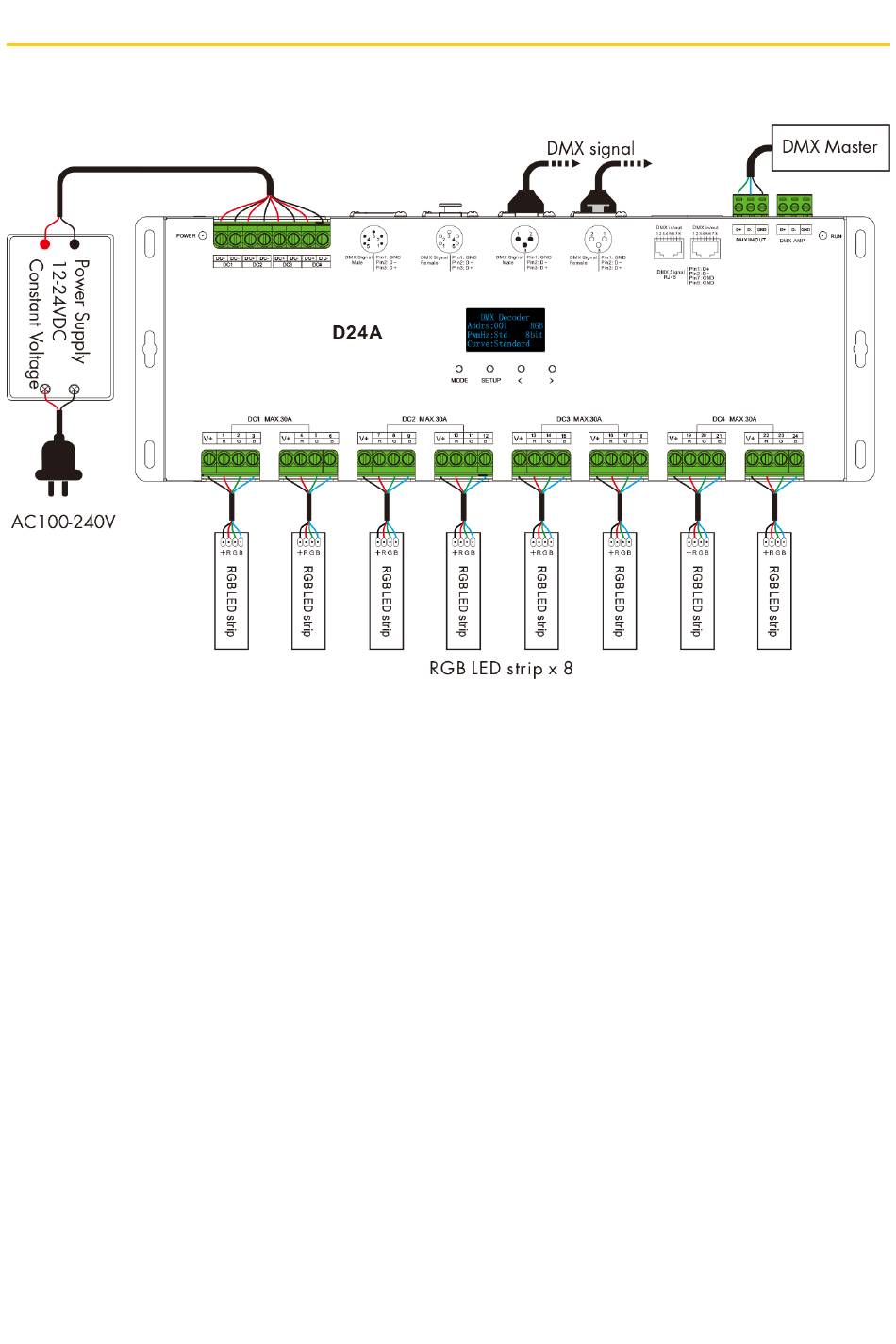

WIRING DIAGRAM
1.
Connecting with green terminal(DMX AMP) or an extra amplifier will be needed when
more than 32 decoders are connected, or use overlong signal line, signal amplification
should not be more than 5 times continuously.
2.
If the recoil effect occurs because of longer signal line or bad line quality, please try to
connect 0.25W 90-120Ω terminal resistor at the end of each DMX signal line.
3.
When the 24-way load is too large and the input power of one constant voltage power
supply is insufficient, multiple constant voltage power supplies can be used. Up to 4
constant voltage power supplies can be connected as power inputs, each power supply
can be used to supply 8 loads respectively.
USE
•
Short press MODE key, switch between DMX decoder mode, Dimmer mode and RGB
controller mode.
•
Short press SETUP key, enter parameter setting state, and switch between multiple pa-
rameter item.
•
press < or > key for parameter adjustment.
•
long press SETUP key or wait 30s to quit parameter setting state.
•
Long press M & > key for 2s, enter fast self-testing.
•
Long press < & > key for 2s, restore factory default parameter.
