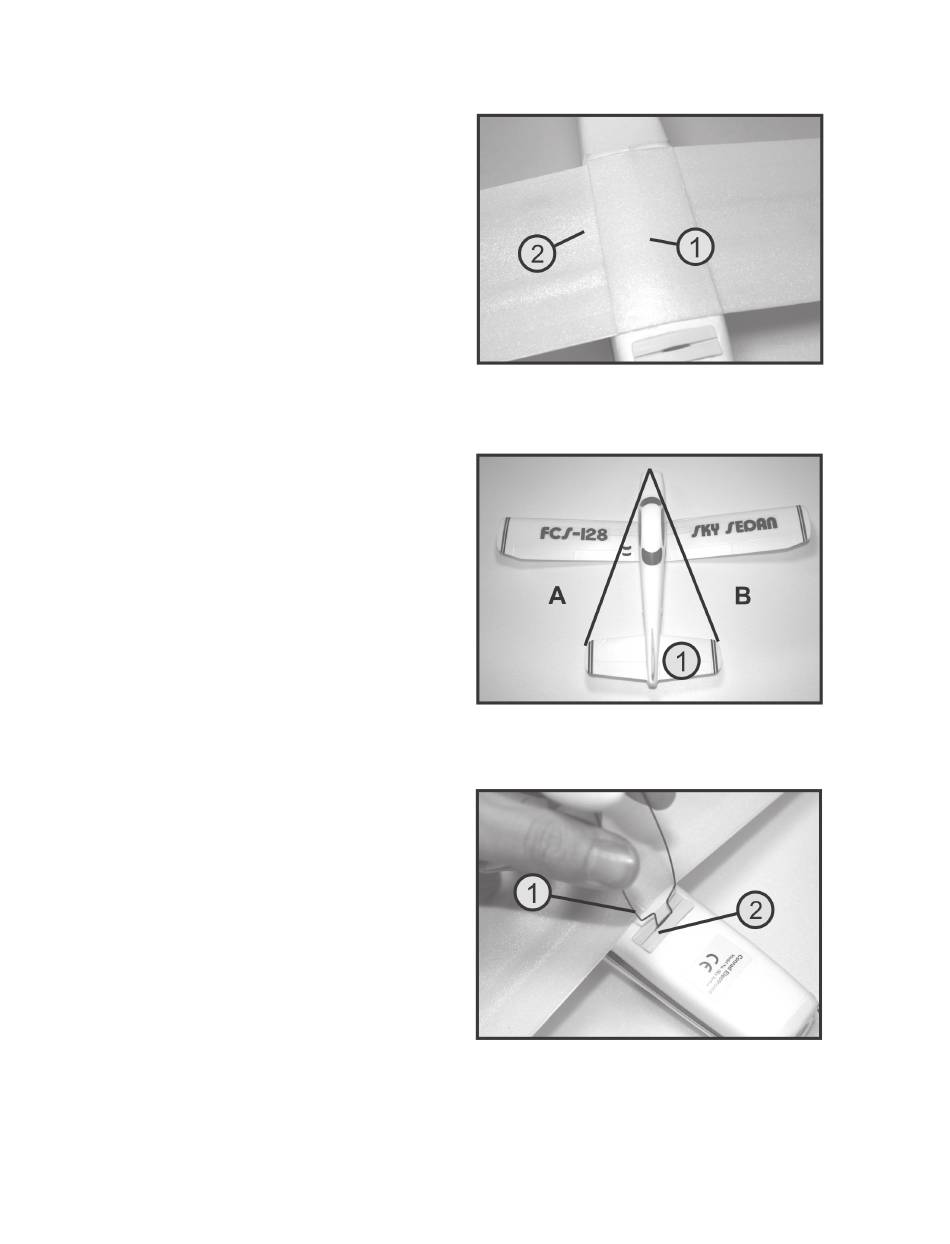

c) Gluing on the Wing Cover
Before gluing the wing cover (1) to the wings (2), remove
the double-sided adhesive tape protection foil at the glue
point.
When gluing on the cover, ensure that it corresponds to the
fuselage contour.
d) Gluing on the Tail Unit
Before gluing the tail unit (1) to the fuselage slot, remove
the double-sided adhesive tape protection foil at the glue
point.
Slightly bend open the fuselage and glue in the tail unit.
The slightly indicated rudder flaps of the tail unit must be on
top.
Please note: The tail unit must be parallel to the wing and
the two distances A and B must be equal in length.
e) Mounting the Landing Gear
Compress the landing gear (1) and slide it into the intended
plastics receptacle (2).
All manuals and user guides at all-guides.com
Figure 4
Figure 5
Figure 6
