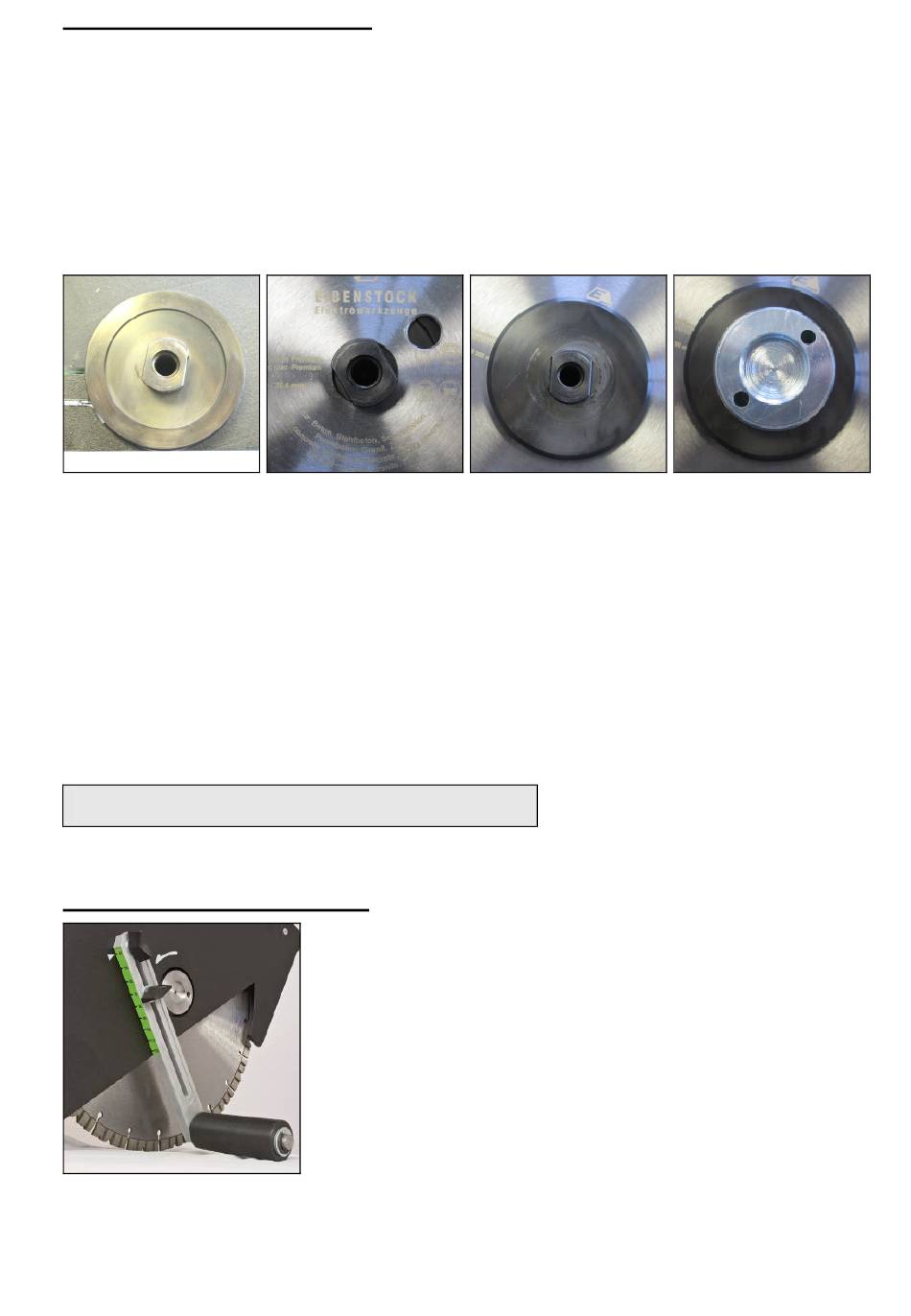

Changing the cutting wheel:
For clamping and loosening the cutting tools, lock the grinder spindle with the
spindle lock button (D).
Actuate the spindle lock button only when the grinder spindle is at a standstill.
Otherwise, the machine may become damaged.
With this button depressed rotate the wheel until it has profoundly gone deeper.
The flange (F) can be detached using the supplied wrench (H).
Unscrew the flange completely from the spindle.
Now detach the cutting disc from the machine mount a new disc.
Screw the flange (F) onto the spindle and tighten it with the help of the
assembly tool (H) whilst actuating the spindle lock at the same time.
When using diamond cutting discs, pay attention that the direction-of-rotation
arrow on the diamond cutting disc and the direction of rotation of the machine
(see direction-of-rotation arrow on the machine head) agree.
In order to check whether the spindle stop is released before you switch
on the tool, turn the spindle slightly. Check grinding tools before using.
The grinding tool must be mounted properly and be able to move freely.
Carry out a test run for at least one minute with no load. Do not use
damaged, out-of-centre or vibrating grinding tools. Damaged grinding tools
can burst and cause injuries.
Cutting depth limiting
Cut depth adjustment and limiting is available as optional accessories.
Installation and adjustment:
The depth scale is a guideline, designed for new diamond cutting discs with
max. segment height.
The cutting depth decreases with wear of the segments.
First, remove the protective plate of the protective
cover and replace it by the protective plate belonging
to the cutting depth limiting.
Use the two wing bolts to tighten the cutting depth
limiting to the protective plate (refer to the figure).
To set the desired cutting depth, loosen the two wing
bolts, set the desired cutting depth by means of the
scale, and tighten the screws again by hand.
24
