13.6 Electrical connection
In order to ensure the safe and trouble-free operation of the device, the following
instructions must be observed for the electrical connection:
Before connecting the device, compare the connection data (voltage and frequency) on
the rating plate with those of your electrical network. This data must agree in order that
no damages occur in the device. If in doubt, ask your qualified electrician.
The connection between the device and the electrical network may employ a 3 meter
long (max.) extension cable with a cross-section of 1.5 mm². The use of multiple plugs
or gangs is prohibited because of the danger of fire that is involved with this.
Make sure that the power cable is undamaged and has not been installed under the
oven or over hot or sharp surfaces.
The electrical outlet must be protected by a 16A safety cut-out switch.
The electrical safety of the device is only guaranteed if the device is connected to a
properly installed protective conductor system. If in doubt, have the house installation
checked over by a qualified electrician. The manufacturer cannot be made responsible
for damages that are caused by a missing or damaged protective conductor.
14 Design and Function
This chapter provides you with important safety notices on the design and function of the
device.
14.1 Operating elements and displays
14.1.1

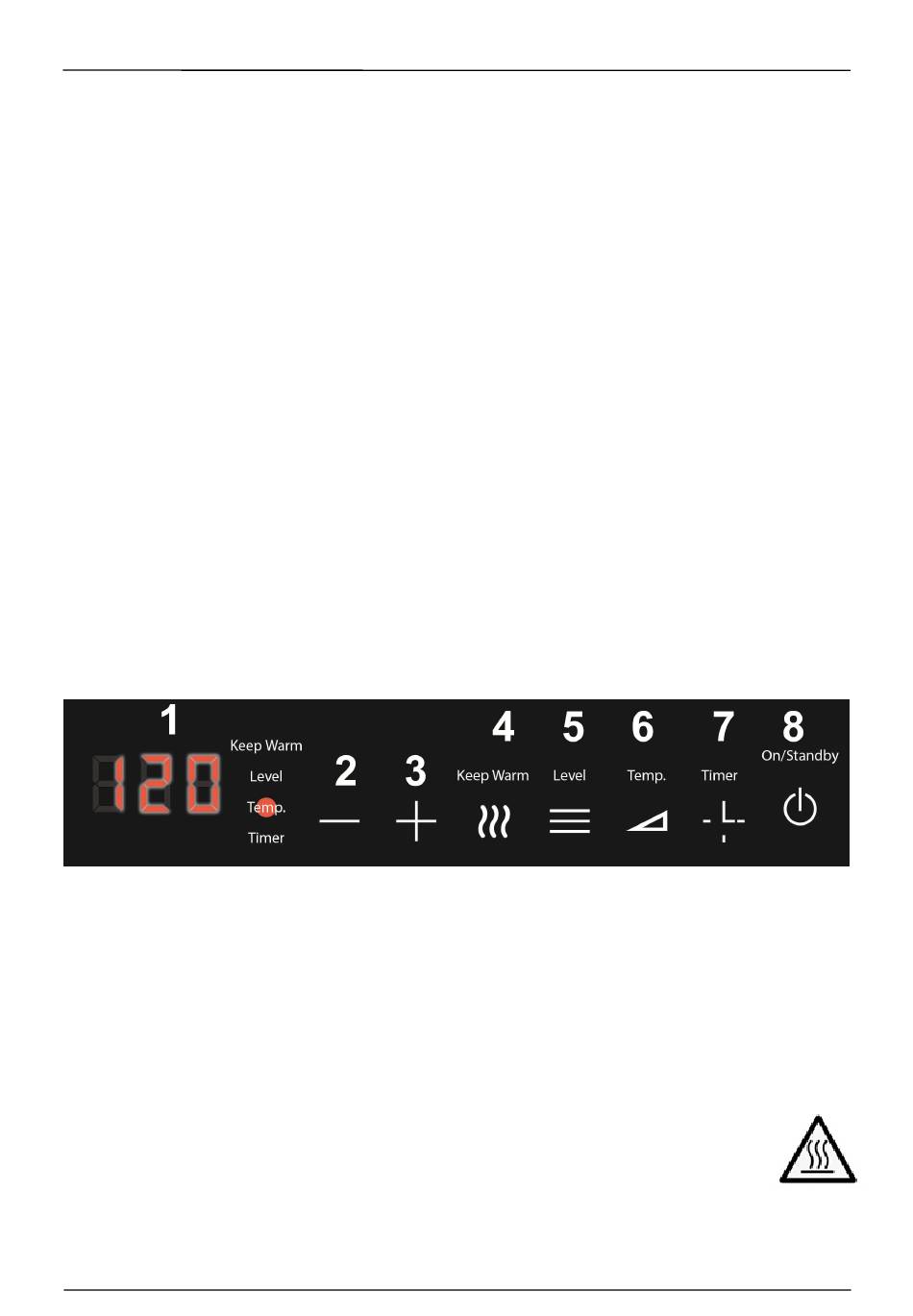

Operating panel and Display
1 Display of the selected setting
2 Selection button (-), reduction of the power level, temperature or duration
3 Selection button (+), increase of the power level, temperature or duration
4 Button Keep Warm
5 Button Level
6 Button Temperature (Temp.)
7 Button Timer
8 On/Standby button
14.1.2
Details on the device
This instruction and when "H" is displayed, is to warn that the ceramic hob may
still be hot. Although the induction cooker itself does not generate any heat
during the cooking process, the temperature of the cooking utensil does heat the hob!
37
