19.3 Inserting cable and securing with strain relief
Secure the power cable in the foundation using the cable gland.
Connect the conductors of the cable to the existing main switch terminals
(max. 15
to
22Nm bolt m8 oder 30
to
44Nm bolt s10).

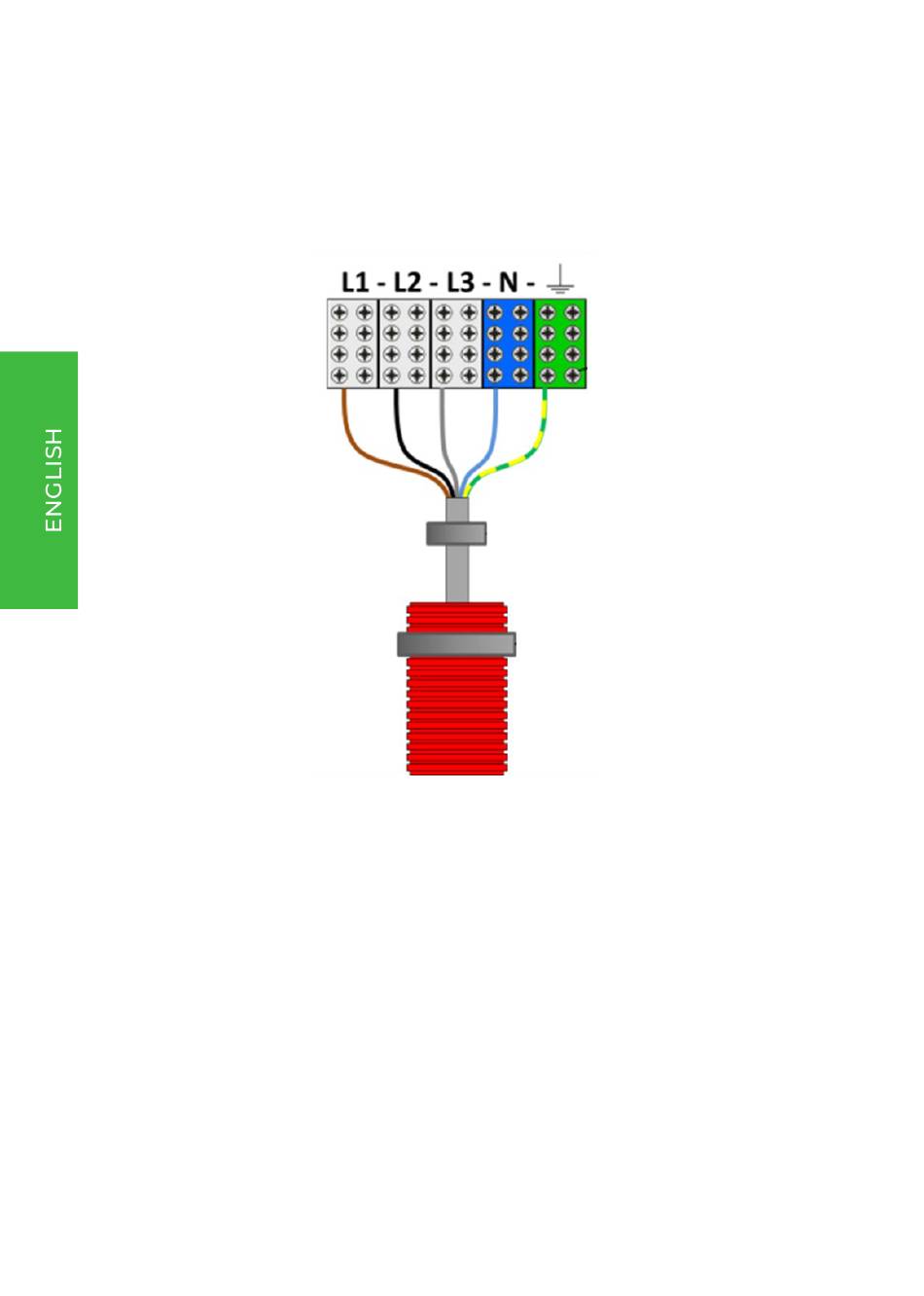

Below is an overview of the wiring diagram
19.4 Load balancer
If you want to install the charging station in combination with a load
balancer you must connect it to the charging station in the following way.
The installation instruction of the charging station in the fuse box can be
found in the manual of the load balancer itself.
The data cable from the load balancer must be connected to the gray clip
(see drawing).
22
