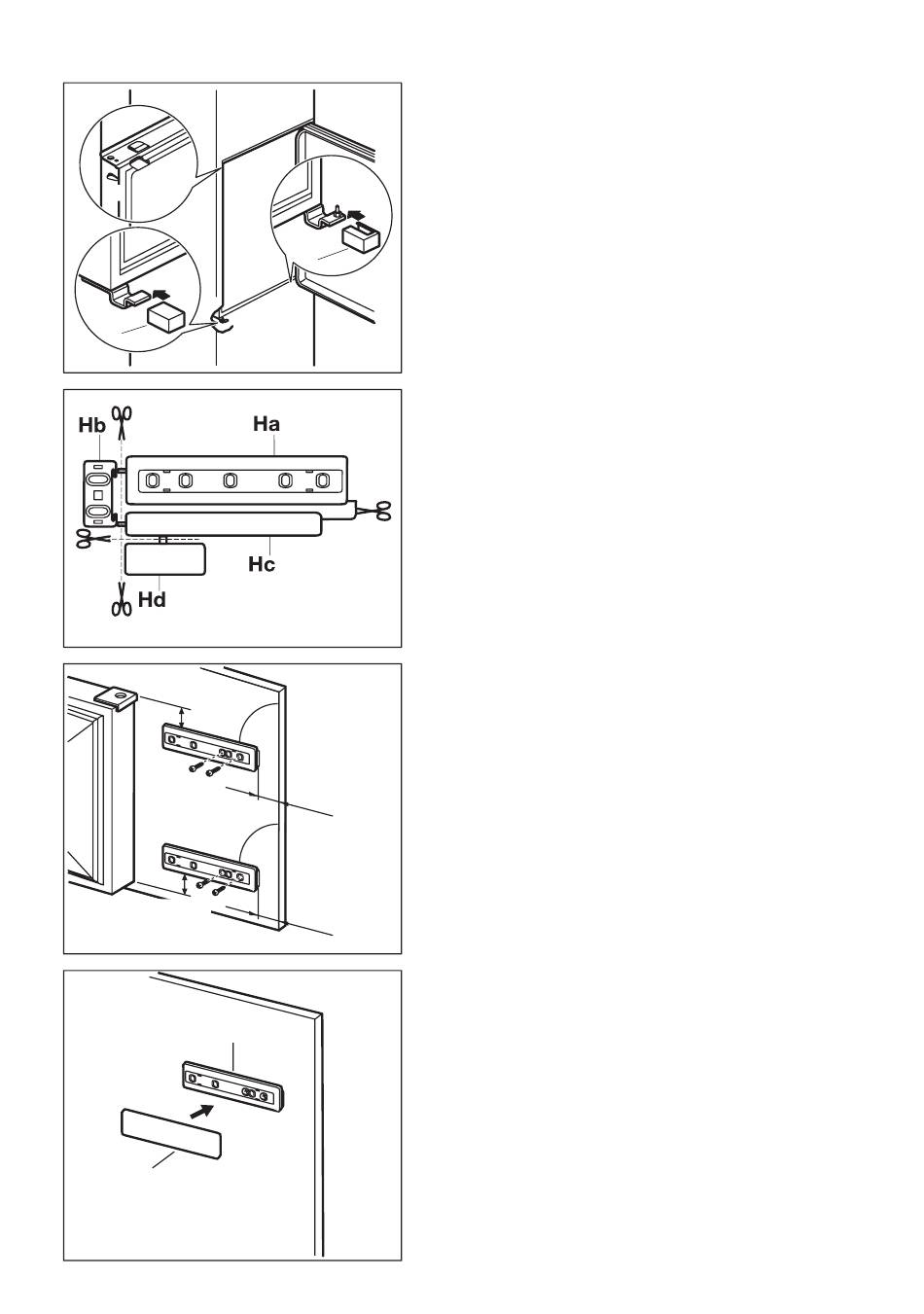

Attach the covers (C, D) to the lugs and the
hinge holes.
Attach the hinge covers (E) to the hinge.
Disconnect the parts (Ha), (Hb), (Hc) and
(Hd).
Install the part (Ha) on the inner side of the
kitchen furniture door.
Push the part (Hc) on the part (Ha).
