R-Net Control System | Rev. H | English

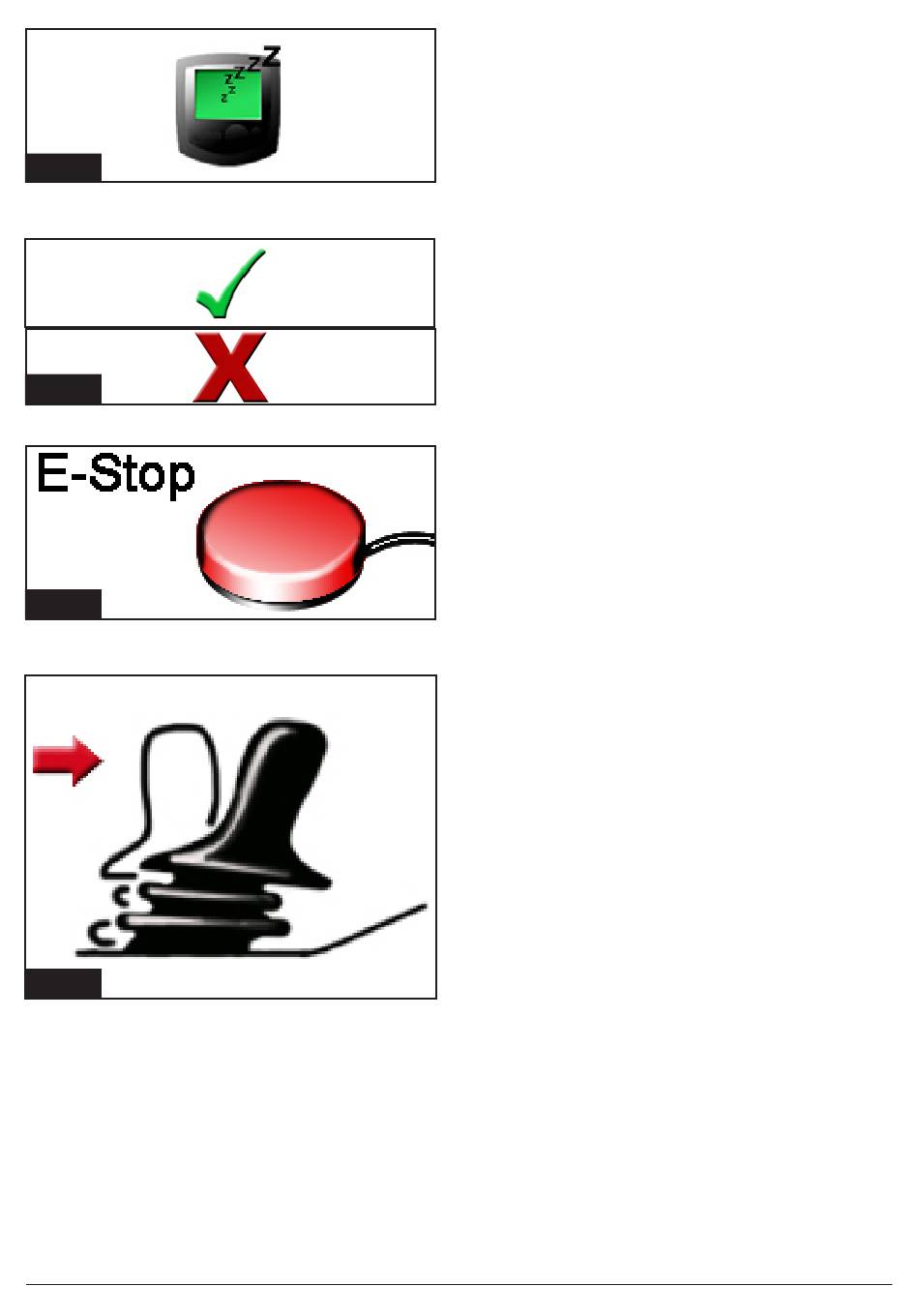

Sleep (Fig 4.20)
This symbol will be displayed for a short time before the R-net
enters into a sleep state.
Cross & Tick (fig 4.21)
These symbols will be displayed during configuration
procedures.
1. Process completed correctly.
2. Process not completed correctly.
E-stop (Fig 4.22)
If the External Profile Switch is activated during drive, or
actuator operation, this symbol will be displayed.
Joystick Displaced (Fig 4.23)
If you operate the Joystick before or just after you switch the
control system on, the screen will flash the joystick displaced
screen.
You must release and centre the Joystick to resume normal
operation. If you do not release the Joystick within five seconds
the wheelchair will not be able to move, even if you release
the Joystick and operate it again. The screen will display a
diagnostic screen at this time. You can reset this condition by
switching the control system off and on again.
15
