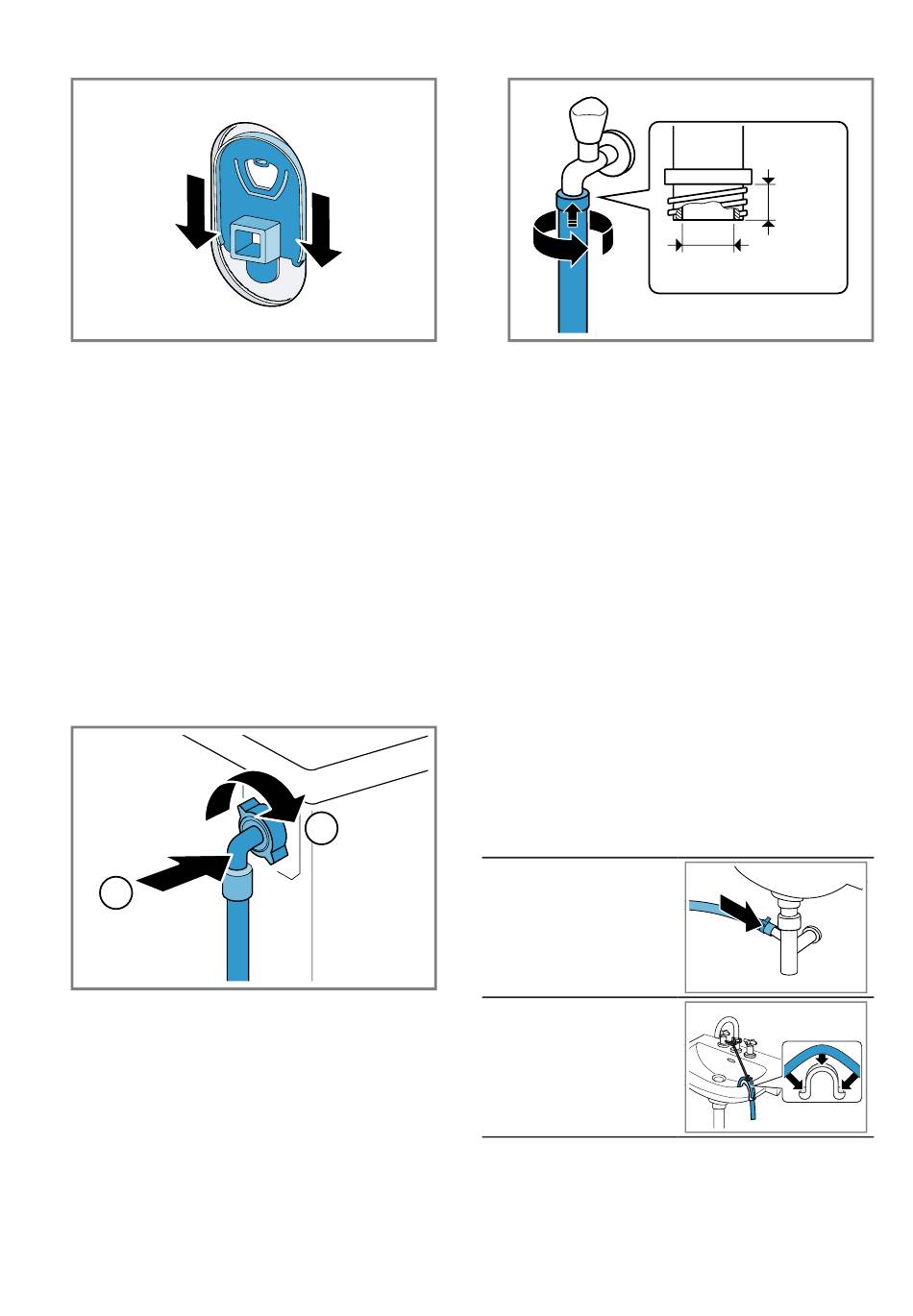

NL Set up and connect
Connect device
Connect your appliance to the mains
electricity, water supply and drainage.
Water supply hose connection
Note Take the information on the
subject → Page 4
and avoid damage
→ Page 12 take care of your device
to use safely.
Connect the water inlet hose to the
1.
appliance.
1
Connect the water inlet hose to the
2.
tap (26.4 mm = 3/4").
18
All manuals and user guides at all-guides.com
2
Open the tap and check that it is
3.
closed.
Water drain connection
The information will help you connect this
appliance to the water outlet.
Note Take the information on the
subject → Page 4
and avoid damage
→ Page 12 take care of your device
to use safely.
LET UP!
When disconnected, the water drain pump
hose is under pressure and can come loose
from the installed connection position.
The water drain sla
▶
aim to get loose b
Drain in a siphon. The
connection position with
a hose clamp (24-40
mm) deposit.
Drain in a
washbasin.
The water drain hose
with a bend
fix and secure.
¾
min.
10mm
min.
17mm
