ECO SERIES
TECHNICAL INFORMATION
1.1 General Information
ECO SERIES is an easy-to-use three to phase industrial inverter MIG/MAG welding machine designed for
heavy conditions. It provides fast and easy use with its user-friendly interface. It offers excellent welding
characteristics with all solid and flux-cored wires. Welding voltage, wire feed speed can be adjusted from the
panel in front of the wire feeder.
Welding voltage and current can be monitored through a digital display. Optimal welding parameters can be
selected from the table located inside the wire feeding unit. There is an integrated gas cylinder platform and
a 24 V electrical socket for the CO2 gas heater. It is cooled by a fan and has protection against overheating.
1.2 Machine Components
1
2
3
4
5
6
www.magmaweld.com
7
8
9
10
11
12
1- Left Display

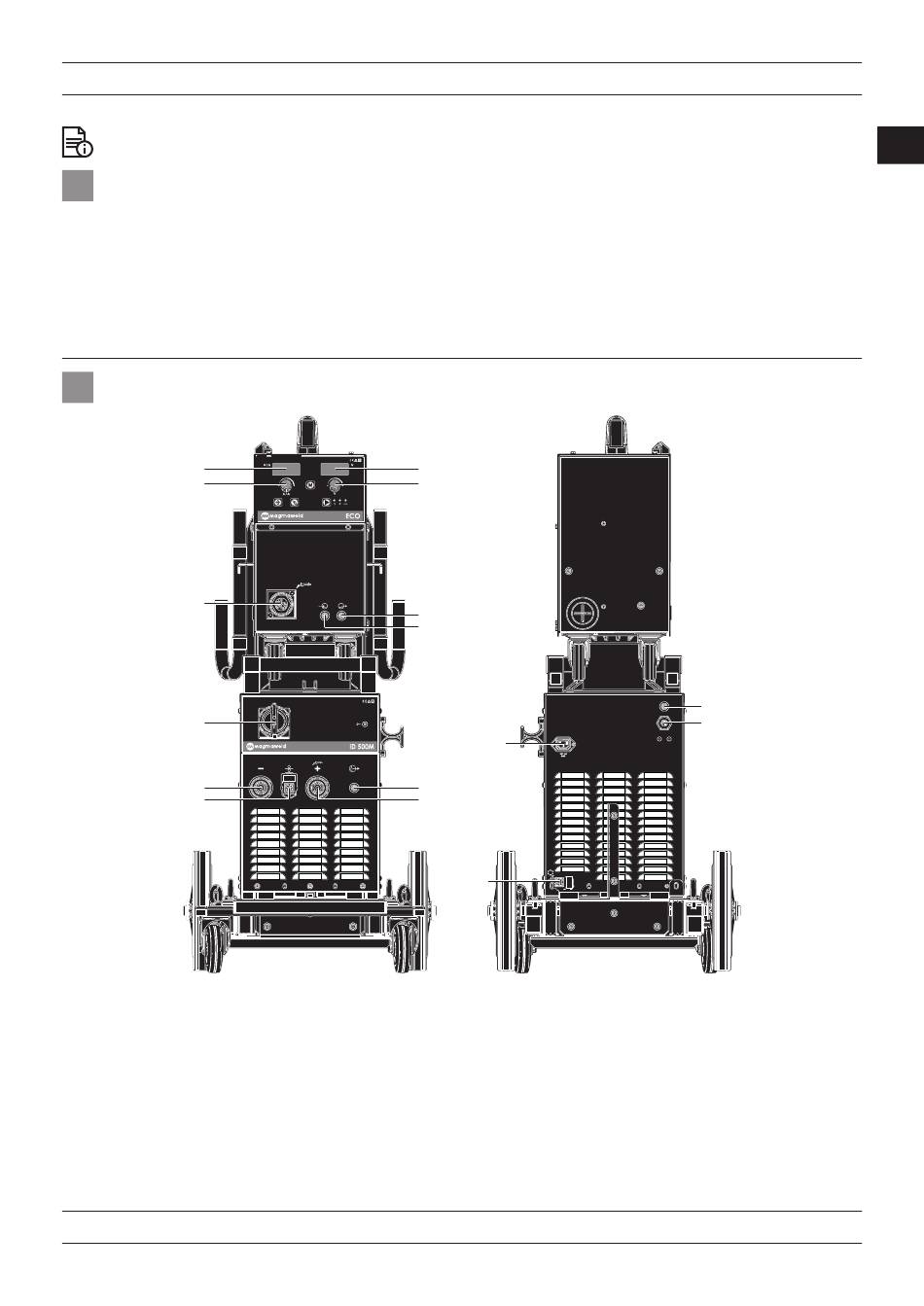

Figure 1 : ID 350 - 500 M ECO Front and Rear View
2- Adjustment Pot
3- Torch Connection
4- On / Off Switch
5- Grounding Connection
6- Data Socket
7- Right Display
8- Adjustment Pot
13
14
9- Torch Cold Water Outlet
10- Torch Hot Water Inlet
11- Gas Output
12- Intermediate Package Torch Connection
13- Heater Socket
14- Cooling System Connection
15- Gas Inlet
16- Mains Cable
Technical Information
11
15
16
USER MANUAL
EN
