Gallagher 3E4347 MB1800i MB2800i Energizer User Manual
INSTALLATION GUIDE

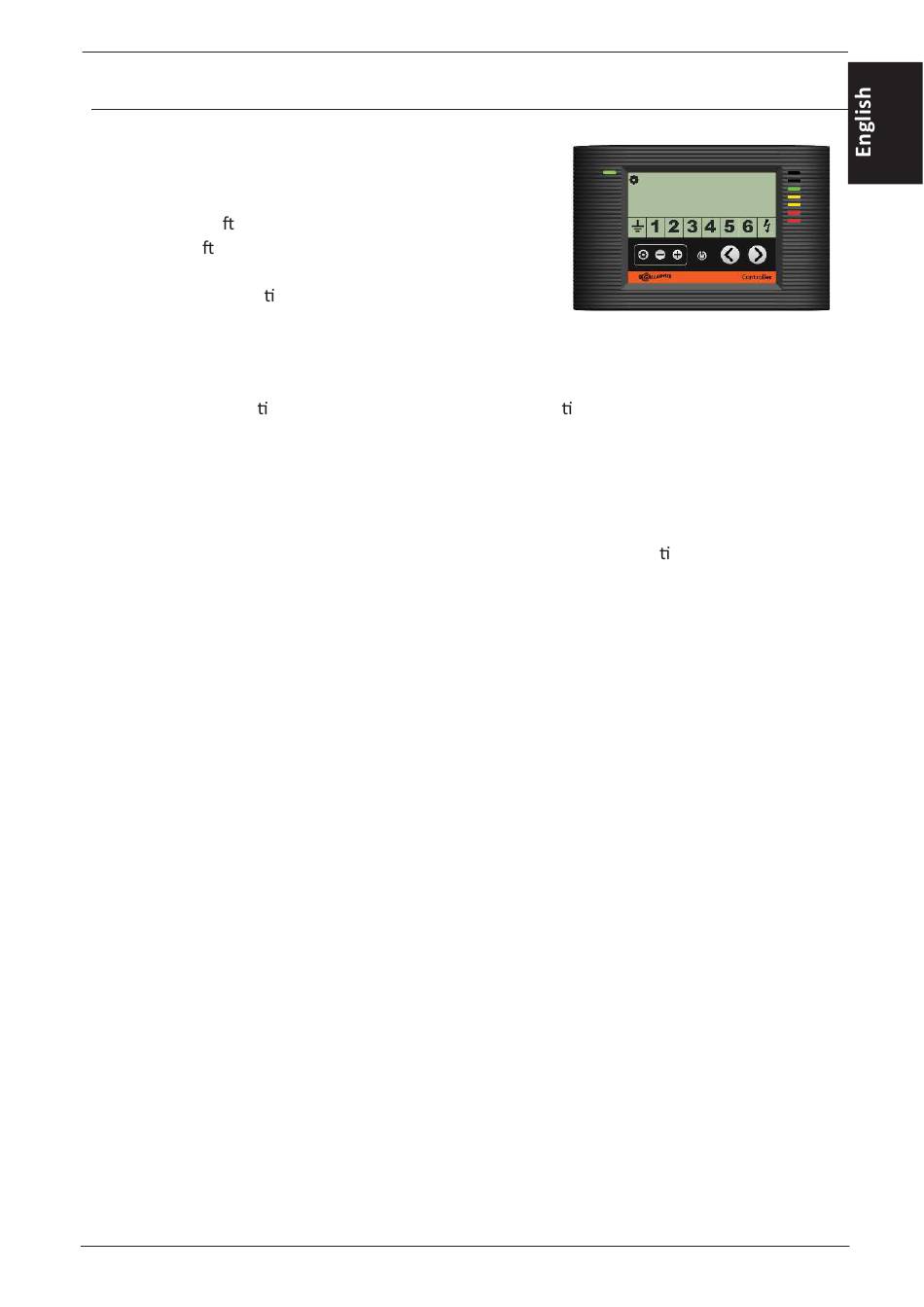

Energizer Controller
Mount the controller on a fl at surface within
3m (10 ) of the energizer, or up to 50m
(160 ) if using an RJ-12 extension cable*. The
controller is suitable for indoor and outdoor
use. Alterna vely, the bracket at the back of
the controller can be extended to allow it to
stand on a desk or bench.
a)
Remove the black bezel surround from the controller allowing access to the 4
moun ng holes in each corner. The 4 moun ng screws are located on the back
surface of the controller.
b)
Using the template on the back page as a drilling guide, drill 4 x 2.5mm (7/64")
holes (A,B,C & D) at least 35mm (1.4") deep.
c)
Fix the screws provided into the wall through the moun ng holes in each
corner. Place the black bezel on the controller.
d)
Route the controller cable to the energizer and plug it into the data connector
on the back cover.
*
To achieve greater distances up to 200m, a lower resistance cable is required
.
7
