Operation
Manual operation
Bus or mains power supply is present.
„ Push switch (1) to position
The manual operation is switched on, the
outputs can be controlled using the operation
buttons (7).
During manual operation, the controller is deac-
tivated via the KNX bus.
Systemlink commissioning:
Depending on the programming, the manual
operation is activated permanently or for a time
period configured via the application software. If
the manual operation is disabled via the appli-
cation software, no activation takes place.
Or:
„ Move switch (1) to position auto.
The manual operation is switched off. Opera-
tion takes place solely via the KNX bus. The
output has the brightness predefined by the bus
controller.
Operating outputs in manual operation
Operation takes place by a short or long press on
the operation button (7) (table 1).
If the integrated LED flashes when pressing the
operation button, no load is connected.
Status
Performance when pressing
the button
Load is switched
Short press on button:
off.
Switch ON the connected load.
LED lights up.
Status LED of
the button (7)
Long press on button:
is off.
Dim up to maximum brightness.
Status LED of button (7) lights
up.
Load is switched
Short press on button:
on.
Switch OFF the connected
load. Status LED of button (7)
Status LED of
goes out.
the button (7)
lights up.
Long press on button:
Changes the current bright-
ness. Dimming takes place in
the opposite direction of the last
dimming operation until maxi-
mum or minimum brightness.
Table 1: manual operation
Information for electricians
Installation and electrical connection
DANGER!
ç
Touching live parts can result in an
electric shock!
An electric shock can be lethal!
Disconnect the connecting cables
before working on the device and
cover all live parts in the area!
CAUTION!
ç
Impermissible heating if the load of
the device is too high!
The device and the connected cables
may get damaged in the connection
area!
Do not exceed the maximum current
carrying capacity!
Observe temperature range. Provide sufficient
cooling.
„ Mount device onto DIN rail in accordance with
DIN EN 60715.
All manuals and user guides at all-guides.com
Connect device
.

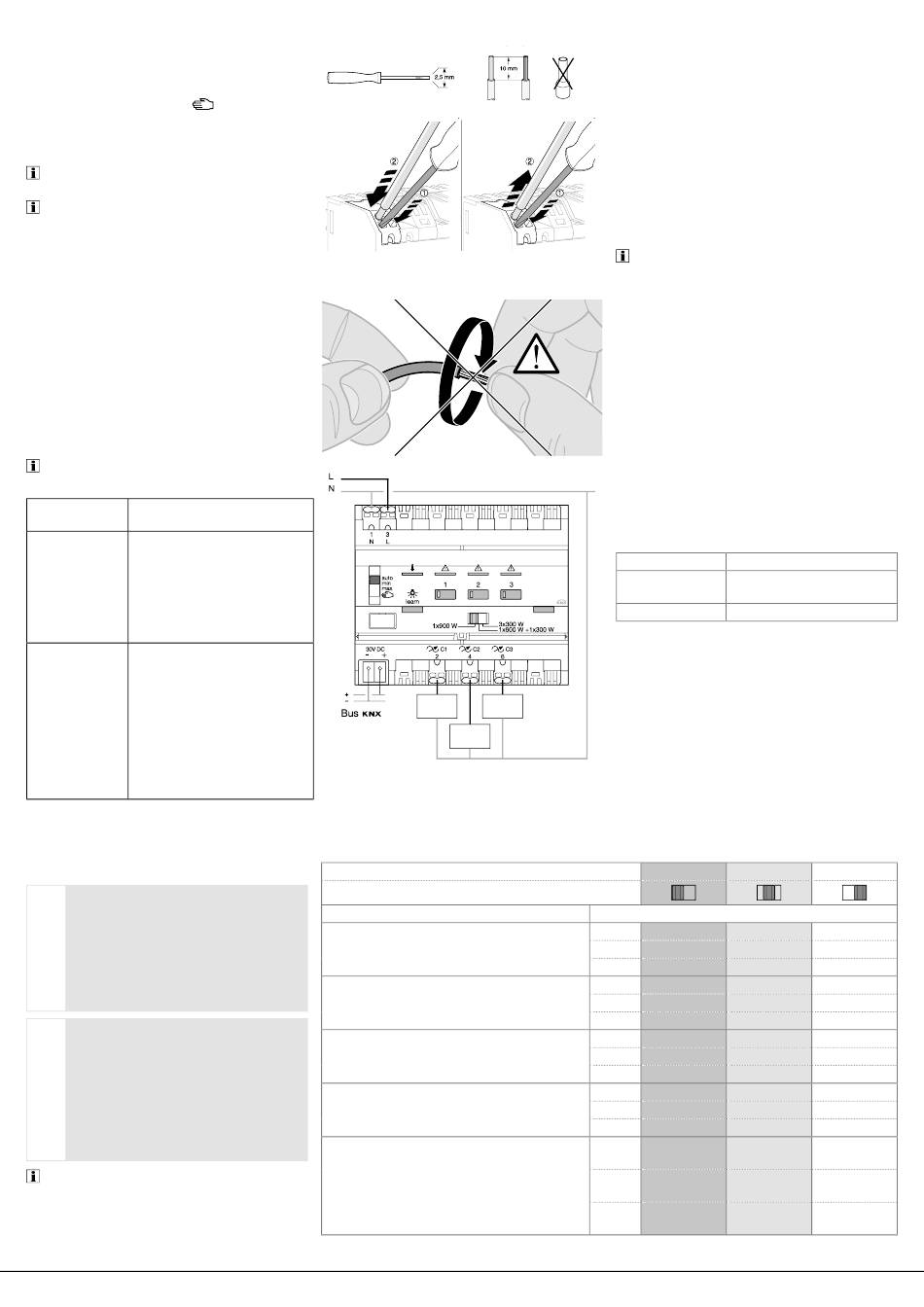

Fig 2: Installation/deinstallation with plug-in termi-
(11) Load
Load type
Incandescent lamps, halogen lamps 230 V
Conventional transformer.
Electronic transformer.
Dimmable energy-saving lamps (CFL)
Dimmable LED lamps
nals
ε
ε
ε
(11)
(11)
(11)
Fig 3: Device connection
Number of outputs
Position of the slider switch (5)
Table 2: Number of outputs and installed load
„ Connect bus cable via connecting terminal (3).
„ Connect load (11) on the lower terminal strip (4)
of the device.
Start-up
Systemlink: loading physical address and
application software
The switch for manual operation (1) is in position
auto.
„ Switch on bus voltage.
„ Press programming button (6).
The button lights up.
If the button does not light up, no bus voltage is
present.
„ Load the physical address into the device.
Status LED of the button goes out.
„ Load application software.
„ Note down the physical address on the device.
Easylink
Information on the system configuration can be
taken from the extensive description of the service
module easylink.
Starting up the device
„ Switch on mains supply.
Functional test
The functionality of the outputs is displayed via the
status LED of the operation buttons (7).
LED status
Meaning of the signal
LED lights up
Load is activated
permanently
LED flashes
No load connected
Selecting the number of outputs using slide
switch
The outputs can be combined variably by adjusting
the slide switch (5) in order to control the higher
loads.
„ Select the number of outputs using the slide
switch (Table 2).
Setting minimum and maximum dimming value
on the device
The device is ready for operation.
„ Setting brightness value
1
2
Maximum load on the output
C1
900 W
600 W
C2
300 W
C3
C1
900 VA
600 VA
C2
300 VA
C3
C1
900 W
600 W
C2
300 W
C3
C1
210 W
120 W
C2
60 W
C3
C1
210 W
120 W
15 lamps
15 lamps
C2
60 W
8 lamps
C3
3
300 W
300 W
300 W
300 VA
300 VA
300 VA
300 W
300 W
300 W
60 W
60 W
60 W
60 W
8 lamps
60 W
8 lamps
60 W
8 lamps
