Replacing the Camera Assy
1.

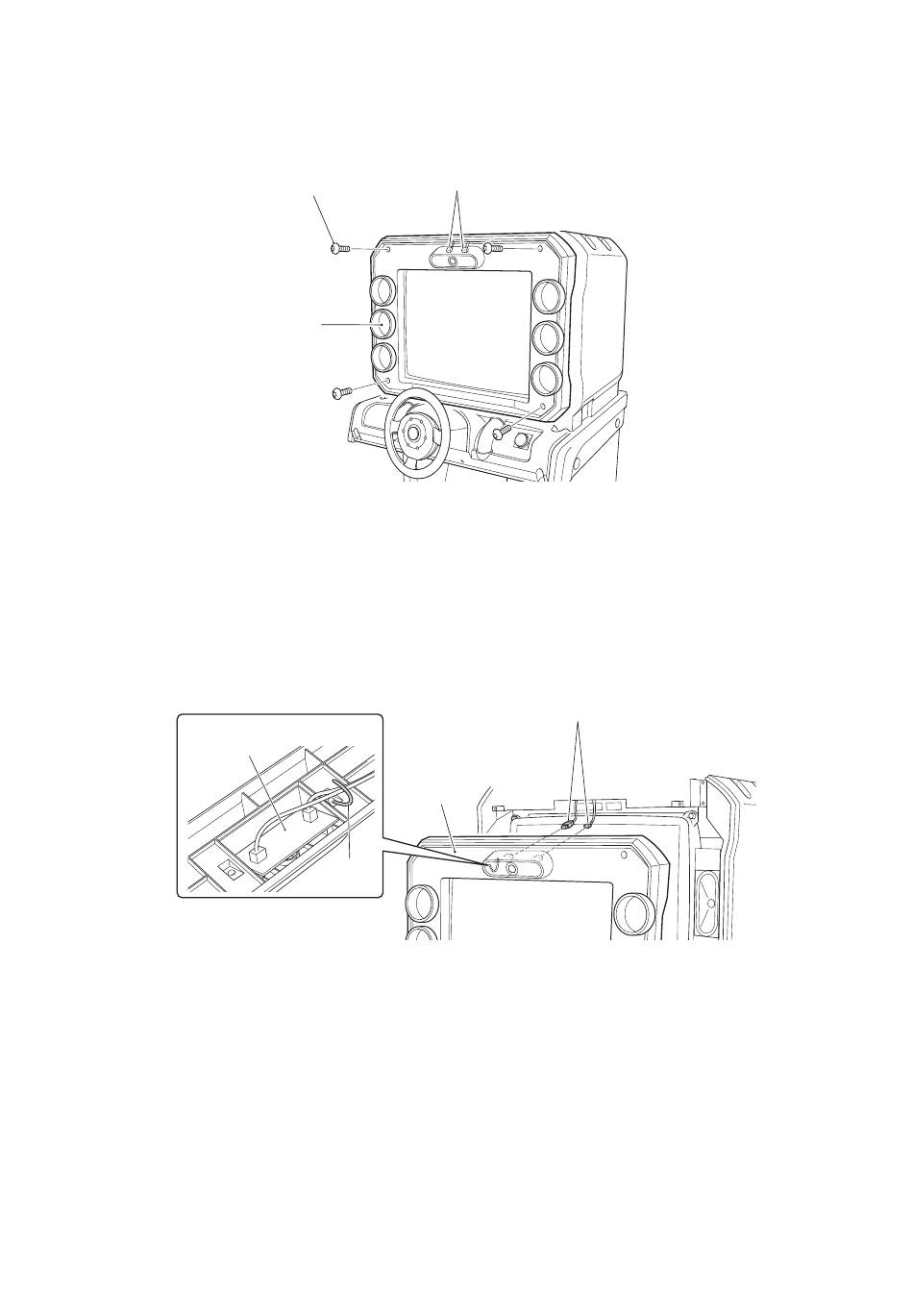

Remove 4off security screw (M5x20) to release the Monitor Surround.
Security screw (M5x20)
Monitor Surround
2.
Remove the Monitor Surround only sufficient to disconnect the connectors.
3.
Disconnect the connectors.
Note: Undo the cable clamp when removing the connectors.
Camera Assy
Camera PCB Assy
Connectors
Cable Clamp
Cable Clamp
Page 68
Connectors
