Mounting
Before mounting this product, read the

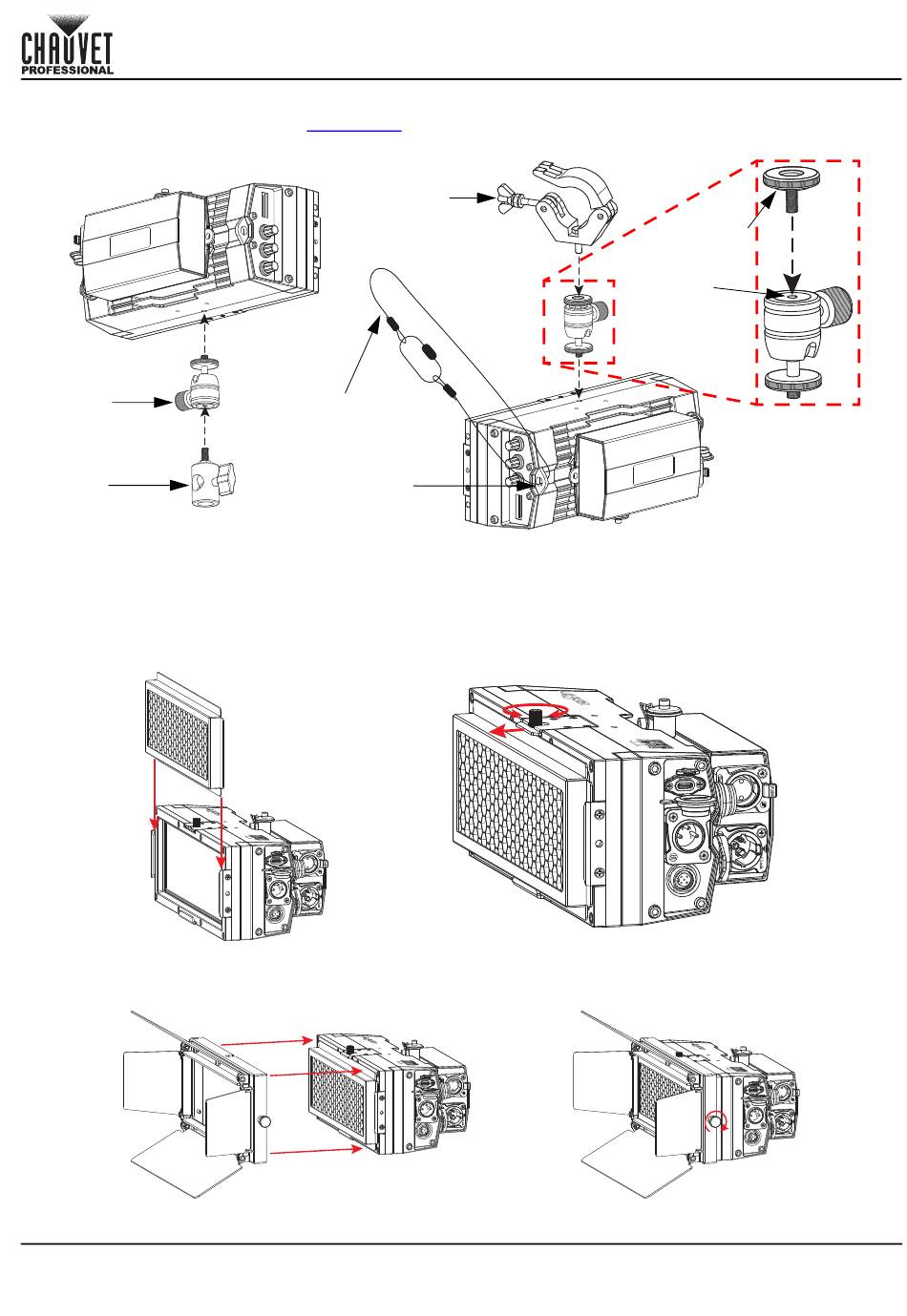

Mounting Diagram

Ball-head
mount
Baby pin
receiver

Accessories

The onAir Panel Min IP has an accessory slot for a filter or a honeycomb (sold separately). The optional barndoor (sold
separately) fits neatly over the front of the product.
To install a filter or the honeycomb:
1. Slide the filter or honeycomb into the accessory slot.
2. Loosen the thumbscrew on top of the product and slide the panel out to secure the filter or honeycomb.
3. Tighten the thumbscrew.
To install the barndoor:
1. Place the barndoor frame around the front of the product.
2. Tighten the knob to secure the barndoor in place.
onAir Panel Min IP QRG Rev. 1
QUICK REFERENCE GUIDE
Safety
Notes.
Mounting
clamp
Safety cable
Secure the safety
cable using the
loop on the back
of the product
12 mm clamp
bolt adapter
¼-20
threaded hole
EN
