Assembly instructions
1
Overview
10
9
Katherm ID at a glance
2
Safety
This section provides an overview of all important safety aspects for protecting personnel. In ad-
dition to the safety notes in this and the more detailed instruction in accordance with the QR
Code, the occupational health and safety and environmental protection regulations applicable to
the unit's field of application, as well as the notes in accordance with EN60335-1, must be ob-
served.
2.1
Correct use
The devices are used for heating and/or cooling in all areas of buildings where heating is re-
quired in winter and cooling is required in summer due to high solar incidence through glass
fronts. The device must be connected to the on-site heating/cooling/ventilation system and the
power supply within the room to be treated. The operating and application limits in chapter
2.2 [} 4] must be observed.
Intended use of the unit also includes adherence to these instructions.
Any use beyond or other than the stated intended use is considered as misuse.
Any modification to the unit or use of non-original spare parts will cause the expiry of the war-
ranty and will invalidate the manufacturer's liability.
SAP 1583398 07/24
1
2
4
7
8
3
5
6
1
2
3
4
5
6
7
8
9
10
2.2
Limits of operation and use
Limits of operation
Min./max. water temperature
°C
Min./max. air intake temper-
°C
ature
Min./max. air humidity
%
Min. operating pressure
bar/kPa
Max. operating pressure
bar/kPa
Min./max. glycol percentage
%
Katherm ID
Assembly instructions
Kampmann GmbH & Co. KG
Friedrich-Ebert-Str. 128-130
49811 Lingen (Ems)
T: +49591/7108 0
E: info@kampmann.de
www.kampmann.de

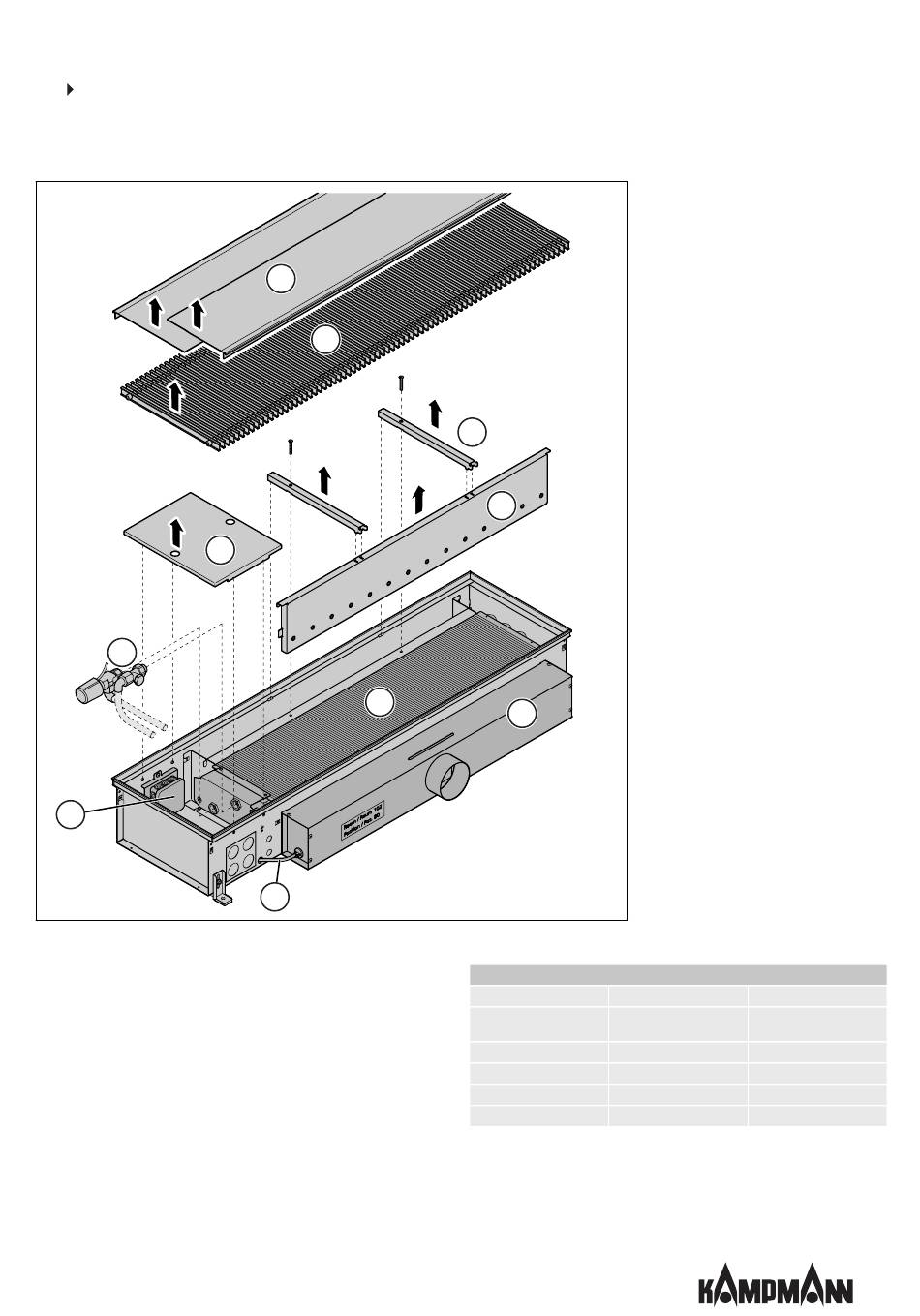

Protective grille cover
Roll-up or linear grille
Cross bracing
Cover plate for connection area
Nozzle panel
Compressed air plenum
Convector
Pressure test hose
Terminal box for actuator
Valve(s) and return connector(s)
15-90
15-40
15-50
-
10/1000
-
4
