What is Included
•
Ovation Reve F-3
•
Seetronic Powerkon IP65 power cable
•
Gel frame
AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
Connection
AC Live
AC Neutral
AC Ground
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.
Power Linking
It is possible to power link Ovation Reve F-3 products. See the table below for the current draw at each voltage and frequency:
Current Draw
Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.
Mounting
Before mounting this product, read the
weight of the product. For the Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

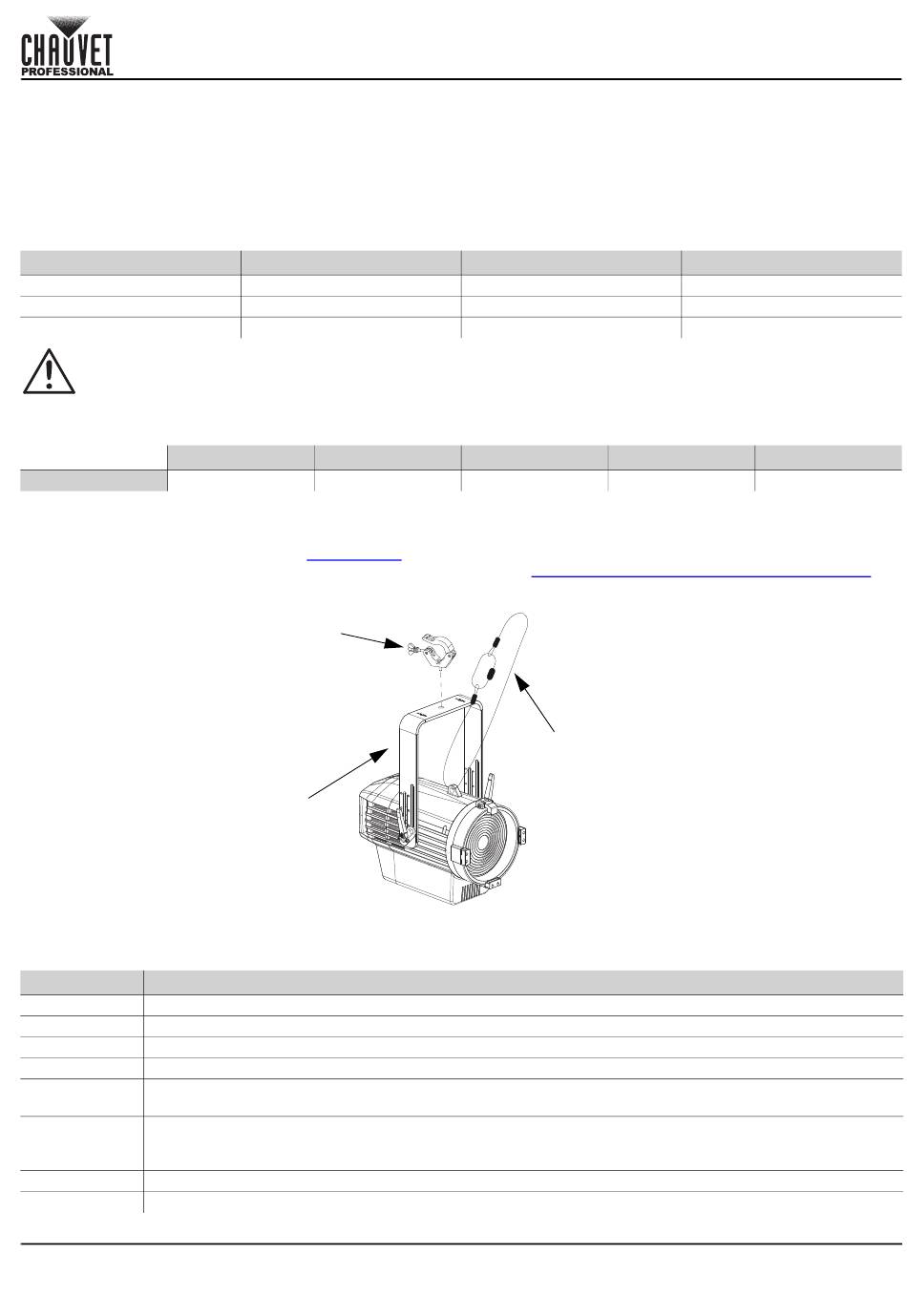

Mounting Diagram
Mounting bracket
Control Panel Description
Button
Function
<MENU>
Exits from the current menu or function
<ENTER>
Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>
Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>
Navigates downwards through the menu list or decreases the numeric value when in a function
Sets fixture into Focus Mode, which takes the unit to full power for east focusing without changing any
<Focus Mode>
other fixture settings. Press again to release from Focus Mode.
<Color
Temperature &
Push twice, then turn to select the color temperature
Hue>
<Dimmer>
Push twice, then turn to increase or decrease the dimmer
<Zoom>
Push twice, then turn to increase or decrease the zoom
Ovation Reve F-3 QRG Rev. 4
QUICK REFERENCE GUIDE
Wire (U.S.)
Black
White
Green/Yellow
100 V, 60 Hz
120 V, 60 Hz
5.43 A
4.39 A
Safety
Notes. Make sure the mounting clamps are capable of supporting the
Mounting clamp

Overhead mounting

•
140 mm Omega bracket with mounting hardware
•
Quick Reference Guide
Wire (Europe)
Brown
Blue
Green/Yellow
208 V, 60 Hz
2.52 A
Safety cable
Screw Color
Yellow/Brass
Silver
Green
230 V, 50 Hz
240 V, 50 Hz
2.22 A
2.13 A
EN
2
