AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.
AC Plug
Connection
AC Live
AC Neutral
AC Ground
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely
disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link Ovation Rêve E-3 products. See the table below for the current draw at each voltage and frequency:
Current Draw
Never exceed 12A on a single circuit. Power-linking cables can be purchased separately.
Mounting
Before mounting this product, read the
weight of the product. For the Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

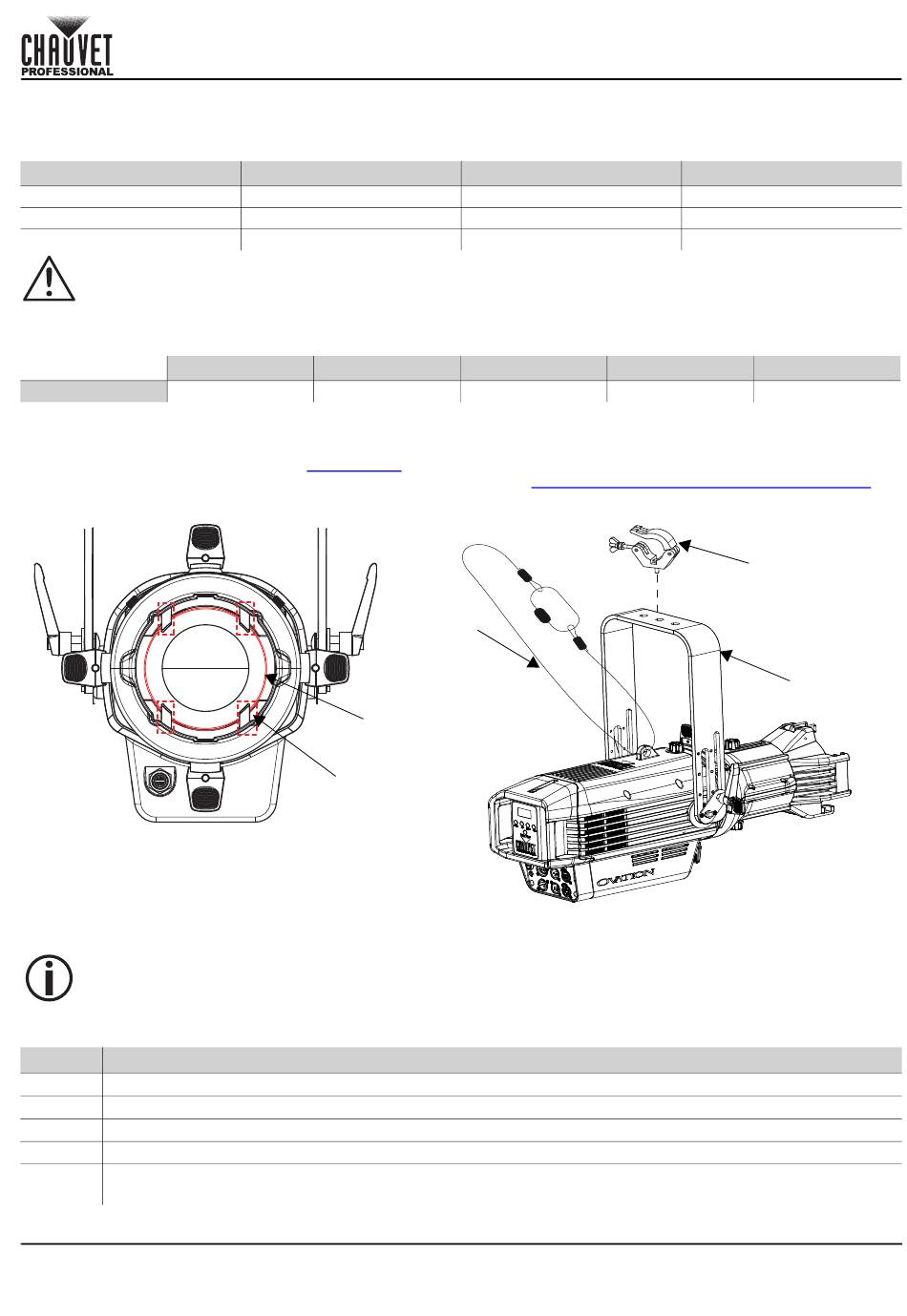

Mounting Diagram
*To insert the soft focus filter, gently squeeze and
slide the filter into the slot under the four filter holders.
To remove, gently squeeze and slide the filter out
from under the filter holders.
Do not use the soft-focus filter with gobos or large shutter cuts. Doing so will cause excessive heat
reflection onto the filter, causing it to melt and warp. This filter is intended to eliminate LED imaging
(skittles) when directly viewing the lens.
Control Panel Description
Button
Function
<MENU> Exits from the current menu or function
<ENTER> Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>
Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN> Navigates downwards through the menu list or decreases the numeric value when in a function
Sets fixture into Focus Mode, which takes the unit to full power for easy focusing without changing any other
<FOCUS>
fixture settings. Press again to release from Focus Mode.
Ovation Rêve E-3 QRG Rev. 2
QUICK REFERENCE GUIDE
Wire (U.S.)
Black
White
Green/Yellow
100 V, 60 Hz
120 V, 60 Hz
3.68 A
3.04 A
Safety
Notes. Make sure the mounting clamps are capable of supporting the
Filter holder (x4)
Wire (Europe)
Green/Yellow
208 V, 60 Hz
1.76 A
Safety cable
Soft-focus filter
Brown
Blue
230 V, 50 Hz
1.59 A
* Lens tubes sold separately
EN
Screw Color
Yellow/Brass
Silver
Green
240 V, 60 Hz
1.52 A
Mounting clamp
Mounting bracket
2
