fi le name:SHADA Main Brands - 2017051001 - Two different sizes for Packing artwork.indd - - Printfi le created on: Print fi le created on: 20170828 10:45 - Design: WAPC
Art Nr.
800510
18W
Power
230V AC
Input voltage
1.050
LED Lumen output
3.000K
Color temp.
- 5,8 GHZ
Microwave Sensor
30.000
Lifespan (h)
Ø330 x 95mm
Dimensions
SPECIFICATIONS SENSOR:
Operating voltage
220-240Vac, 50Hz
Rated load
400W(inductive), 800W (resistive)
HF system
5.8GHz±75MHz, ISM wave band
Power consumption
≤0.5W
Transmitting power
<0.5mW
Detection range
ca. 1,5m - 15m
Motion detection
0.5~3m/s
Detection angle
150°(wall installation) / 360°(ceiling installation)
Degree of protection
IP20
Operation temperature
-20° / +60°C
Hold time
5s/30s/90s/3min/20min/30min
Detec Range
10%/25%/50%/75%/100%
Daylight sensor
2lux / 10lux / 25lux / 50lux / Disabled
Life time
50.000 hours
General safety instructions
Please read the operating instructions for the LED
ceiling light before use. The operating instructions
are part of the product. They contain important
notes on start-up and handling of the device. Al-
ways keep the enclosed operating instructions so
as to be able to look up information. They must
be enclosed when passing the device on to third
parties.
Safety precautions
The user must observe the safety notes and
warnings in order to maintain this status and to
ensure safe operation. Please read the operating
instructions before start up.
Avoid contact with high temperatures or vibra-
tions, this may cause damage to the ceiling light.
Do not immerse the enclosure into water.
Never attempt to open the device other than de-
Sensor settings:
DIP switch: ON = 1 / OFF = 0
Time setting:
Distance setting:
Light sensitivity setting:
WARNING!
If there is metal material within the detection field of the
sensor, the device may not work, or have only limited
functionality!
800510-MAN-ML-2017082801-SHA.indd 3
scribed in this manual. The LED ceiling light cannot
be repaired; this part must be immediately dispo-
sed in case of a defect. Ensure sufficient ventilati-
on of the device. Never cover it during operation.
Do not install in reach of children or animals.
Any other use of the device than described above
can damage the product or endanger the user due
to e. g. short-circuits, fire or an electric shock. The
entire product may not be modified or adapted.
Don't touch the ceiling light while in use or after
use until it's cooled down. The ceiling light must
have an earthed connection for safe operation.
These safety notes must be observed in all cases!
Any warranty claim is void in the case of damages
caused by non-observance of these operating
instructions. We are not liable for consequential
damages or for damages to property or persons
caused by non-observance of the safety notes and
improper operation of the device.
Detection Area: 100% = 16m x 6m
Detection range setting (sensitivity)
8m
8m
H<6M
1
2
3
I
100%
75%
II
50%
III
1-2-3
25%
IV
10%
V

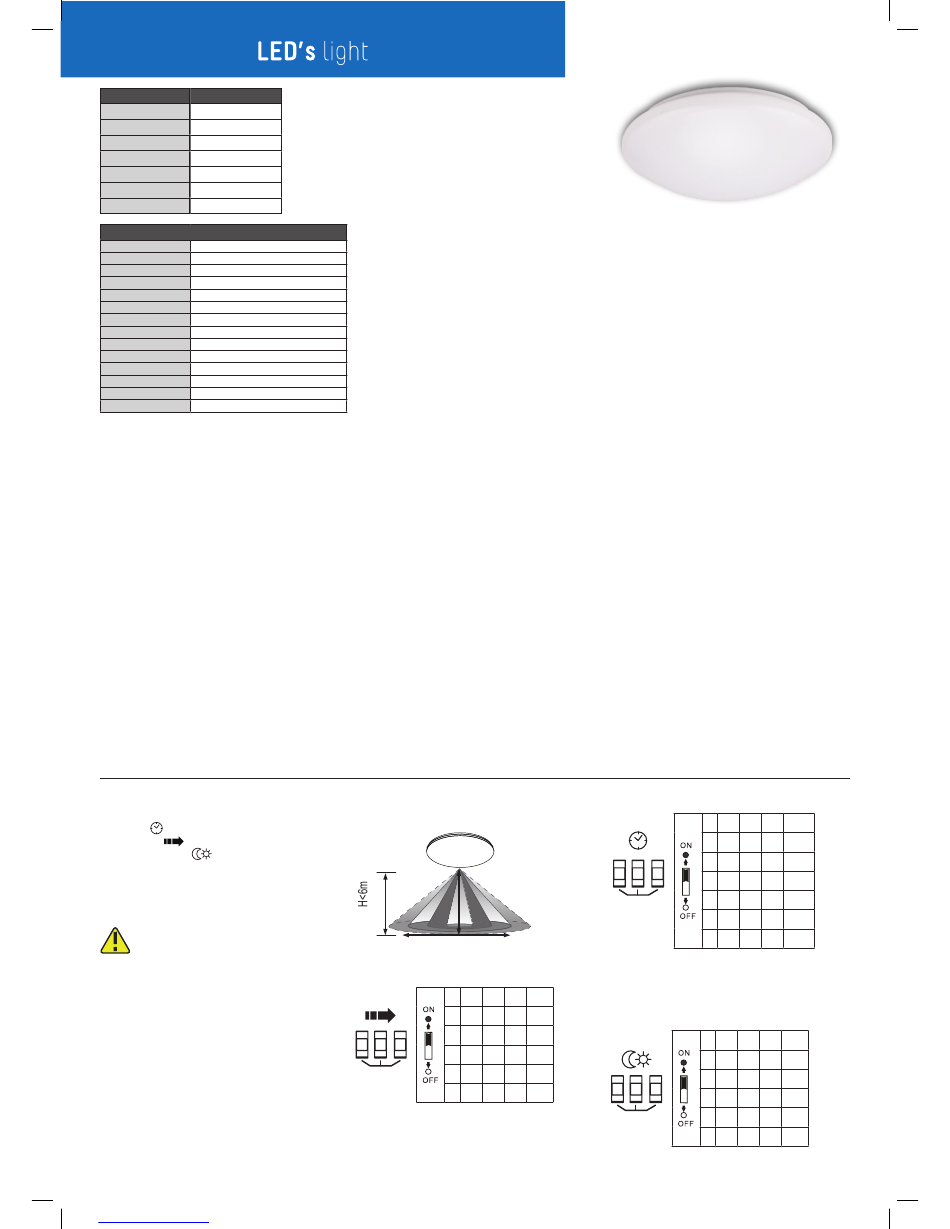

Installation and Operating Manual
Safe operation is not possible anymore, if:
- the LED ceiling light has visible damages,
- the LED ceiling light does not work anymore
Installation instructions →p.01
Time setting
duration of light after detection
I
II
III
4-5-6
IV
V
Light sensitivity activation
Ø
The lower lux is programmed, the darker it must be before the
ceiling light switches on.
I
II
III
7-8-9
IV
V
4
5
6
5s
30s
90s
3 min
20min.
30min.
7
8
9
2 lux
10 lux
25 lux
50 lux
Disable
2017-08-28 10:45:50
