INSTALLATION
1
Fig.10

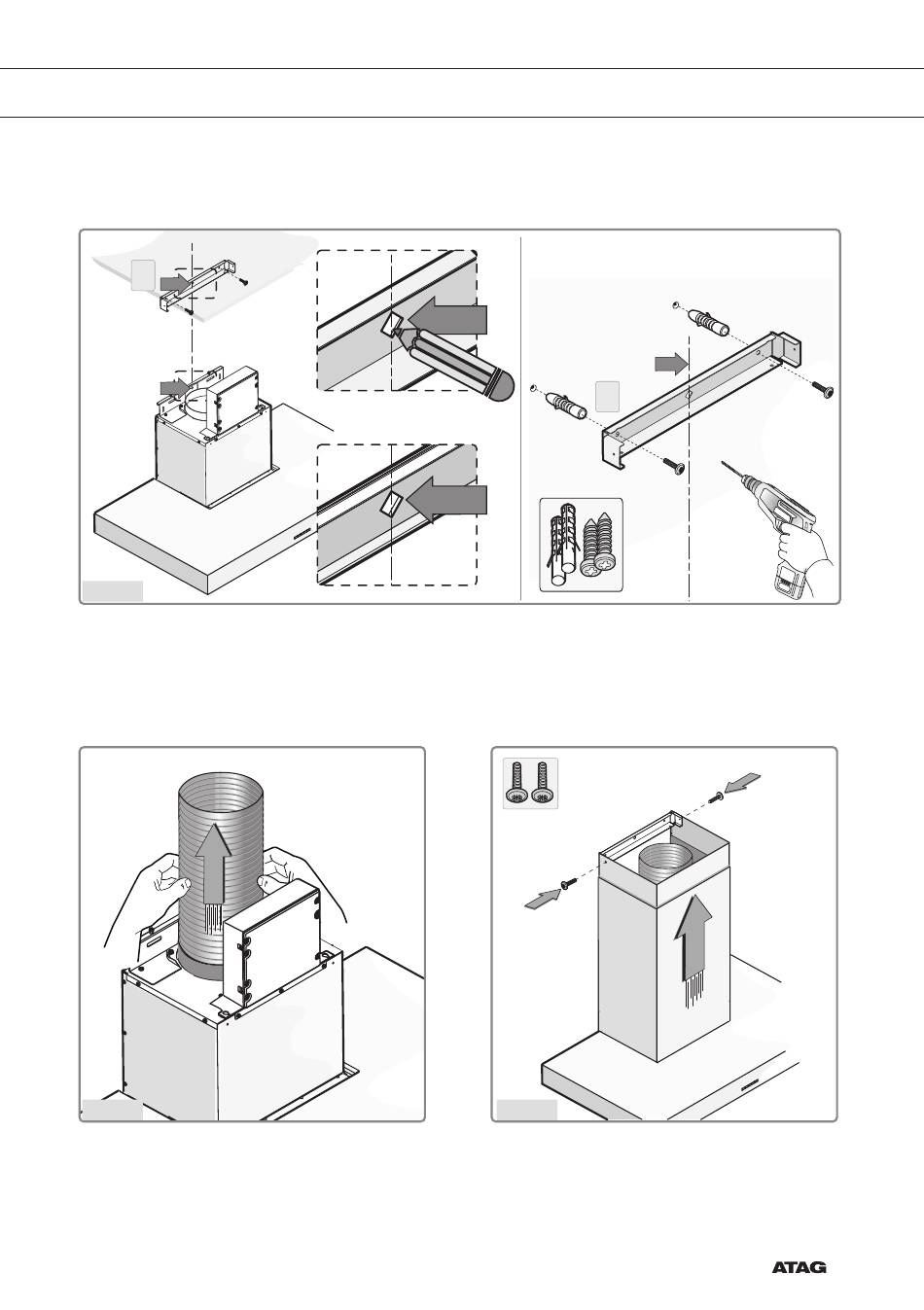

- Position the bracket referring to the sizes in Figure 1 and secure this with the supplied screws and
plugs (Fig.10).
Fig.11
- Connect the fl ange to the air outlet using a
tube (Fig.11).
2
Fig.12
- Place the top shaft in the bottom shaft and
put this on the hood's casing. Slide the top
shaft against the bracket and secure this
with the two screws (Fig.12).
GB 21
