user's instructions

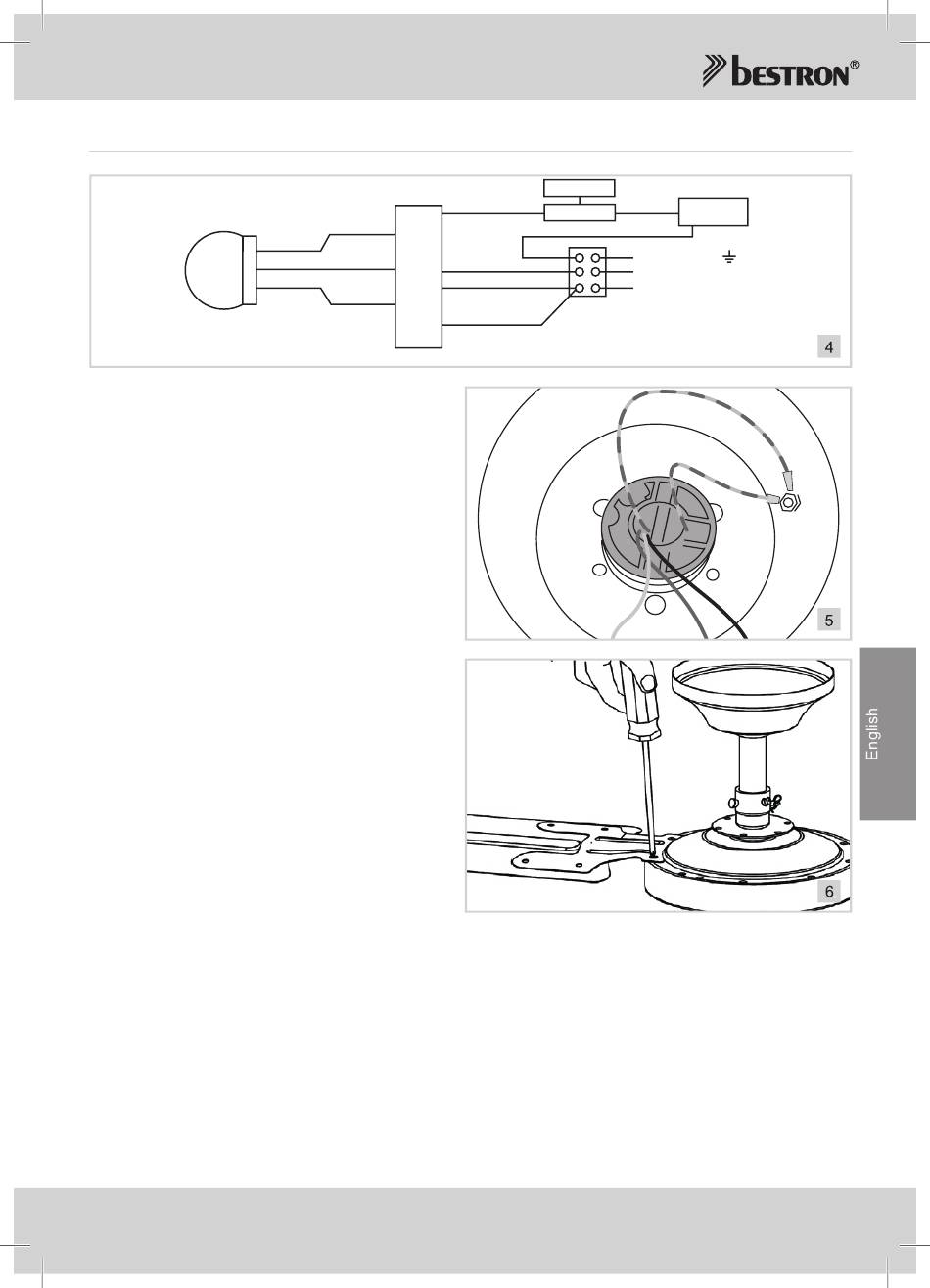

MontAGe - connection
7. Connect the yellow-green wire, which comes
from the motor, to the earth screw on the inside
of the canopy (See figure 5).
8. Connect the yellow-green wire, which comes
from the rod, also to the earth screw on the
inside of the canopy (See figure 5).
9. Remove the 2 screws. Insert the blades into
the appropriate slots and festen them with
the screws. Be sure that all the blades are
tightened with three screws (See Figure 6).
All manuals and user guides at all-guides.com
Yellow/Green
Blue
Black
Motor
Down rod
Yellow/
Yellow/Green
Green
Canopy
Yellow/Green
Blue
Brown
Black
27
Mounting
Plate
Earth
Neutral
N
Line
L
