Cool setting
1. Press the Cool button
repeatedly to set the required ambient
temperature:
◦ 28 °C, the display will show 1 cool indi
cator
(Figure
◦ 25 °C, the display will show 2 cool indi
cators
(Figure
◦ 22 °C, the display will show 3 cool indi
cators
(Figure
◦ <22 °C, the display will show 6 cool indi
cators
(Figure
Timer
At the end of the set countdown timer time the device will automatically switch off.
1. Press the Timer button
repeatedly to start the countdown timer
of:
◦ 0.5 hour: the 0.5 hr indicator
(Figure
31, pos. 2) will light up;
◦ 1 hour: the 1 hr indicator
(Figure
31, pos. 3) will light up;
◦ 2 hours: the 2 hr indicator
(Figure
31, pos. 4) will light up;
◦ 4 hours: the 4 hr indicator
(Figure
31, pos. 5) will light up;
◦ 7.5 hours: the 0.5 hr indicator, the 1 hr
indicator, the 2 hr indicator and the 4 hr
indicator
(Figure
will light up.
Drainage of condensed water
Automatic
As soon as the condensate in the collecting tray of the indoor part has reached a certain height
(0.8 liter), the pump automatically leads it to the condenser in the outdoor part. In the outdoor
unit, the water is partially evaporated with the discharge of the warm air. The remaining water is
drained through the drain pipe at the bottom of the outdoor unit.
Manual
In the event of a malfunction of the automatic drainage, you will hear an alarm for 20 seconds
and the device will switch off. The water has to be removed manually.
30
(Figure
30, pos. 1)
30, pos. 4).
30, pos. 3).
30, pos. 2).
30, pos. 2, 3 and 4).
(Figure
31, pos. 1)
31, pos. 2, 3, 4 and 5)

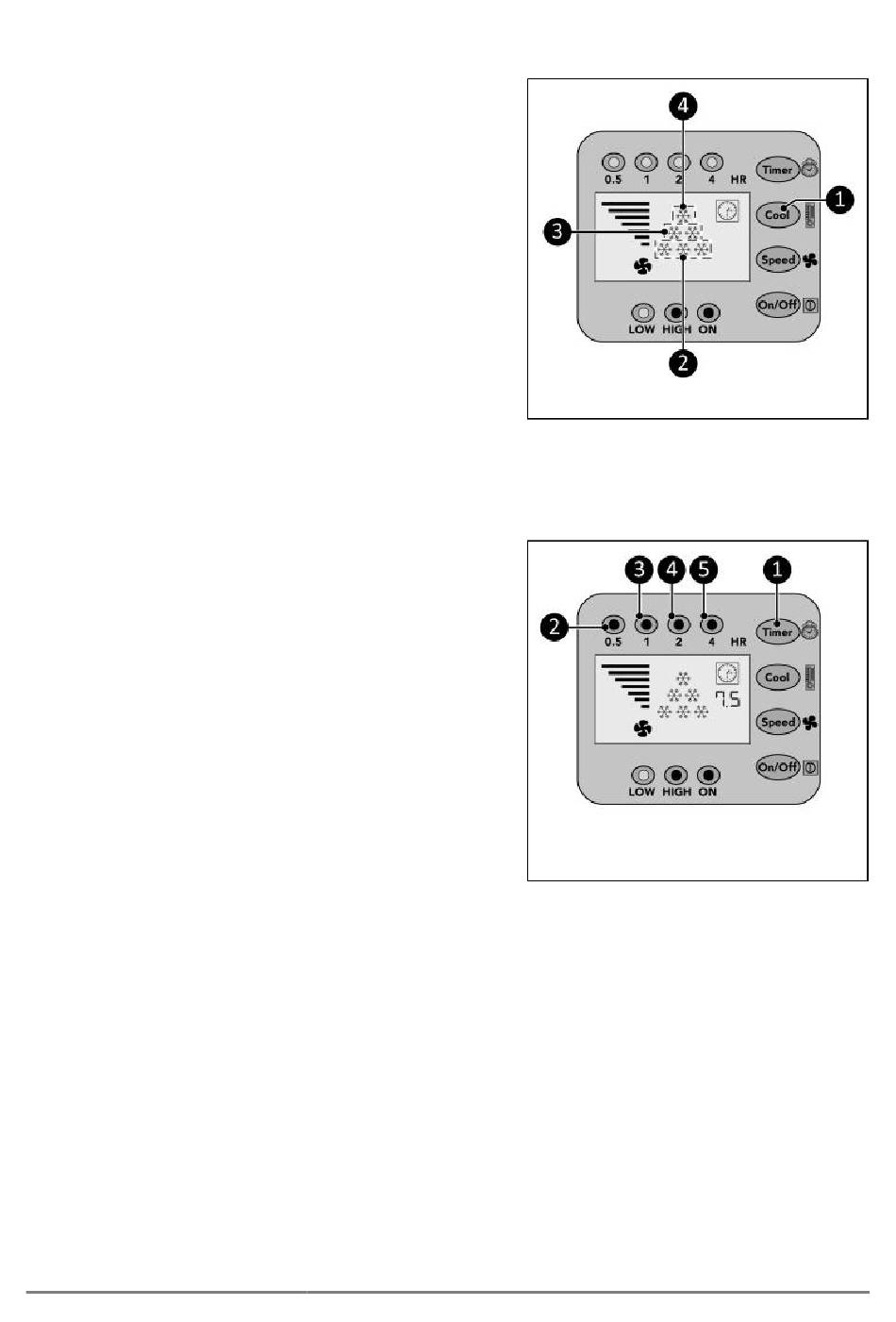

Figure 30.
Figure 31.
