34. Stop the engine and disconnect the spark plug wire
and inspect mower if:
(a) The mower begins to vibrate abnormally; or
(b) After striking a foreign object.
35. Repair any damage before continuing further opera-
tion of the mower.
36. Stop the engine and disconnect the spark plug wire
before clearing blockages, checking or working on
the mower.
37. Never pick up or carry a mower when it is operating.
38. Where fitted, turn fuel tap off at the conclusion of
mowing.
39. When transporting in a vehicle, secure the mower to
prevent movement, roll-over, fuel spillage, and
mower damage.

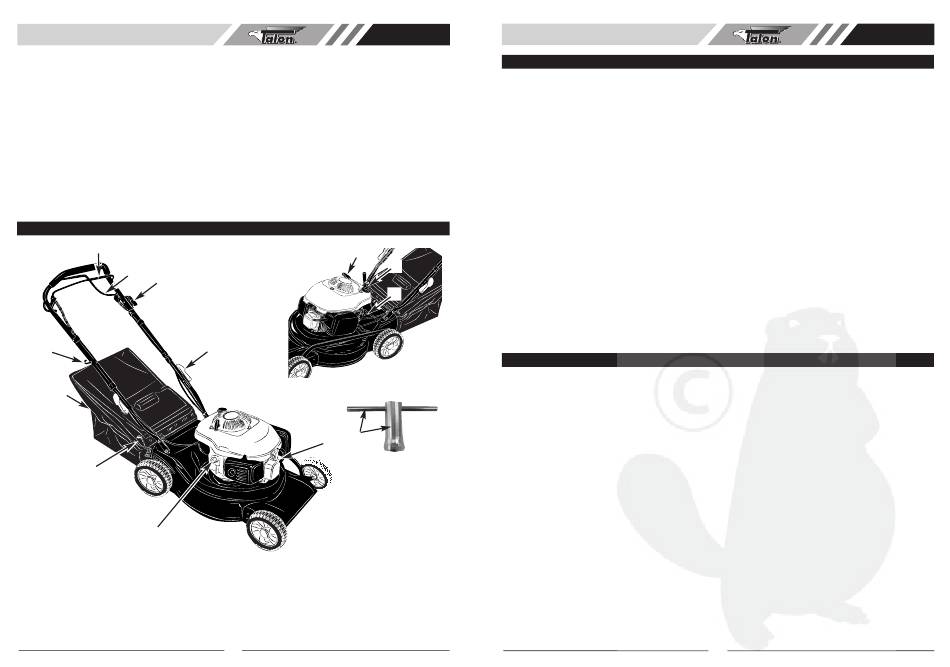

GENERAL INFORMATION
2
1
8
12
4
5
10
1.
Self-drive control handle
6.
Fuel cap
(AM3053 only)
7.
Fuel Valve
2.
Brake control handle
8.
Choke Lever
3.
Starter handle
9.
Spark Plug
4.
Grass bag
10. Oil Cap
5.
Height adjusting lever
11. Locking Lever
All manuals and user guides at all-guides.com
40. Keep all nuts, bolts and screws tight to be sure the
equipment is in a safe working condition.
41. Never modify the mower in any way. Use only
replacement parts made and guaranteed by the orig-
inal manufacturer of your mower.
42. Keep all safety devices (guards and switches) in
place and working.
43. Keep the engine free of grass, leaves or excessive
grease. These can be a fire hazard.
44. Store the mower in a well ventilated room away from
naked flames such as may be found in hot water
heaters.
45. Walk, Never Run.
3
11
A
9
12. Rope Guide
Hardware tool included:
A:
Spark plug wrench
2
GB
Model No.
Hose Power
Self Propel
Eingine Displacement . . . . . . . . . . . . . . . 160cm
Blade Width
Speed at max. Power
Fuel Tank Capacity
Oil Tank Capacity
Net Weight (without grass catcher) . . . . . . 31.8 kg . . . . . . . . . 31.9 kg . . . . . . . . . 30.1 kg . . . . . . . . . . 30.2 kg
Net Weight (with grass catcher). . . . . . . . . 33.5 kg . . . . . . . . . 33.6 kg . . . . . . . . . 31.8 kg . . . . . . . . . . 31.9 kg
Hight Adjstment
6
Noise and Vibration Data
7
Sound pressure level
Wear Ear Protection When
Sound pressure is over . . . . . . . . . . . . . . . 85dbB(A) . . . . . . . 85dB(A) . . . . . . . . . 85dbB(A) . . . . . . . . 85dB(A)
Vibration
Fuel Consumption
Model No.
Hose Power
Self Propel
Eingine Displacement . . . . . . . . . . . . . . . 160cm
Blade Width
Speed at max. Power
Fuel Tank Capacity
Oil Tank Capacity
Net Weight (without grass catcher) . . . . . . 35.3 kg . . . . . . . . . 35.4 kg . . . . . . . . . 33.6 kg . . . . . . . . . . 33.7 kg
Net Weight (with grass catcher). . . . . . . . . 37.0 kg . . . . . . . . . 37.1 kg . . . . . . . . . 35.3 kg . . . . . . . . . . 35.4 kg
Hight Adjstment
Noise and Vibration Data
Sound pressure level
Wear Ear Protection When
Sound pressure is over . . . . . . . . . . . . . . . 85dbB(A) . . . . . . . 85dB(A) . . . . . . . . . 85dbB(A) . . . . . . . . 85dB(A)
Vibration
Fuel Consumption
SPECIFICATIONS
. . . . . . . . . . . . . . . AM3052C1 . . . . . . AM3052C2 . . . . . . AM3052D1 . . . . . . . AM3052D2
. . . . . . . . . . . . . . . 4.0kW . . . . . . . . . . 4.0kW . . . . . . . . . . 4.0kW . . . . . . . . . . . 4.0kW
. . . . . . . . . . . . . . . N. . . . . . . . . . . . . . N . . . . . . . . . . . . . . N . . . . . . . . . . . . . . . N
3
. . . . . . . . . 160cm
3
. . . . . . . . . 160cm
. . . . . . . . . . . . . . . 18" (450mm). . . . . 19" (480mm) . . . . . 18" (450mm). . . . . . 19" (480mm)
. . . . . . . . . . . . . . . 2500 min
-1
. . . . . . . 2800 min
-1
. . . . . . . . . . . . . . . 900ml . . . . . . . . . . 900ml . . . . . . . . . . 900ml . . . . . . . . . . . 900ml
. . . . . . . . . . . . . . . 500ml . . . . . . . . . . 500ml . . . . . . . . . . 500ml . . . . . . . . . . . 500ml
Level 1 . . . . . . . . . 25.4mm . . . . . . . . 25.4mm . . . . . . . . . 25.4mm. . . . . . . . . . 25.4mm
Level 2 . . . . . . . . . 29.2mm . . . . . . . . 29.2mm . . . . . . . . . 32.9mm. . . . . . . . . . 32.9mm
Level 3 . . . . . . . . . 33.3mm . . . . . . . . 33.3mm . . . . . . . . . 41.6mm. . . . . . . . . . 41.6mm
Level 4 . . . . . . . . . 37.6mm . . . . . . . . 37.6mm . . . . . . . . . 50.8mm. . . . . . . . . . 50.8mm
Level 5 . . . . . . . . . 42.1mm . . . . . . . . 42.1mm . . . . . . . . . 60.0mm. . . . . . . . . . 60.0mm
Level 6 . . . . . . . . . 46.8mm . . . . . . . . 46.8mm . . . . . . . . . 68.7mm. . . . . . . . . . 68.7mm
Level 7 . . . . . . . . . 51.6mm . . . . . . . . 51.6mm . . . . . . . . . 76.2mm. . . . . . . . . . 76.2mm
Level 8 . . . . . . . . . 56.6mm . . . . . . . . 56.6mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 9 . . . . . . . . . 61.5mm . . . . . . . . 61.5mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 10 . . . . . . . . 66.5mm . . . . . . . . 66.5mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 11. . . . . . . . . 71.5mm . . . . . . . . 71.5mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 12 . . . . . . . . 76.2mm . . . . . . . . 76.2mm . . . . . . . . . N . . . . . . . . . . . . . . . N
. . . . . . . . . . . . . . . 94dB(A) . . . . . . . . 95dB(A) . . . . . . . . . 94dB(A) . . . . . . . . . 95dB(A)
. . . . . . . . . . . . . . . 11.34m/s
2
. . . . . . . 11.34m/s
2
. . . . . . . . 11.34m/s
. . . . . . . . . . . . . . . 1.5kg/h . . . . . . . . . 1.5kg/h . . . . . . . . . 1.5kg/h . . . . . . . . . . 1.5kg/h
SPECIFICATIONS
. . . . . . . . . . . . . . . AM3053C1 . . . . . . AM3053C2 . . . . . . AM3053D1 . . . . . . . AM3053D2
. . . . . . . . . . . . . . . 4.0kW . . . . . . . . . . 4.0kW . . . . . . . . . . 4.0kW . . . . . . . . . . . 4.0kW
. . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . Y . . . . . . . . . . . . . . . Y
3
. . . . . . . . . 160cm
3
. . . . . . . . . 160cm
. . . . . . . . . . . . . . . 18" (450mm). . . . . 19" (480mm) . . . . . 18" (450mm). . . . . . 19" (480mm)
. . . . . . . . . . . . . . . 2800 min
-1
. . . . . . . 2800 min
-1
. . . . . . . . . . . . . . . 900ml . . . . . . . . . . 900ml . . . . . . . . . . 900ml . . . . . . . . . . . 900ml
. . . . . . . . . . . . . . . 500ml . . . . . . . . . . 500ml . . . . . . . . . . 500ml . . . . . . . . . . . 500ml
Level 1 . . . . . . . . . 25.4mm . . . . . . . . 25.4mm . . . . . . . . . 25.4mm. . . . . . . . . . 25.4mm
Level 2 . . . . . . . . . 29.2mm . . . . . . . . 29.2mm . . . . . . . . . 32.9mm. . . . . . . . . . 32.9mm
Level 3 . . . . . . . . . 33.3mm . . . . . . . . 33.3mm . . . . . . . . . 41.6mm. . . . . . . . . . 41.6mm
Level 4 . . . . . . . . . 37.6mm . . . . . . . . 37.6mm . . . . . . . . . 50.8mm. . . . . . . . . . 50.8mm
Level 5 . . . . . . . . . 42.1mm . . . . . . . . 42.1mm . . . . . . . . . 60.0mm. . . . . . . . . . 60.0mm
Level 6 . . . . . . . . . 46.8mm . . . . . . . . 46.8mm . . . . . . . . . 68.7mm. . . . . . . . . . 68.7mm
Level 7 . . . . . . . . . 51.6mm . . . . . . . . 51.6mm . . . . . . . . . 76.2mm. . . . . . . . . . 76.2mm
Level 8 . . . . . . . . . 56.6mm . . . . . . . . 56.6mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 9 . . . . . . . . . 61.5mm . . . . . . . . 61.5mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 10 . . . . . . . . 66.5mm . . . . . . . . 66.5mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 11. . . . . . . . . 71.5mm . . . . . . . . 71.5mm . . . . . . . . . N . . . . . . . . . . . . . . . N
Level 12 . . . . . . . . 76.2mm . . . . . . . . 76.2mm . . . . . . . . N . . . . . . . . . . . . . . . N
. . . . . . . . . . . . . . . 94dB(A) . . . . . . . . 95dB(A) . . . . . . . . . 94dB(A) . . . . . . . . . 95dB(A)
. . . . . . . . . . . . . . . 11.34m/s
2
. . . . . . . 11.34m/s
2
. . . . . . . . 11.34m/s
. . . . . . . . . . . . . . . 1.5kg/h . . . . . . . . . 1.5kg/h . . . . . . . . . 1.5kg/h . . . . . . . . . . 1.5kg/h
3
GB
3
. . . . . . . . . . 160cm
3
. . . . . . . 2500 min
-1
. . . . . . . . 2800 min
-1
2
. . . . . . . . 11.34m/s
2
3
. . . . . . . . . . 160cm
3
. . . . . . . 2500 min
-1
. . . . . . . . 2800 min
-1
2
. . . . . . . . 11.34m/s
2
