Cooktop with black ceramic glass, steel mounting frame with lateral circulating air nozzles,
filter cover black with suction slot in longitudinal direction
Product components
1 Glass ceramic hob
2 Induction cooking zone front
3 Rear induction cooking zone
4 Touch-control hobs
and fan control panel
6 ON/OFF
7 Suction slot
bottom view
front view
All manuals and user guides at all-guides.com
PRODUCT DESCRIPTION
8 Retractable discharge openings
9 Filter cover 9a Filter frame
10 Metal grease filter
11 Activated carbon filter
12 Service flaps
13 Fixing screw M16x1,5 - ihex.8
14 Power supply line

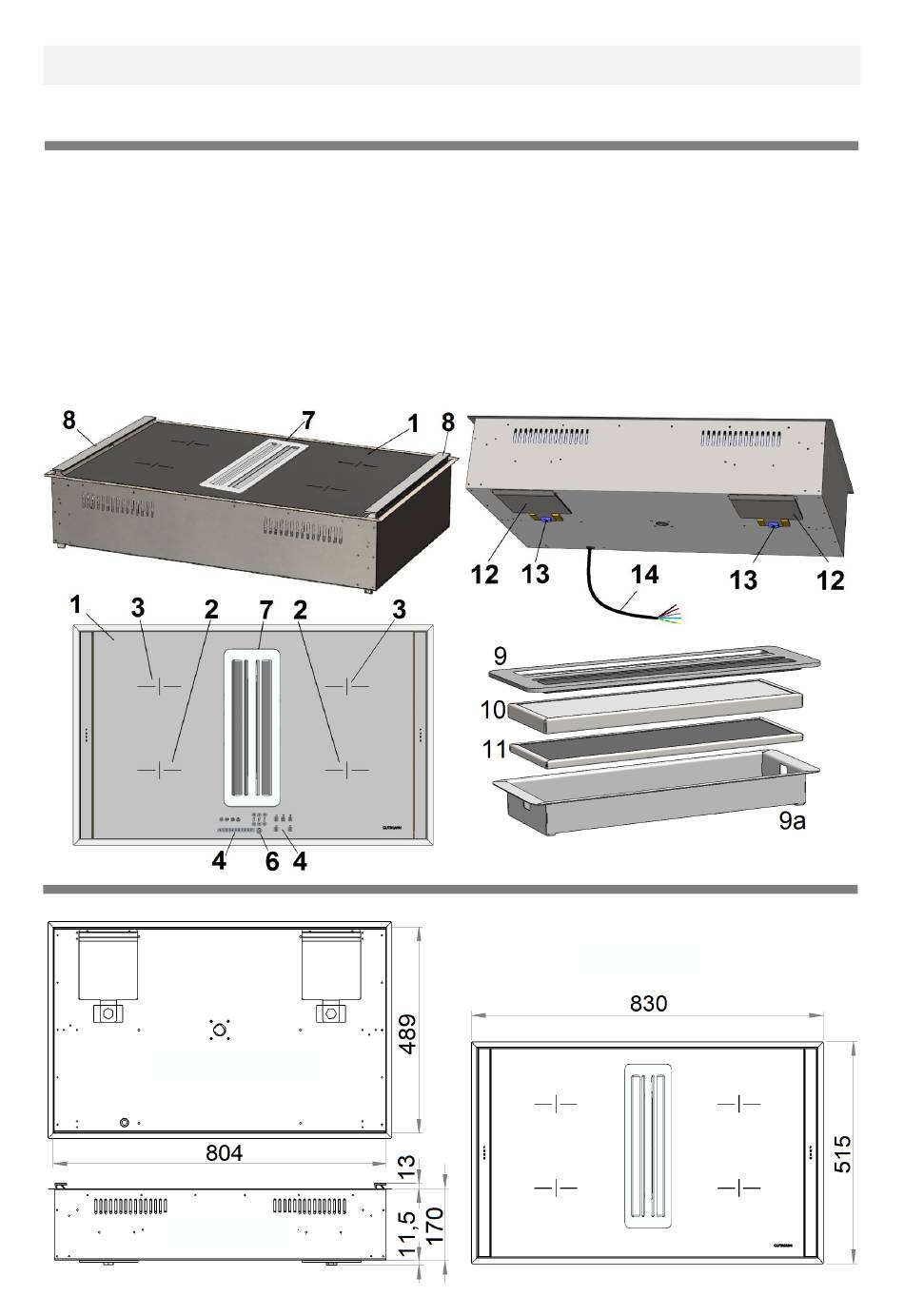

Dimensional drawings
top view
