4 or 16 DMX channels
•
Auto, DMX, master-slave or sound control
•
8 built-in programs, with sound control in DMX mode
•
Scan position memory
•
3-color wheel (red, yellow and blue) + open white, rainbow effect
•
Narrow beam 5°
•
Linear dimmer 0-100%
Specifications
Power supply ........................................................................................ 100 -240Vac 50/60Hz
Consumption ................................................................................................................. . 55W
Light source .............................................................................................. 4x white 10W LED
Pan/Tilt .......................................................................................... 540°/190° 2 speed levels
Strobe
...................................................................................................................... ... 0-
23Hz Dimensions ............................................................................................ 245 x 145 x
330mm
......................................................................................................................... 4.06kg
Mounting
ORIENTATION
This fixture may be mounted in any position
provided there is adequate room for ventilation.

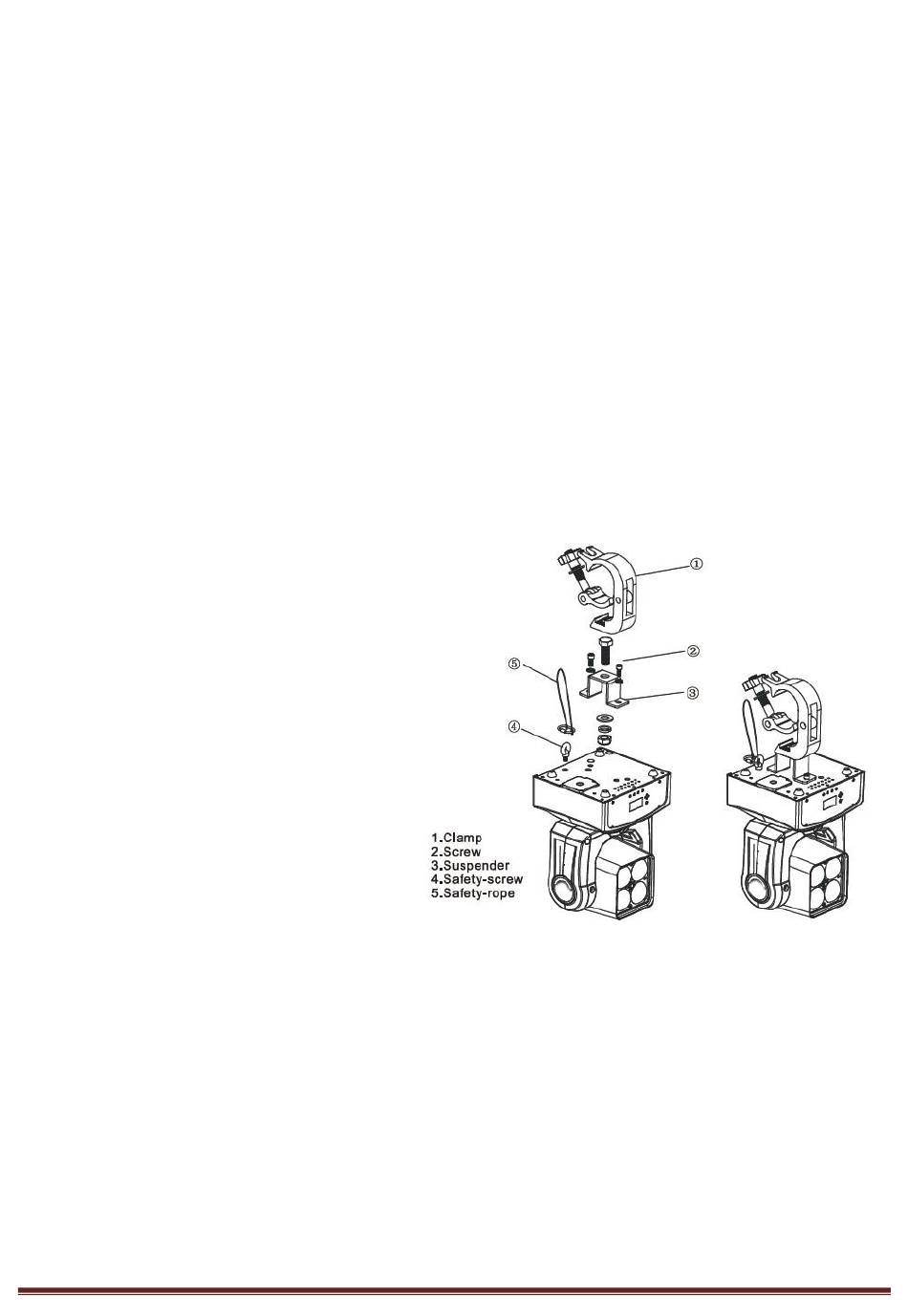

RIGGING
The LED moving head provides a unique mounting
bracket assembly that integrates the bottom of the
base, the included 'omega bracket' and the safety
cable rigging point in one unit (see the illustration
on the right).When mounting this fixture on a
truss, be sure to use an appropriate clamp with
the included omega bracket using a M10 screw
fitted through the center hole of the 'omega
bracket'. As an added safety measure, be sure to
attach at least one properly rated safety cable to
the fixture using one of the safety cable rigging
points integrated in the base assembly.
SETUP
Disconnect the power cord before replacing a fuse and always replace with the same type fuse.
Fixture Linking
You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run
synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of
channels required by all fixtures on a serial data link determines the number of fixtures that the data link can
support.
Important: Fixtures on a serial/data link must be daisy chained in one single line. Maximum recommended serial
data link distance: 100 meters (1640 ft.) Maximum recommended number of fixtures on a serial data link: 16 fixtures
Data Cabling
+
Weight
