5
Commissioning
5.1
Functional test
Functional test shredder-mix pump
Make sure that the shut-off valve for the pump valve is opened (completely pulled out and secured).
During manual operation (6) only the pump starts on the control unit (see the separate instructions 016-271 Connect 400
V Mono control unit for grease separators).
Pump starts up.

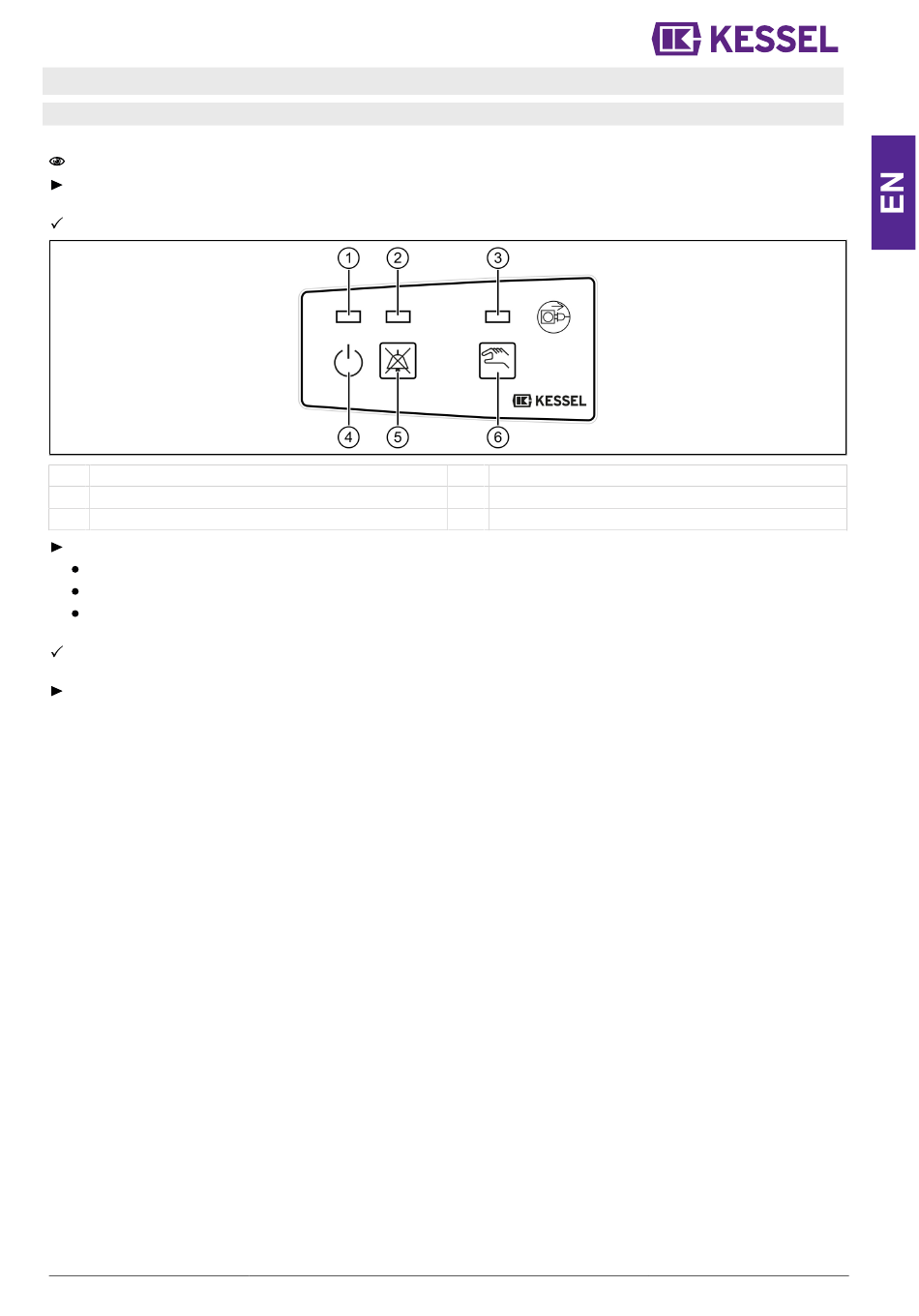

(1)
Ready for operation LED (green)
(2)
Alarm LED (red)
(3)
Motor/pump running LED (orange)
Check the following points:
Pump is running without interference noises and interruption-free.
Pump is running in the correct direction (direction of arrow on the pump).
Control unit does not indicate a fault (no flashing LED 1-3 (see the separate instructions 016-271 Connect 400 V Mono
control unit for grease separators)).
If these points are correct, the system is ready for commissioning and/or general inspection. If problems occur, proceed in
accordance with the "Maintenance" chapter.
Manual operation ends automatically or by pressing the button 6 again.
Tightness of the pipe connections
Before commissioning, a leak test must be performed on all on-site connections. The pre-assembled connections have
undergone a leak test at the factory and only need to be tested again if the connections have been dismantled e.g. for easier
installation.
(4)
Operation symbol
(5)
Switch off (acknowledge) alarm button
(6)
Motor/pump on (manual) button
Installation and operating instructions
25 / 100
