FR 30 SM45 TOUCH BASIC
IS ...................................Discharge indicator
CN 1 .............6-pin connector sensors board
CN 2 ............4-pin connector switches board
F1 ..................................................Fuse 50A
MA ....................................... Vacuum engine
MS ........................................... Brush engine

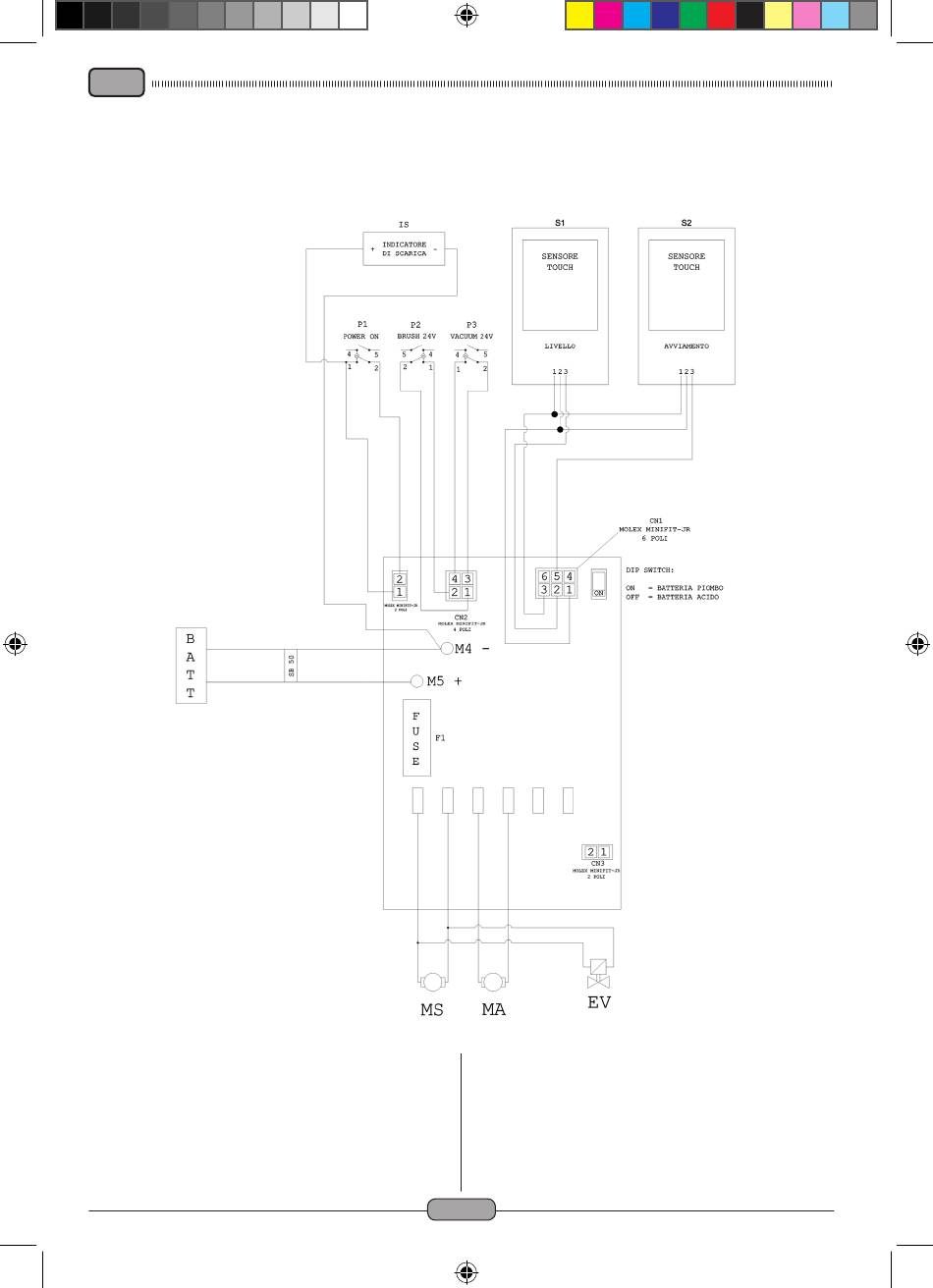

WIRING DIAGRAM
EV ................................................... Solenoid
P1 ...............................................Main switch
P2 .............................................Brush switch
P3 .......................................... Suction switch
S1 .................... Recovery level touch sensor
S2 ................................Touch sensor handle
