PRELIMINARY EXAMINATION
Please examine this product carefully. Make
sure that the instrument is not damaged.
If any damage occured during shipment,
please notify your Dealer.
Each MW10 tester is supplied complete with:
Two Sample Cuvettes and Caps
Six powder reagents for Free Chlorine
1 x 1.5V AAA Battery
Instruction Manual

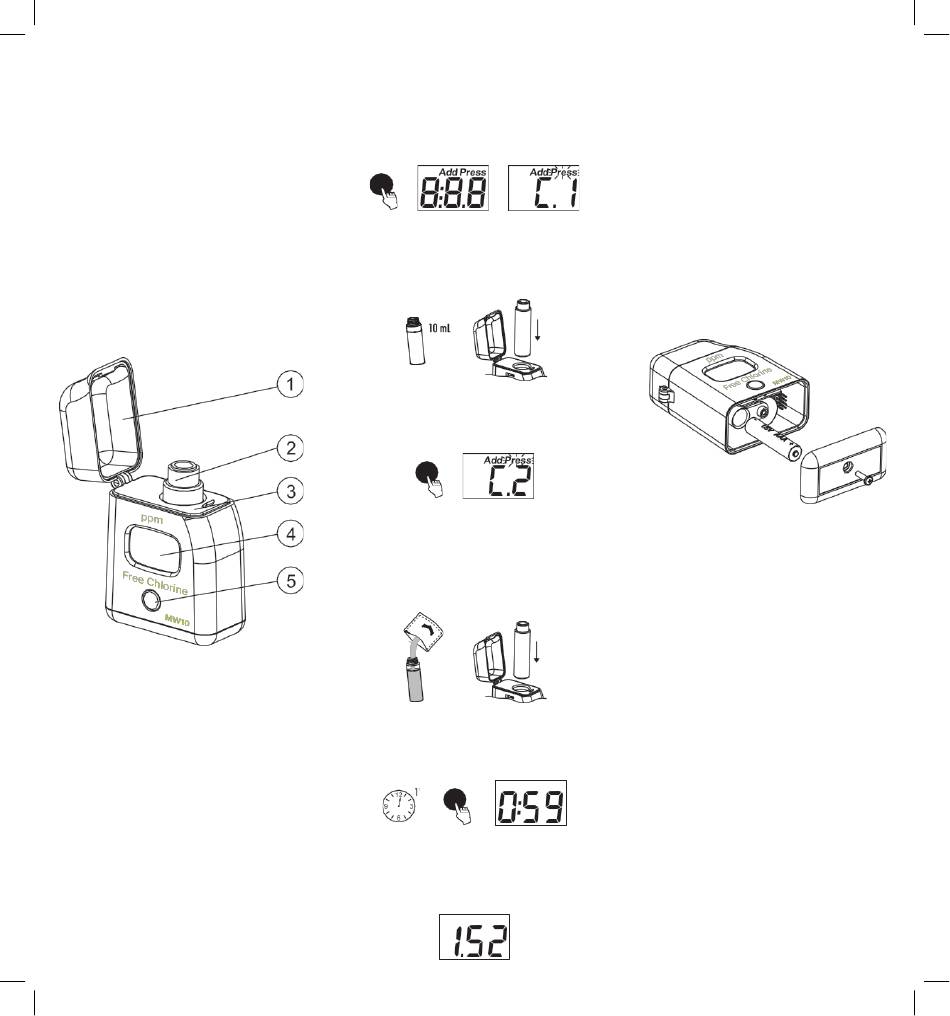

FUNCTIONAL DESCRIPTION
1. Dust cover
2. Cuvette with cap
3. Cuvette holder
4. Liquid Crystal Display
5. Button
OPERATION
Turn the tester on by pressing the button.
After all the segments are displayed, "C.1",
"Add" appears with "Press" blinking, the
tester is ready.
Fill the cuvette with 10 mL of unreacted
sample and replace the cap. Place the
cuvette into the tester and close the
tester's cap.
Press the button. When the display shows
"Add", "C.2" with "Press" blinking the tester
is zeroed.
Remove the cuvette, open it and add the
content of one packet of MI526-0 reagent.
Replace the cap and shake gently for
20 seconds. Replace the cuvette into the
tester.
Wait for 1 minute and then press the button
or press and hold the button until the timer
is displayed on the LCD.
The instrument directly displays the
concentration of free chlorine in ppm.
The tester automatically turns off after
2 minutes.
BATTERY REPLACEMENT
To save the battery, the instrument shuts down
after 2 minutes of non-use. One fresh battery
lasts for a minimum of 5000 measurements,
depending on the light level. When the
battery capacity is under 10 % "bAt" appears
on the LCD at start-up.
If the battery is empty and accurate
measurements can't be taken any more, the
instrument shows "bAd" then "bAt" each
for 1 second and turns off. To restart the
instrument, the battery must be replaced with
a fresh one.
To replace the instrument's battery, follow the
steps:
Turn the instrument off by holding the
button until the tester shuts off.
Turn the instrument upside down
and remove the battery cover with a
screwdriver.
Remove the battery from its location and
replace it with a fresh one.
Insert the battery cover and replace the
screw with a screwdriver.
