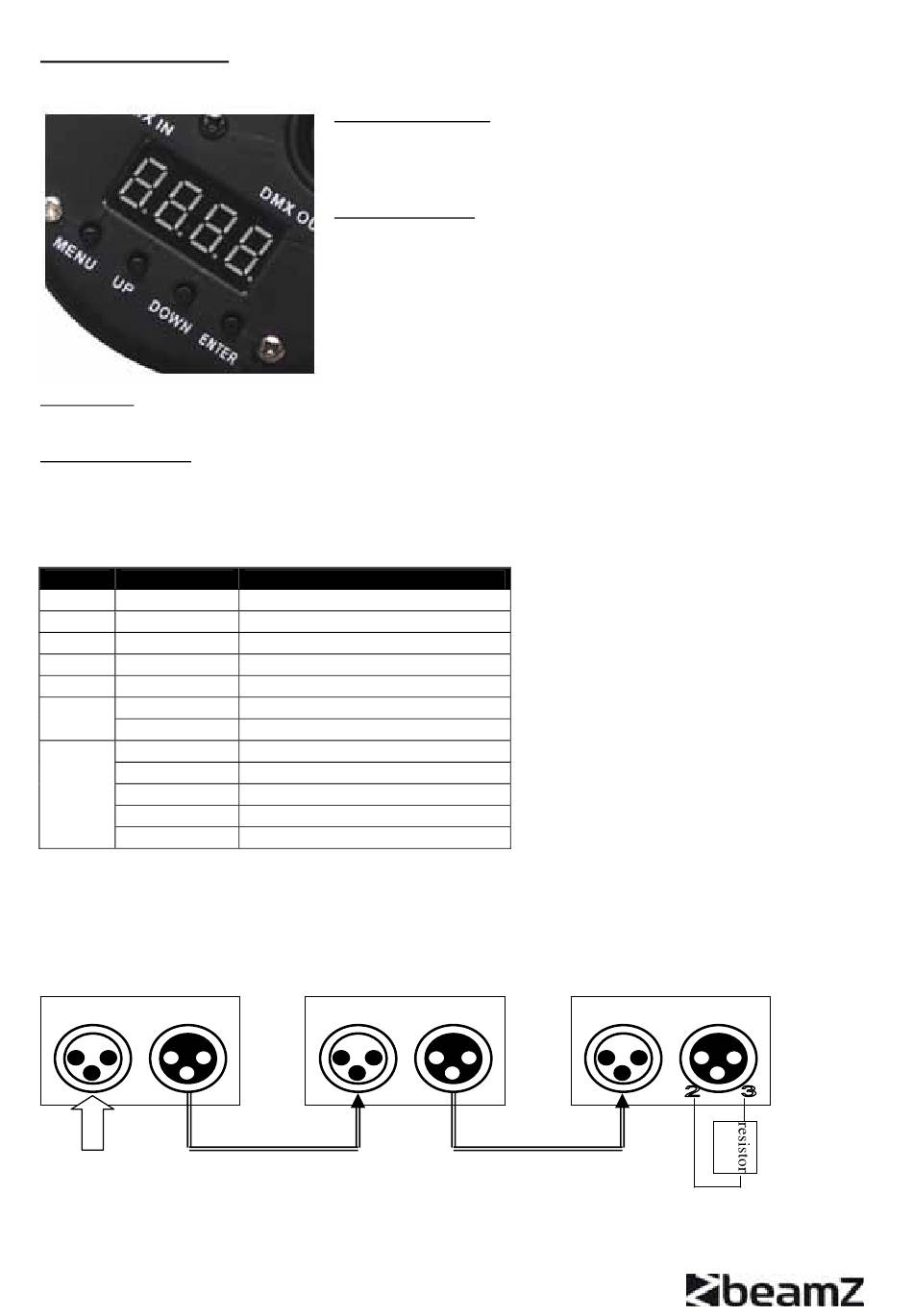

Settings and operation
Press "Menu" to switch to the Menu.
Slave setting
When display shows "SLAV" it's in slave mode
Factory value setting
When display shows "REST" press "ENTER" to set the unit back into factory settings.
DMX functions:
Channel DMX Value
1
0 - 255
2
0 - 255
3
0 - 255
4
0 - 255
5
0 - 255
0 – 7
6
8 - 255
0 - 7
8 - 149
7
150 - 179
180 – 219
220 – 255
A DMX signal terminator is recommended to avoid a bad signal caused by other electrical devices. A DMX terminator is a
XLR connector with a 120Ω resistor between pin 2 and pin 3 of the XLR connector. Connect it to the last OUTPUT socket
of the final light.
See picture:
IN
OUT
DMX address setting.
When display shows "A001" you can set the DMX address.
Press "UP" or "Down" to adjust the value (001 – 512), press "ENTER" to
save the address setting.
Work mode setting.
When display shows G-x (x = mode number 0 - 4)
0 = DMX control
1 = Auto mode
2 = Sound activation 1
Press "UP" and "DOWN" button to adjust, press "ENTER" to save.
Function
Dimmer
White LED Group 1
White LED Group 2
White LED Group 3
Flash
DMX mode CH1-5
Fade slow-fast + Dimmer CH1
DMX mode CH1-5
Auto mode
Sound active mode 1
Sound active mode 2
Sound active mode 3
IN
- 4 -
3 = Sound activation 2
4 = Sound activation 3
OUT
IN
OUT
120Ω
