Samenvatting van Inhoud voor Sonnenkonig Air Fresh 6

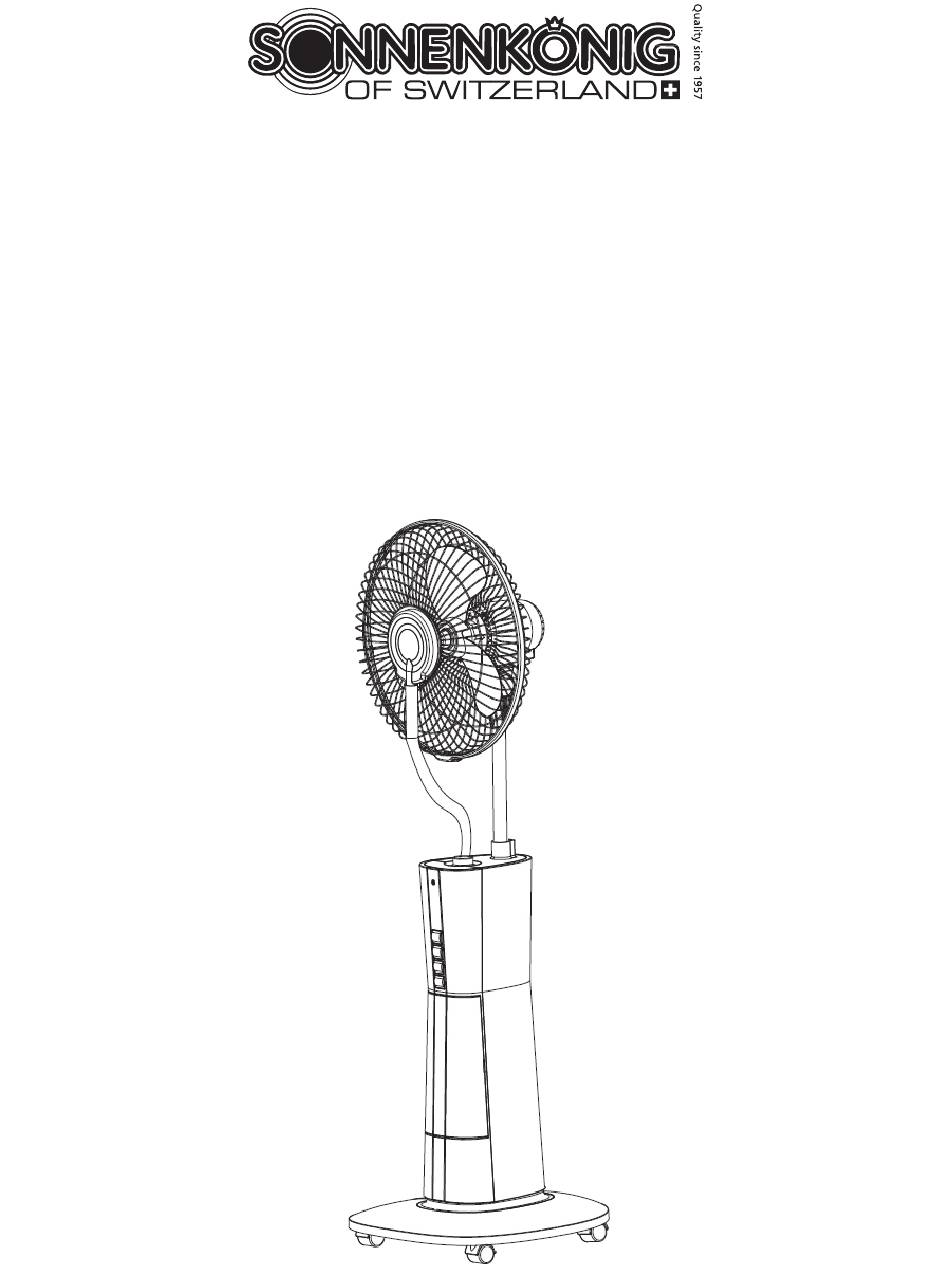

  • Pagina 1 Air Fresh 6 Lufterfrischer Bedienungsanleitung...
  • Pagina 2: Inhoudsopgave

    INDEX 1 Sicherheitshinweise ���������������������������������������������������������������������������������� 3 2 Technische Eigenschaften ������������������������������������������������������������������������� 4 3 Teile und Montage ����������������������������������������������������������������������������������� 5 4 Betrieb ����������������������������������������������������������������������������������������������������� 7 5 Reinigung und Lagerung �������������������������������������������������������������������������� 8 6 Instandhaltung ����������������������������������������������������������������������������������������� 9 7 Garantie / Entsorgung / Technische Änderungen �������������������������������������10...
  • Pagina 3: Sicherheitshinweise

    1 Sicherheitshinweise Bitte lesen Sie vor erster Inbetriebnahme die Gebrauchsanweisung genau durch und beachten Sie die Sicherheitshinweise um Schäden durch falsche oder unsachgemässe Bedienung sowie unzulässige Umgebungsbedingungen zu vermeiden. Bewahren Sie diese zum späteren Nachschlagen gut auf. Kontrollieren Sie das Gerät nach dem Entfernen der Verpackung auf Beschädigungen. Setzen Sie das Gerät bei Verdacht auf eine Beschädigung nicht in Betrieb und wenden Sie sich an einen Fachmann.
  • Pagina 4: Technische Eigenschaften

    • Wenn das Netzkabel beschädigt ist, muss es durch den Hersteller, seinen Kundendienst oder eine ähnlich qualifizierte Person ersetzt werden, um Gefährdungen zu vermeiden. 2 Eigenschaften Model: Air Fresh 6 Spannung: 220 V – 240 V Frequenz: 50Hz Leistungsaufnahme: 100 Watt Maximale Dunst-Kapazität: 200 ml/Stunde...
  • Pagina 5: Teile Und Montage

    3 Teile und Montage Bezeichnung der Teile 1. Lüftungsgitter 2. Auffangschale für Dampf 3. Dampfrohr 4. Bedienfeld 5. Wassertank 6. Netzkabel 7. Basis 8. Räder Teile des Lüfters 1. Auffangschalte für Dampf 2. Vorderes Lüftungsgitter 3. Klingenschutzkappe 4. Ventilationsklingen 5. Befestigungsmutter für Gitter 6.
  • Pagina 6 Montage: 1. Befestigen Sie die vier Räder (11) an der Basis (10). 2. Installieren Sie den Körper des Ventilators (9) an der Basis (10) und befestigen Sie die Basismutter (12). 3. Befestigen Sie den Motorsatz (7) mit der Befestigungsschraube (8). 4.
  • Pagina 7: Betrieb

    4 Betrieb Bitte stellen Sie sicher, dass das Gerät ausgeschaltet ist, bevor Sie es in die Steckdose stecken (OFF). • Stellen Sie das Gerät auf eine feste, ebene Fläche. • Vermeiden Sie eine Überlastung des Schaltkreises, in dem Sie mehrere Geräte mit hoher Watt-Zahl in die gleiche Steckdose stecken.
  • Pagina 8: Reinigung Und Lagerung

    MIST: Drücken Sie diese Taste zum Ein- oder Ausschalten des Ultraschall-Luftbefeuchters. SWING: Drücken Sie diese Taste, um die Oszillation ein- oder auszuschalten. ON/SPEED: Drücken Sie diese Taste, um den Ventilator in der 1. Geschwindigkeitsstufe (Normalmodus) zu starten. Drücken Sie die Taste erneut, um die Ventilation von 1-2-3 zu wechseln.
  • Pagina 9: Instandhaltung

    6 Instandhaltung Lassen Sie Ihr Produkt von einer Fachkraft reparieren. Dieses elektrische Gerät wurde in Übereinstimmung mit den geltenden Sicherheitsanforde- rungen hergestellt. Reparaturen dürfen nur von qualifiziertem Personal unter Verwendung von Originalersatzteilen durchgeführt werden, sonst kann es zu erheblichen Gefahren für den Benutzer führen.
  • Pagina 10: Garantie / Entsorgung / Technische Änderungen

    7 Garantie / Entsorgung / Technische Änderung Garantie Die Geräte werden vor der Auslieferung genau kontrolliert. Sollte trotzdem einmal ein Mangel an Ihrem Gerät auftreten, wenden Sie sich vertrauensvoll an Ihren Verkäufer. Bitte bringen Sie den Kaufbeleg mit, denn dieser ist für jede Garantieleistung vorzulegen. Die Garantie beträgt 24 Monaten ab dem Kaufdatum.
  • Pagina 11 Firma Armin Schmid Olensbachstrasse 9-15 CH-9631 Ulisbach Tel. Int. +41 71 987 60 60 Tel. Nat. 0848870850 www.sonnenkoenig.ch Firma Armin Schmid Peter-Henlein-Strasse 5 D-89331 Burgau Tel: 0180 500 64 35 info@sonnenkoenig.ch www.sonnenkoenig.ch Festnetz 14 Cent/Minute Mobilnetz bis 42 Cent/Minute...
  • Pagina 12 Air Fresh 6 Refroidisseur d‘air Mode d‘emploi...
  • Pagina 13 SOMMAIRE 1 Consignes de sécurité ������������������������������������������������������������������������������14 2 Caractéristiques techniques ���������������������������������������������������������������������15 3 Élements et montage ������������������������������������������������������������������������������16 4 Fontionnement ����������������������������������������������������������������������������������������18 5 Nettoyage et stockage ����������������������������������������������������������������������������19 6 Maintenance ������������������������������������������������������������������������������������������ 20 7 Garantie / élimination / modifications techniques ������������������������������������21...
  • Pagina 14: Consignes De Sécurité

    1 Consignes de sécurité Avant la première mise en service, veuillez lire scrupuleusement le mode d‘emploi dans son Intégralité et tenir compte des consignes de sécurité afin d‘éviter les dommages liés à une com- mande mauvaise ou non conforme ainsi qu‘à des conditions d‘environnement non autorisées. Conservez ce mode d‘emploi afin de pouvoir le consulter de nouveau ultérieurement.
  • Pagina 15: Caractéristiques Techniques

    • Si le câble d‘alimentation est endommagé, celui-ci devra être remplacé par le fabricant, par son service après-vente ou toute autre personne qualifiée afin d‘éviter tout danger. 2 Caractéristiques techniques Modèle : Air Fresh 6 Voltage : 220 V – 240 V Fréquence : 50 Hz Consommation d‘énergie : 100 watts...
  • Pagina 16: Élements Et Montage

    3 Éléments et montage Désignation des éléments 1. Grille de ventilation 2. Récipient pour recueillir la vapeur 3. Conduit de vapeur 4. Écran de contrôle 5. Réservoir d‘eau 6. Câble réseau 7. Base 8. Roues Éléments du ventilateur 1. Récipient pour recueillir la vapeur 2.
  • Pagina 17 Montage: 1. Fixez les quatre roues (11) sur la base (10). 2. Installez le corps du ventilateur (9) sur la base (10) et fixez l‘écrou de base (12). 3. Fixez le moteur (7) avec la vis de fixation (8). 4. Glissez ensuite la grille de ventilation arrière sur le moteur (7) et fixez-la à l‘aide de l‘écrou de fixation (5).
  • Pagina 18: Fontionnement

    4 Fonctionnement Veuillez vous assurer que l‘appareil est éteint avant de le brancher à une prise électrique (OFF). • Placez l‘appareil sur une surface stable et plane. • Évitez de surcharger le circuit en branchant plusieurs appareils à forte puissance à la même prise électrique.
  • Pagina 19: Nettoyage Et Stockage

    MIST: Appuyez sur cette touche pour éteindre ou allumer l‘humidificateur d‘air à ultrasons. SWING: Appuyez sur cette touche pour activer ou désactiver la fonction ionisateur ON/SPEED: Appuyez sur cette touche pour démarrer le ventilateur en première vitesse (mode normal). Appuyez sur la touche pour régler la ventilation sur 1-2-3. 5 Nettoyage et stockage •...
  • Pagina 20: Maintenance

    6 Maintenance Faites réparer votre appareil par un spécialiste. Cet appareil électrique a été fabriqué en conformité avec les normes de sécurité. Les réparations ne doivent être effectuées que par des personnes qualifiées et qu‘au moyen de pièces de rechange originales, sous peine d‘exposer l‘utilisateur à de graves dangers. Merci de contacter le magasin dans lequel vous avez acheté...
  • Pagina 21: Garantie / Élimination / Modifications Techniques

    7 Garantie / élimination / modifications techniques Garantie L‘appareil sont contrôlés de manière précise avant la livraison. Si malgré tout un vice de- vait être constaté sur votre appareil, adressez-vous en toute confiance à notre revendeur. Veuillez joindre la preuve d‘achat, car celle-ci doit être présentée pour la prestation de garantie.
  • Pagina 22 Maison Armin Schmid Olensbachstrasse 9-15 CH-9631 Ulisbach Tel. Int. +41 71 987 60 60 Tel. Nat. 0848870850 www.sonnenkoenig.ch Maison Armin Schmid Peter-Henlein-Strasse 5 D-89331 Burgau Tel: 0180 500 64 35 info@sonnenkoenig.ch www.sonnenkoenig.ch Téléphone Fixe 14 Cent/Minute Réseau mobile bis 42 Cent/Minute...
  • Pagina 23 Air Fresh 6 Rigeneratore d’aria Manuale dell’utente...
  • Pagina 24 INDICE 1 Avvertenze per la sicurezza �������������������������������������������������������������������� 25 2 Caratteristiche tecniche �������������������������������������������������������������������������� 26 3 Lista delle parti e assemblaggio del ventilatore ���������������������������������������27 4 Operazioni ���������������������������������������������������������������������������������������������� 29 5 Pulizia e stoccaggio �������������������������������������������������������������������������������� 30 6 Manutenzione ���������������������������������������������������������������������������������������� 31 7 Garanzia / Smaltimento / Modifiche tecniche ������������������������������������������ 32...
  • Pagina 25: Avvertenze Per La Sicurezza

    1 Avvertenze per la sicurezza Prima di mettere in funzione per la prima volta il deumidificatore, si raccomanda di leggere con cura le istruzioni d’uso e di rispettare le avvertenze di sicurezza al fine di evitare un utilizzo im- proprio o sbagliato come pure condizioni ambientali non idonee. Si raccomanda di conservare le istruzioni per futura consultazione.
  • Pagina 26: Caratteristiche Tecniche

    • Se il cavo di alimentazione è danneggiato, deve essere sostituito dal produttore, dal suo servizio assistenza o ad un tecnico qualificato al fine di evitare situazioni pericolose. 2 Caratteristiche tecniche Nome del modello: Air Fresh 6 Voltaggio 220 V – 240 V Frequenza: 50 Hz Potenza: 100 W Capacità...
  • Pagina 27: Lista Delle Parti E Assemblaggio Del Ventilatore

    3 Lista delle parti e assemblaggio del ventilatore Lista delle parti 1. Griglia del ventilatore 2. Dispositivo per la nebulizzazione dell’acqua 3. Tubo dell’acqua 4. Pannello di controllo 5. Spazio per lo stoccaggio dell’acqua 6. Cavo elettrico 7. Base 8. Ruote Assemblaggio del ventilatore 1.
  • Pagina 28 Assemblaggio: 1) Fissare le quattro ruote [11] alla base [10]. 2) Installare il corpo del ventilatore [9] alla base [10] E fissure con il dado della base [12]. 3) Fissare il motore [7] con le viti di fissaggio [8] 4) Inserire la griglia posteriore [6] sull’albero motore [7] e fissarla con il dado posteriore [5].
  • Pagina 29: Operazioni

    4 Operazioni Assicurarsi che il prodotto sia spento prima di collegarlo alla presa elettrica. • Posizionare l‘unità su una superficie piana dritta e solida. • Evitare di sovraccaricare il circuito, collegando altri prodotti ad alto wattaggio alla stessa presa di corrente. Elementi del display e del pannello di controllo Display Bedienfeld...
  • Pagina 30: Pulizia E Stoccaggio

    MIST: Per accendere / spegnere l‘umidificatore ad ultrasuoni. SWING: Per avviare / fermare l’ oscillazione. ON/SPEED: Premere questo pulsante per avviare la ventola a velocità 1, in modalità nor- male. Premere di nuovo per cambiare la velocità della ventola da 1-2-3. 5 Pulizia e stoccaggio •...
  • Pagina 31: Manutenzione

    6 Manutenzione Fate riparare il vostro prodotto da personale qualificato. Questo prodotto elettrico è in conformità con i requisiti di sicurezza. Le riparazioni devono essere effettuate solo da personale qualificato e con pezzi di ricam- bio originali, in caso contrario, può portare a gravi pericoli per l‘utente. In caso di necessità, si prega di contattare il negozio dove è...
  • Pagina 32: Garanzia / Smaltimento / Modifiche Tecniche

    7 Garanzia / Smaltimento / Modifiche tecniche Garanzia I prodotti vengono controllati attentamente prima della spedizione. Se dovesse comun- que presentarsi un vizio sul vostro apparecchio, vi invitiamo a rivolgervi in tutta tranquil- lità al vostro rivenditore. Vi rammentiamo di portare appresso la ricevuta d’acquisto, che deve essere presentata per ogni prestazione in garanzia.
  • Pagina 33 Ditta Armin Schmid Olensbachstrasse 9-15 CH-9631 Ulisbach Tel. Int. +41 71 987 60 60 Tel. Nat. 0848870850 www.sonnenkoenig.ch Ditta Armin Schmid Peter-Henlein-Strasse 5 D-89331 Burgau Tel: 0180 500 64 35 info@sonnenkoenig.ch www.sonnenkoenig.ch Telefono fisso 14 Cent/Minute Telefono mobile fino a 42 Cent/Minute...
  • Pagina 34 Air Fresh 6 Luchtververser Gebruikershandleiding...
  • Pagina 35 INDEX 1 Veiligheidsinstructies ������������������������������������������������������������������������������ 36 2 Technische eigenschappen ��������������������������������������������������������������������� 37 3 Onderdelen en montage ������������������������������������������������������������������������� 38 4 Bedrijf ���������������������������������������������������������������������������������������������������� 40 5 Reiniging en opslag ���������������������������������������������������������������������������������41 6 Onderhoud ��������������������������������������������������������������������������������������������� 42 7 Garantie / verwijdering / technische wijzigingen ������������������������������������ 43...
  • Pagina 36: Veiligheidsinstructies

    1 Veiligheidsinstructies Lees de gebruiksaanwijzing voor het eerste gebruik zorgvuldig door en volg de veilig- heidsinstructies op om schade door verkeerd of ondeskundig gebruik en ongeschikte om- gevingsomstandigheden te voorkomen. Bewaar deze gebruiksaanwijzing, zodat u deze later nogmaals kunt raadplegen. Controleer het apparaat nadat u het uit de verpakking hebt gehaald op beschadigingen.
  • Pagina 37: Technische Eigenschappen

    • Wanneer het stroomsnoer is beschadigd, moet het door de producent, diens klanten- dienst of een specialist met een vergelijkbare kwalificatie worden vervangen om gevaar te vermijden. 2 Technische eigenschappen Uitvoering: Air Fresh 6 Spanning: 220 V – 240 V Frequentie: 50 Hz Invoer: 100 Watt Maximaal verdampingsvermogen: 200 ml/uur Afm.
  • Pagina 38: Onderdelen En Montage

    3 Onderdelen en montage Benaming van de onderdelen 1. Ventilatierooster 2. Opvangbak voor stoom 3. Wasembuis 4. Bedieningspaneel 5. Waterreservoir 6. Stroomsnoer 7. Basis 8. Wielen Onderdelen van de ventilator 1. Opvangbak voor stoom 2. Voorste ventilatierooster 3. Veiligheidskap ventilatorbladen 4.
  • Pagina 39 Montage: 1. Bevestig de vier wielen (11) aan de basis (10). 2. Installeer het basiselement van de ventilator (9) op de basis (10) en draai de basisring (12) vast. 3. Maak de motorconstructie (7) vast met de bevestigingsschroef (8). 4. Plaats het achterste ventilatierooster op de motorconstructie (7) en maak hem vast met de bevestigingsmoer (5).
  • Pagina 40: Bedrijf

    4 Bedrijf Controleer eerst dat het apparaat is uitgeschakeld voordat u de stekker in het stopcontact doet (OFF). • Plaats het apparaat op een stevige, gelijkmatige ondergrond. • Voorkom overbelasting van het stroomcircuit door meerdere apparaten met een hoog wattage op hetzelfde stopcontact aan te sluiten. Display en bedieningspaneel Display Bedieningspaneel...
  • Pagina 41: Reiniging En Opslag

    MIST: Druk op deze toets om de ultrasone luchtbevochtiger in of uit te schakelen. SWING: Druk op deze toets om de oscillatie (heen-en-weer gaan) in of uit te schakelen. ON/SPEED: druk op deze toets om de ventilator op de 1e snelheid (normale stand) te starten.
  • Pagina 42: Onderhoud

    6 Onderhoud Laat dit product repareren door een expert. Dit apparaat is vervaardigd overeenkomstig de geldende wettelijke veiligheidsvereisten. Reparaties mogen enkel worden verricht door gekwalificeerd personeel met gebruikmaking van originele onderdelen, anders kan een aanzienlijk gevaar voor de gebruiker ontstaan. Neem hiertoe alstublieft contact op met de vakhandel waar u dit product hebt aange- schaft.
  • Pagina 43: Garantie / Verwijdering / Technische Wijzigingen

    7 Garantie / verwijdering / technische wijzigingen Garantie De apparaten worden voordat ze worden geleverd uitgebreid gecontroleerd. Treedt er desondanks toch een defect aan uw apparaat op, neem dan contact op met de verkoper. Toon daarbij uw aankoopbewijs, omdat u dit nodig hebt om van de garantie gebruik te kunnen maken.
  • Pagina 44 Firma Armin Schmid Olensbachstrasse 9-15 CH-9631 Ulisbach Tel. Int. +41 71 987 60 60 Tel. Nat. 0848870850 www.sonnenkoenig.ch Firma Armin Schmid Peter-Henlein-Strasse 5 D-89331 Burgau Tel: 0180 500 64 35 info@sonnenkoenig.ch www.sonnenkoenig.ch Landline 14 Cent/Minute Mobile network 42 Cent/Minute...
  • Pagina 45 Air Fresh 6 Air freshener User Manual...
  • Pagina 46 INDEX 1 Safety instructions �����������������������������������������������������������������������������������47 2 Technical characteristics ������������������������������������������������������������������������� 48 3 Parts list / assembly�������������������������������������������������������������������������������� 49 4 Operation ������������������������������������������������������������������������������������������������51 5 Cleaning and storage ����������������������������������������������������������������������������� 52 6 Maintenance ������������������������������������������������������������������������������������������ 53 7 Warranty / Disposal / Technical change �������������������������������������������������� 54...
  • Pagina 47: Safety Instructions

    1 Safety instructions Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference. Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist.
  • Pagina 48: Technical Characteristics

    • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 2 Technical characteristics Model No.: Air Fresh 6 Rated Voltage: 220 V – 240 V Rated Frequency: 50 Hz Power Input: 100 W Max.
  • Pagina 49: Parts List / Assembly

    3 Parts list / assembly Parts list 1. Fan grille 2. Water spray set 3. Water tube 4. Control panel 5. Water tank storage 6. Power cord 7. Base 8. Wheel(s) Fan assembly 1. Water spray set 2. Front fan grille 3.
  • Pagina 50 How to assemble: 1. Fix the four wheels [11] onto the base [10]. 2. Install the fan body [9] on the base [10] and fasten the base nut [12]. 3. Fasten the motor set [7] with the fixation screw [8] 4.
  • Pagina 51: Operation

    4 Operation Please ensure the unit is in the OFF-position before plugging it into the power outlet. • Place the unit on a firm level surface. • Avoid overloading the circuit by not plugging other high wattage products into the same power outlet.
  • Pagina 52: Cleaning And Storage

    MIST: Press this button to turn on/off the ultrasonic humidifier. SWING: Press to start/stop Fan Oscillation. ON/SPEED: Press this button to start the fan at Speed 1, in normal mode. Press again to switch the fan speed from 1-2-3. 5 Cleaning and storage •...
  • Pagina 53: Maintenance

    6 Maintenance Have your product repaired by a qualified person. This electric product is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts. Other- wise, it may lead to considerable danger for the user. If necessary, please contact the store where you bought the product for after-sale service.
  • Pagina 54: Warranty / Disposal / Technical Change

    7 Warranty / Disposal / Technical change Warranty The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each war- ranty. The guarantee period is 24 months from date of purchase. Disposal The device must be disposed of properly.
  • Pagina 55 Notizen...
  • Pagina 56 Firma Armin Schmid Olensbachstrasse 9-15 CH-9631 Ulisbach Tel. Int. +41 71 987 60 60 Tel. Nat. 0848870850 www.sonnenkoenig.ch Firma Armin Schmid Peter-Henlein-Strasse 5 D-89331 Burgau Tel: 0180 500 64 35 info@sonnenkoenig.ch www.sonnenkoenig.ch Landline 14 Cent/Minute Mobile network 42 Cent/Minute...
