CONNECTIONS
First connect all signal leads prior to connecting the mains lead to a mains outlet!!

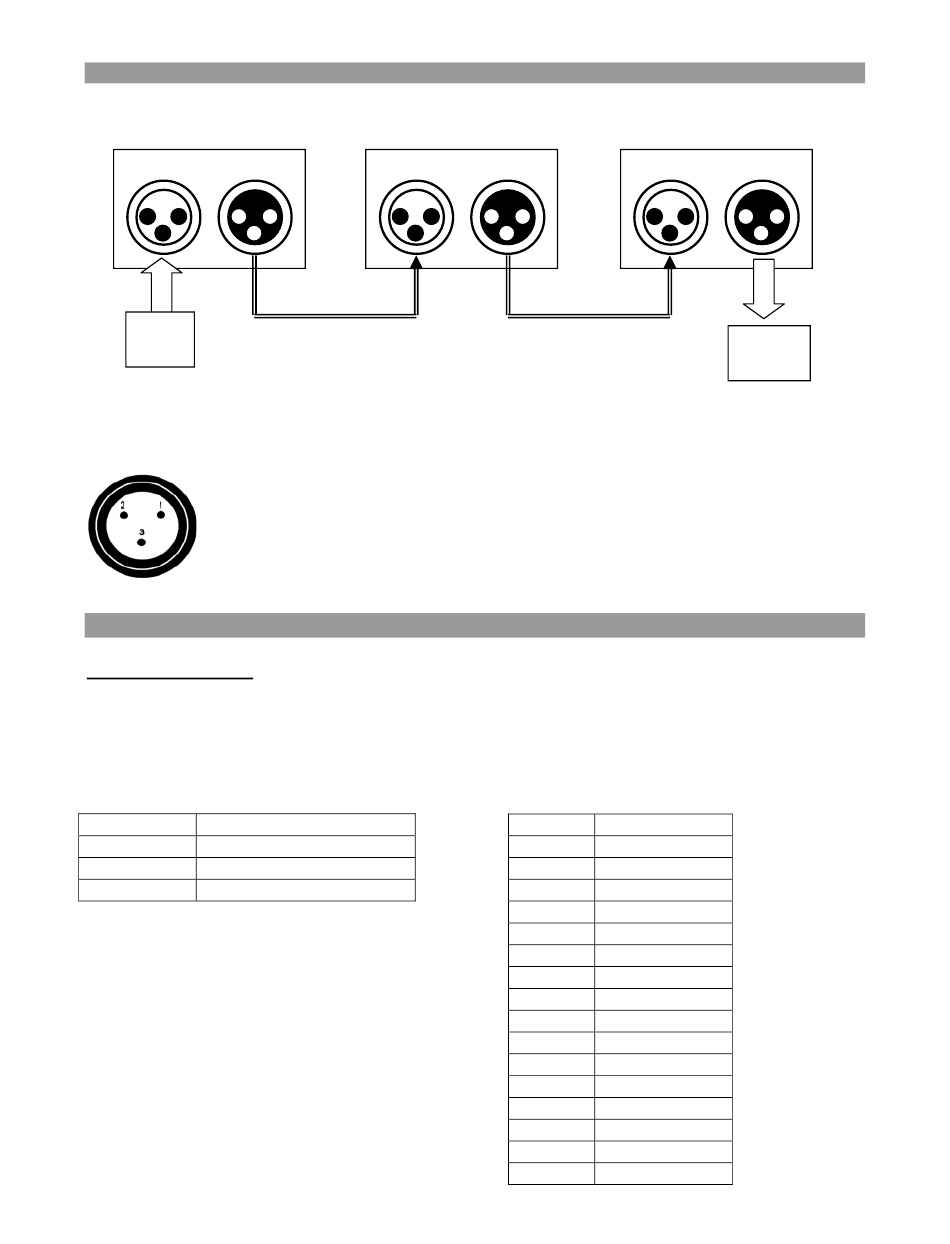

Connection if several moving heads must operate together (Master/Slave):
I
OUT
DMX
IN
Connect the moving heads via 3-pin XLR leads as indicated in the illustration above if you want to
operate them in Master-Slave mode.
The wiring of an XLR connector is indicated below:
1. Earth
2. Signal –
3. Signal +
DMX512 PROTOCOLE
5 CHANNEL MODE
Channel 1: Pan, The moving head can rotate horizontally up to 540° and stop in any position.
Channel 2: Tilt, The moving head can rotate vertically up to 270° and stop in any position.
Channel 3: Shutter and stroboscope
0-9
Shutter closed
10-134
Shutter open 0-100%
135-239
Stroboscope (slow to fast)
240-255
Shutter open
All manuals and user guides at all-guides.com
I
OUT
An end-of-line resistor of 120Ω/1W must be connected on the last
unit of the chain (DMX OUT between pin 2 & 3).
I
Channel 4: Colours
0-7
Closed
8-21
Open / White
22-35
Red
36-49
Green
50-63
UV
64-77
Light blue
78-91
Pink
92-105
Yellow
106-119
Magenta
120-133
Pink II
134-147
Light green
148-161
Light Magenta
162-189
Dark blue
190-203
Light pink
204-217
White II
218-231
White III
232-255
Rainbow effect
OUT
DMX
OUT
