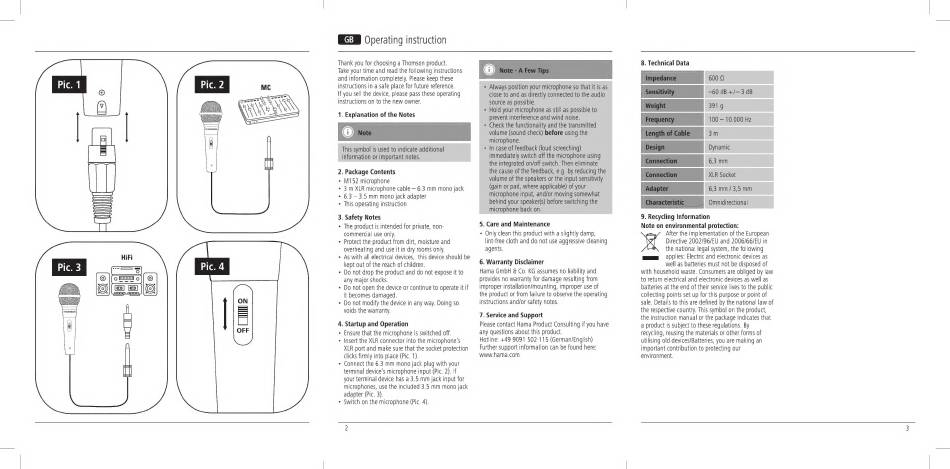

THOMSON M152 Gebruiksaanwijzing pagina 2
Operating instruction
Pic. 4
Thank you for choosing a Thomson product.
Take your time and read the following instructions
and information completely. Please keep these
instructions in a safe place for future reference.
If you sell the device, please pass these operating
instructions on to the new owner.
1. Explanation of the Notes
This symbol is used to indicate additional
information or important notes.
2. Package Contents
+ M152 microphone
* 3 m XLR microphone cable — 6.3 mm mono jack
* 6.3 — 3.5 mm mono jack adapter
his operating instruction
.
t
Safety Notes
he product is intended for private, non-
commercial use only.
Protect the product from dirt, moisture and
overheating and use it in dry rooms only.
+ As with all electrical devices, this device should be
kept out of the reach of children.
Do not drop the product and do not expose it to
any major shocks.
Do not open the device or continue to operate it if
it becomes damaged.
Do not modify the device in any way. Doing so
voids the warranty.
.
.
5 Startup and Operation
* Ensure that the microphone is switched off.
nsert the XLR connector into the microphone's
XLR port and make sure that the socket protection
clicks firmly into place (Pic. 1).
Connect the 6.3 mm mono jack plug with your
erminal device's microphone input (Pic. 2). If
your terminal device has a 3.5 mm jack input for
microphones, use the included 3.5 mm mono jack
adapter (Pic. 3).
* Switch on the microphone (Pic. 4).
.
* Always position your microphone so that it is as
close to and as directly connected to the audio
source as possible.
Hold your microphone as still as possible to
prevent interference and wind noise.
Check the functionality and the transmitted
volume (sound check) before using the
microphone.
In case of feedback (loud screeching)
immediately switch off the microphone using
the integrated on/off switch. Then eliminate
the cause of the feedback, e.g. by reducing the
volume of the speakers or the input sensitivity
(gain or pad, where applicable) of your
microphone input, and/or moving somewhat
behind your speaker(s) before switching the
microphone back on.
5. Care and Maintenance
* Only clean this product with a slightly damp,
lint-free cloth and do not use aggressive cleaning
agents.
6. Warranty Disclaimer
Hama GmbH & Co. KG assumes no liability and
provides no warranty for damage resulting from
improper installation/mounting, improper use of
he product or from failure to observe the operating
instructions and/or safety notes.
7. Service and Support
Please contact Hama Product Consulting if you have
any questions about this product.
Hotline: +49 9091 502-115 (German/English)
Further support information can be found here:
www.hama.com
8. Technical Data
6000
—60 dB +/— 3 dB
3919
100 — 10.000 Hz
3m
Dynamic
6,3 mm
XLR Socket
6,3 mm/3,5 mm
Omnidirectional
9. Recycling Information
Note on environmental protection:
After the implementation of the European
Directive 2002/96/EU and 2006/66/EU in
the national legal system, the following
mmm
applies: Electric and electronic devices as
well as batteries must not be disposed of
with household waste. Consumers are obliged by law
to return electrical and electronic devices as well as
batteries at the end of their service lives to the public
collecting points set up for this purpose or point of
sale. Details to this are defined by the national law of
the respective country. This symbol on the product,
the instruction manual or the package indicates that
a product is subject to these regulations. By
recycling, reusing the materials or other forms of
utilising old devices/Batteries, you are making an
important contribution to protecting our
environment.
