3.2 Rear panel
4)
Fig. 3.2: Back of the UCA202
(5) Use the LINE-OUT jacks for audio cables with RCA connectors.
(6) Use the LINE-IN jacks for audio cables with RCA connectors.
(7) The OFF/ON-MONITOR switch activates the monitor
function. In this case the input signal is routed directly
to the headphones output.
All manuals and user guides at all-guides.com
(5)
(6)
4. Working with the UCA202
4.1 Application example
(7)
XENYX1204FX

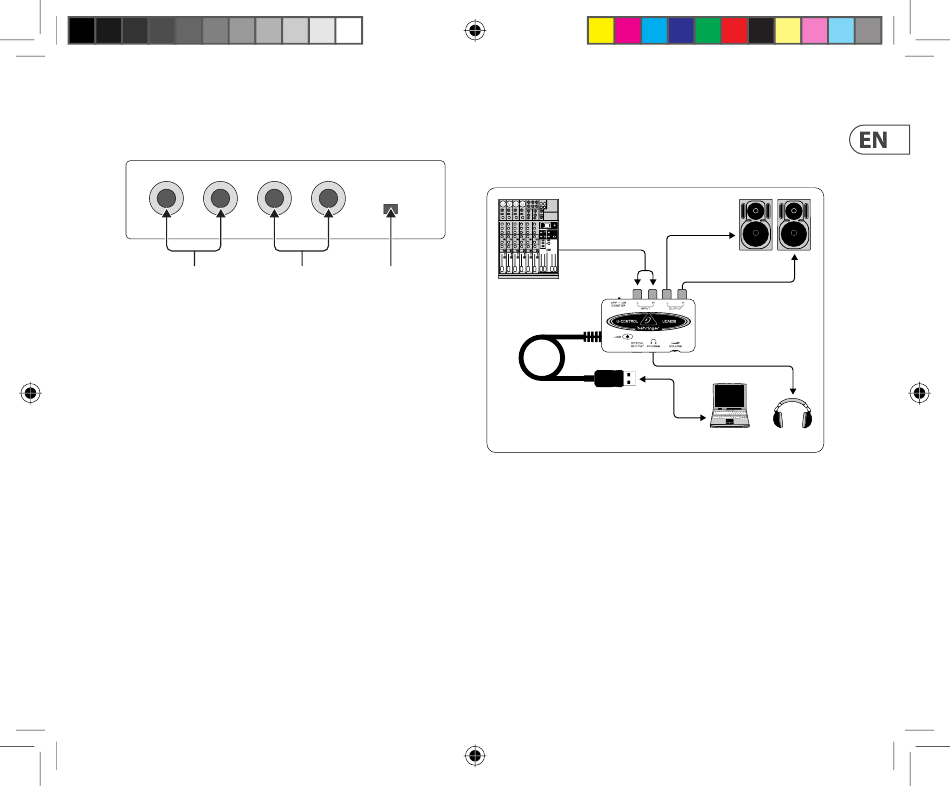

Fig. 4.1: Common version with the UCA202
TRUTH
B2031A
U-CONTROL
UCA202
Laptop
HPS3000
