UNPACKING INSTRUCTION
CAUTION! Carefully unpack the box upon receipt. Check the contents to ensure that all parts are present and have been
received in good condition. Notify the shipper immediately and retain packaging material if any parts appear damaged from
shipping or the package itself shows signs of mishandling. Save the package and all packaging materials. If the product must be
returned, it is important that the product is returned in the original factory box and packaging. If the device has been exposed to
drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might
damage your device. Leave the device switched off until it has reached room temperature.
POWERSUPPLY
The label on the back/under side of the product indicates the mains voltage to which it must be connected. Check that the mains
voltage corresponds to this. Any other voltage than the one indicated may cause irreparable damage to the unit. The unit must
also be connected directly to the mains voltage and no dimmer or adjustable power supply may be used.
Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate
electrical ground to avoid the risk of electrocution or fire.

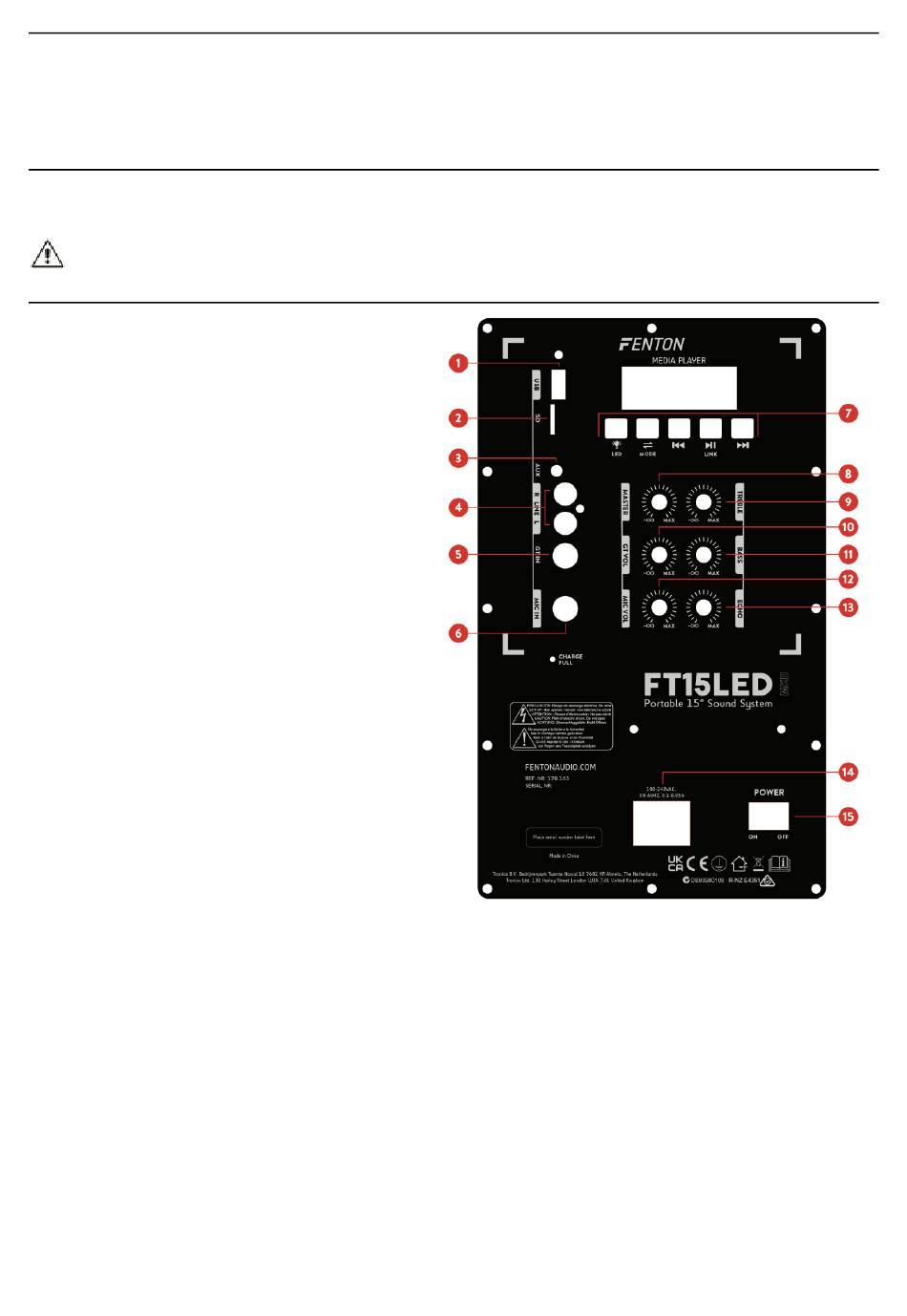

CONTROLS AND CONNECTIONS
1. USB Port
Connect your USB device to this slot to play music with
MP3 or WMA format
2. SD Port
Slot to insert Micro SD
3. AUX
3,5 mm Jack input for connecting units with line level
(CD/MP3/DVD player/HI-Fi system, PC)
4. LINE INPUT
RCA jack input for connecting units with line level
(mixer/CD player/ tape recorder
5. Guitar
6,3 mm jack for connecting a guitar
6. MIC IN
6,3 mm jack for connecting a microphone
7. Mediaplayer controls:
LED
Press this button to switch between different LED
modes
Press and hold this button to switch the light mode
on/off
MP3/AUX/BT-MODE
Press button to switch between the different modes
Press and hold to disconnect the BT
Previous track / VOL-
Press this button for previous track in MP3/BT mode
Press and hold this button to decrease volume
Play/Pause
Press this button to pause/play in MP3/BT mode
Press and hold this button to enable stereo pair(LINK)
in BT mode
Next track / VOL +
Press this button for next track in MP3/BT
Press and hold this button to increase volume in
MP3/BT mode
8. Master Volume
Rotate this knob to adjust the overall output level of the portable sound system
9. Trebble
Rotate to adjust the high tones
10. Guitar Volume
Rotate this knob to adjust the signal level of the guitar input
11. Bass
Rotate this knob to adjust the low tones
12. MIC VOL
Rotate this knob to adjust the Microphone volume level
13. ECHO
Rotate this knob to adjust the Echo level
14. AC connection and fuse holder
This connector is used to supply main power to the unit. For instructions on how to change the fuse (bottom), see
"Replacing the fuse"
15. Power switch
Switch to turn the power on/off
