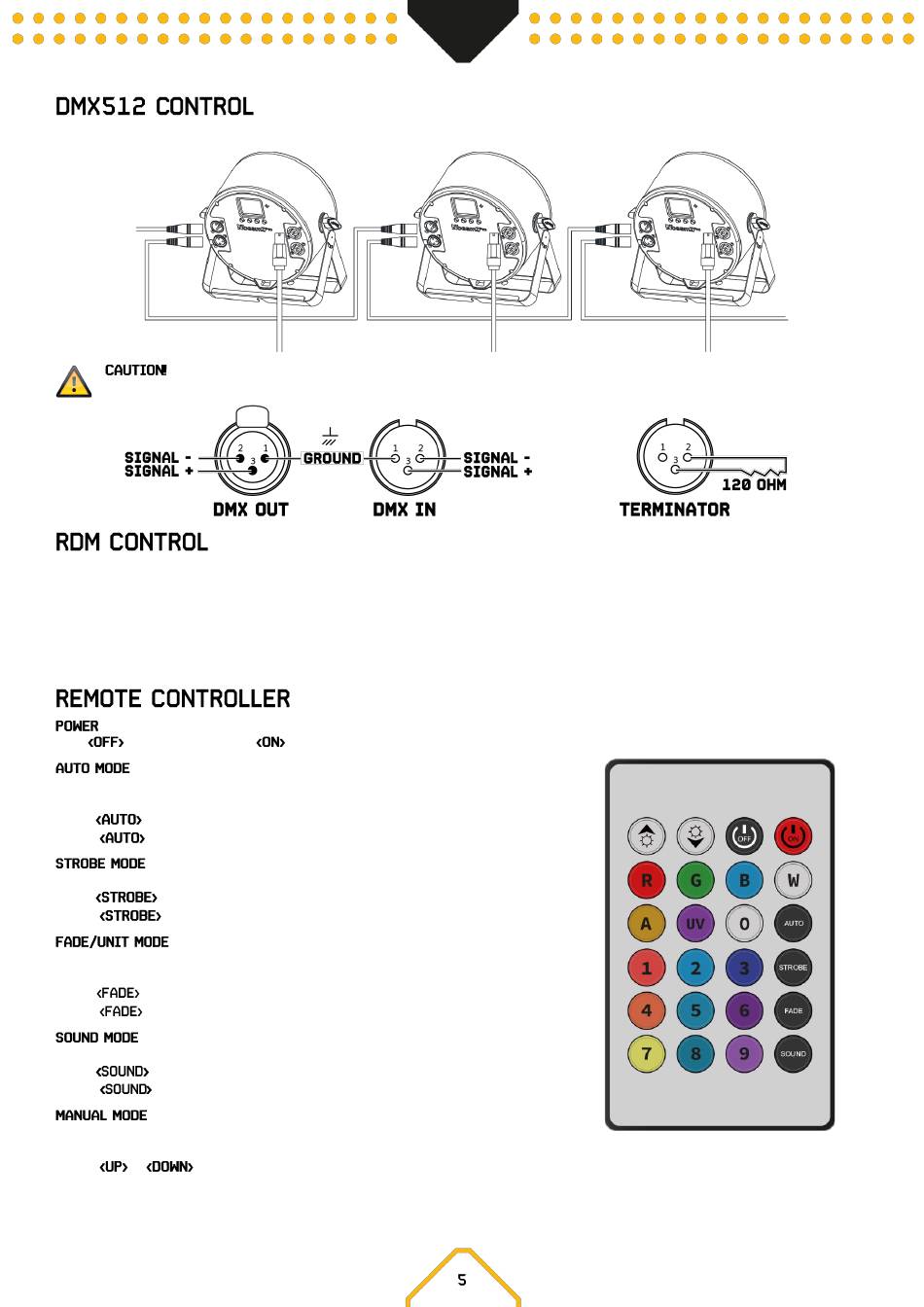

If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain.
Always connect the output of one unit with the input of the next unit until all units are connected.
At the last unit, you must close the DMX line with a terminating resistor. Take an XLR connector and solder a 120 Ohm resistor
between signal (-) and signal (+) and connect it to the DMX output of the last unit in the line.
This unit can communicate using RDM (Remote Device Management) via DMX512. RDM is a bi-directional communication protocol for use in DMX512
control systems, it is the open standard for DMX512 configuration and status monitoring.
The RDM protocol allows data packets to be inserted into a DMX512 line without affecting the existing non-RDM equipment. The system allows a controller
or special RDM controller to send and receive commands from specific fixtures.
The RDM function allows you, for example to remotely set the DMX start address of your fixtures. This is especially useful when the fixture is installed in an
inaccessible location. Each unit has an RDM UID (unique identification number).
Press
to existing modes. Press
Automatic mode will enable you to run the automatic programs on the product.
To turn on Automatic mode:
1. Press
on the remote controller.
2. Press
to turn off auto mode.
To adjust the strobe speed of the automatic program and the sound active program.
1. Press
on the remote controller.
2. Press
Again to stop this function.
To adjust the FADE speed of the automatic program, the sound active program and the manual
mode.
1. Press
on the remote controller.
2. Press
again to stop this function.
To enable /disable the sound mode,
1. Press
on the remote controller.
2. Press
again to stop this function.
1. Press one of the colours on the remote controller.
3. Press again to close your colour.
4. Press
or
to either increase or decrease the percentage of each colour.
for power on.
