PrecisionCross-Laser PCL 6P RX
A
B
D
G
Working with the laser receiver RX:
For levelling over longer distances or in conditions of bright light, use the
laser receiver RX. Switch on with button D; control lamp A will light up.
Important: Set the PCL 6P to hand receiver mode (button 13). The laser lines
will now pulsate with high frequency (10 kHz), making the laser lines darker.
The laser receiver can detect these pulsating laser lines up to a maximum
distance of 50 m.
Now move the receiver field (F) of the laser receiver through the laser lines
upwards and downwards (horizontal laser line) and/or sideways (vertical laser
line) until the centre LED (G) lights up. Now mark the horizontal and/or verti-
cal reference dimension.
Adjust the sensitivity of the laser receiver with button B. Green LED (C) for
close-range working up to max. 15 m, red LED (C) for distance-range
working up to max. 50 m. The sound can be switched on or off with button
E.
Note:
The light intensity of the laser lines is highest in the middle and lessens
towards the edges. The maximum range of the laser receiver therefore also
changes accordingly: Green LED max. 7 – 15 m, red LED max. 30 – 50 m.
12
All manuals and user guides at all-guides.com

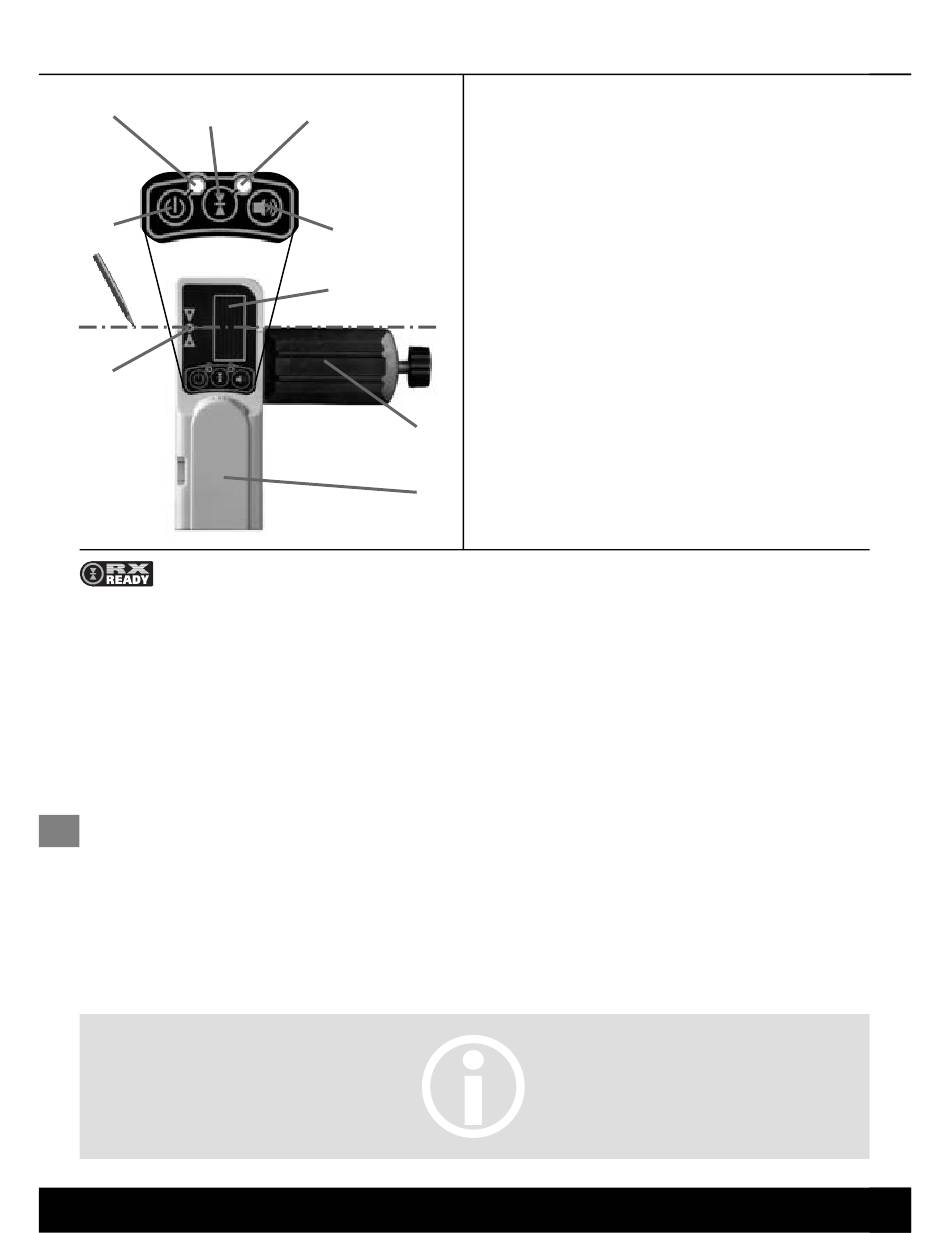

A Power indicator
C
B Switch accuracy
C LED for accuracy
E
D ON / OFF switch
F
E Sound ON / OFF
F Receiver field for laser beam
G LED's for Laserindication (front,
H
H Universal mount
I
I
ENGLISH
short range / long range
green / red
side, backside)
Battery compartment (backside)
