Gerelateerde Handleidingen voor Hansgrohe Exafill 58127 Series

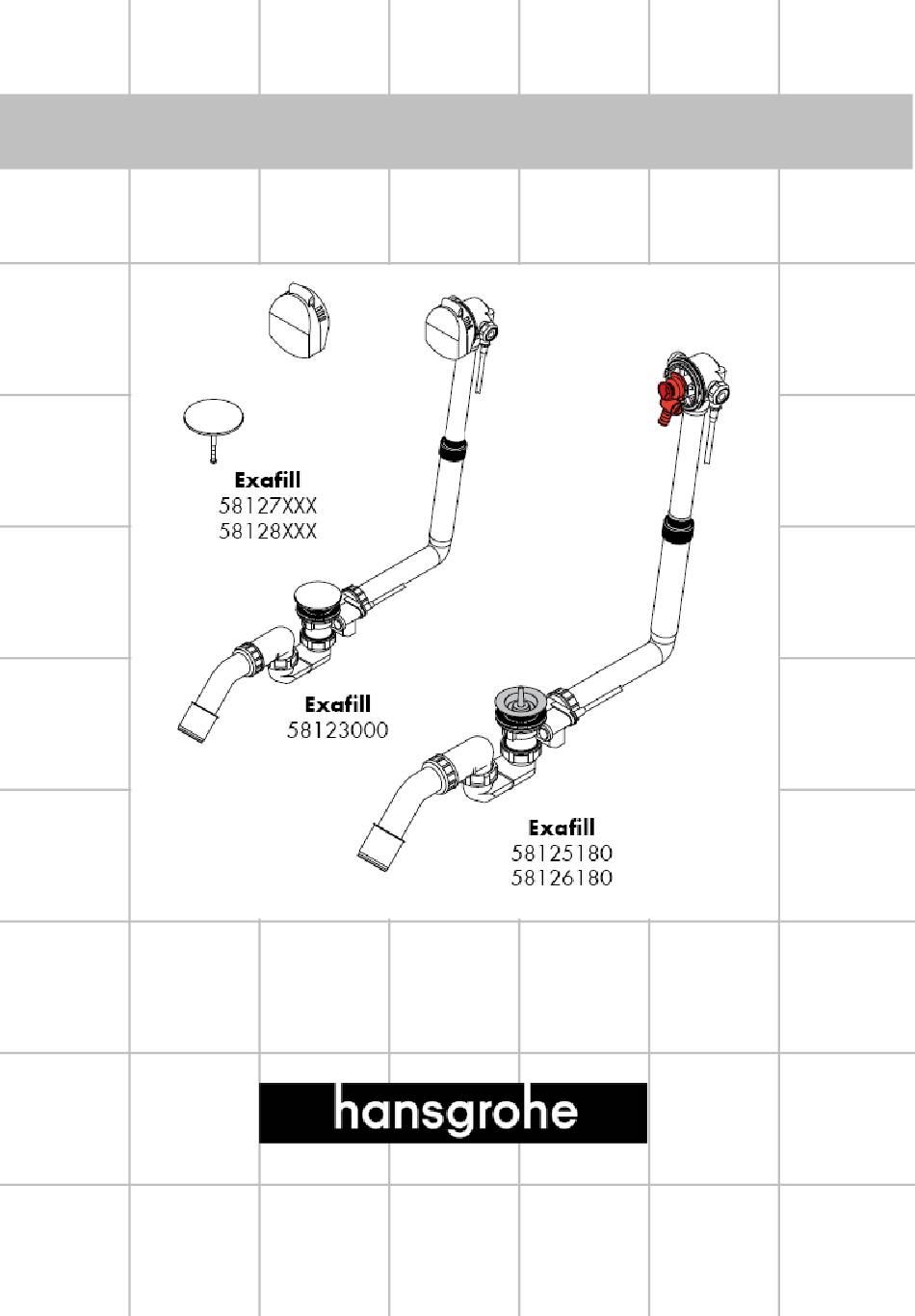

Samenvatting van Inhoud voor Hansgrohe Exafill 58127 Series
- Pagina 1 All manuals and user guides at all-guides.com Deutsch Montageanleitung...
- Pagina 2 All manuals and user guides at all-guides.com...
- Pagina 3 All manuals and user guides at all-guides.com Bei der Montage der iBox universal mit Mitte Badewanne integrierter Sicherungskombination (HD) ist darauf zu achten, dass die Mitte der Armatur min. 280 mm über dem Wannenrand liegt. (siehe nebenstehende Skizze). Bei der Montage anderer Unterputzarmaturen als die iBox universal, muss nach DIN EN 1717 der Rohrunterbrecher (DB) min.
- Pagina 4 All manuals and user guides at all-guides.com Grundset Montage öffnen Probeeinlauf schließen...
- Pagina 5 All manuals and user guides at all-guides.com Montage • Wasser abstellen • Wanne mit Exafill montieren und mit Leitungssystem verbinden • Probefüllen der Wanne. • Spülen der Leitungen (Mischer geöffnet - Probeeinlauf geöffnet) (Abb. 2) • Druckprüfung der Leitung zwischen Mischer und Probeeinlauf (Probeeinlauf geschlossen - Mischer geöffnet) (Abb.
- Pagina 6 All manuals and user guides at all-guides.com Montage Farbset offen geschlossen...
- Pagina 7 All manuals and user guides at all-guides.com...
- Pagina 8 810 satinox 21. Montageschlüssel 58085000 880 edelmatt Prüfzeichen DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 9 All manuals and user guides at all-guides.com Français Instructions de montage...
- Pagina 10 All manuals and user guides at all-guides.com...
- Pagina 11 All manuals and user guides at all-guides.com Lors du montage de iBox universal avec Centre de la combinaison de sécurité (HP), veiller à ce que baignoire l'axe de la robinetterie se trouve au moins à 280 mm au-dessus du bord de la baignoire. (Voir le schéma ci-contre) Pour le montage d’un autre corps d’encastrement que l’iBox universal, il faut...
- Pagina 12 All manuals and user guides at all-guides.com Kit de base Montage ouvert Bec pour essai fermé...
- Pagina 13 All manuals and user guides at all-guides.com Montage • Couper l´arrivée d´eau • Monter la baignoire avec l´exafill et raccorder la tuyauterie • Tester la baignoire en la remplissant • Rincer les conduites (Mitigeur ouvert - Bec pour essai ouvert) (Fig. 2) •...
- Pagina 14 All manuals and user guides at all-guides.com Set de finition ouvert fermé...
- Pagina 15 All manuals and user guides at all-guides.com...
- Pagina 16 880 chromé mat Classification acoustique et débit DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 17 All manuals and user guides at all-guides.com English assembly instructions...
- Pagina 18 All manuals and user guides at all-guides.com...
- Pagina 19 All manuals and user guides at all-guides.com When assembling the iBox universal with Center bath tub integrated safety combination (HD) pay attention that the middle of the mixer is min. 280 mm above the upper edge of the bath tub. When installing a different flush-type fitting than the iBox universal, DIN EN 1717 requires the pipe interruptor (DB) to be at least 150 mm...
- Pagina 20 All manuals and user guides at all-guides.com basic kit Assembly open Test infeed close...
- Pagina 21 All manuals and user guides at all-guides.com Assembly • turn off water • Install tub with Exafill and connect to pipe system • Testfilling of the bath tub. • Flushing of the pipes. (mixer open - test inlet open) (Fig. 2) •...
- Pagina 22 All manuals and user guides at all-guides.com Colour set installation open closed...
- Pagina 23 All manuals and user guides at all-guides.com...
- Pagina 24 21. special tool 58085000 880 satin chrome Test certificate DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 25 All manuals and user guides at all-guides.com Italiano Istruzioni per Installazione...
- Pagina 26 All manuals and user guides at all-guides.com...
- Pagina 27 All manuals and user guides at all-guides.com Quando si installa l'Ibox Universal con gli arresti Centro vasca di sicurezza, occorre fare attenzione che la metà del gruppo vasca incasso sia circa 280 mm sopra il bordo della vasca (come da immagine) Al montaggio di altre armature sotto intonaco che lo iBox universal, secondo DIN EN 1717 l'interruttore tubi (DB) deve giacere almeno di...
- Pagina 28 All manuals and user guides at all-guides.com corpo base Montaggio aperto Entrata prova chiudere...
- Pagina 29 All manuals and user guides at all-guides.com Montaggio • Chiudere l’ acqua • Installare la vasca con Exafill e collegare la tubazione • Riempire la vasca • Far scorrere l'acqua nel tubo (Miscelatore aperto - entrata prova aperta) (Fig. 2) •...
- Pagina 30 All manuals and user guides at all-guides.com Montaggio kit colorato aperta chiusa...
- Pagina 31 All manuals and user guides at all-guides.com...
- Pagina 32 21. chiave per montaggio 58085000 880 satinato Segno di verifica DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 33 All manuals and user guides at all-guides.com Español Instrucciones de montaje...
- Pagina 34 All manuals and user guides at all-guides.com...
- Pagina 35 All manuals and user guides at all-guides.com Montando la iBox universal con combinación de Centro de la bañera seguridad integrada (HD), procure que el centro de la grifería se encuentre al menos 280 mm encima del borde de la bañera (ver cróquis). Para el montaje de otros grifos empotrados distintos de los iBox universal, según DIN EN 1717 el interruptor de tubo (DB) debe estar...
- Pagina 36 All manuals and user guides at all-guides.com Kit base Montaje abierto Marcha de prueba cerrar...
- Pagina 37 All manuals and user guides at all-guides.com Montaje • Cerrar el agua • Montar la bañera con el Exafill y conectar al agua • Llenar la bañera de prueba • Limpiar lavando los conductos (Mezclador abierto - marcha de prueba abierta) (Fig. 2) •...
- Pagina 38 All manuals and user guides at all-guides.com Montaje Kit de colores abierto cerrar...
- Pagina 39 All manuals and user guides at all-guides.com...
- Pagina 40 810 satinox 880 satinado Marca de verificación DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 41 All manuals and user guides at all-guides.com Nederlands Handleiding...
- Pagina 42 All manuals and user guides at all-guides.com...
- Pagina 43 All manuals and user guides at all-guides.com Bij de montage van de iBox universal met Midden bad geïntegreerde zekerheidscombinatie moet men erop letten, dat de kraan minimaal 280mm boven de badrand wordt geplaatst. Bij de montage van andere inbouwkranen dan de iBox universal moet de buisbeluchter conform DIN EN 1717 (DB) min.
- Pagina 44 All manuals and user guides at all-guides.com Basisset Montage open Testuitloop sluiten...
- Pagina 45 All manuals and user guides at all-guides.com Montage • Water afsluiten • Exafill garnituur monteren en aan leiding verbinden • Testvullen van de badkuip • Doorspoelen van de leidingen (mengkraan open - testuitloop open) (afb. 2) • Testen van de leidingdruk tussen de kraan en de testuitloop (testuitloop gesloten - kraan geopend) (Afb.
- Pagina 46 All manuals and user guides at all-guides.com Montage eindset open gesloten...
- Pagina 47 All manuals and user guides at all-guides.com...
- Pagina 48 810 satinox 21. montagesleutel 58085000 880 mat Keurmerk DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 49 All manuals and user guides at all-guides.com Dansk Monteringsvejledning...
- Pagina 50 All manuals and user guides at all-guides.com...
- Pagina 51 All manuals and user guides at all-guides.com Ved montering af iBox universal med integreret Midt badekar sikringskombination (HD) skal der tages hensyn til, at armaturens midte ligger min. 280 mm over karrets kant. (Se skitse ved siden) Bij de montage van andere inbouwkranen dan de iBox universal moet de buisbeluchter conform DIN EN 1717 (DB) min.
- Pagina 52 All manuals and user guides at all-guides.com Basis-sæt Montering åbne Prøvekørsel lukke...
- Pagina 53 All manuals and user guides at all-guides.com Montering • Luk for vandet • Exafill monteres på karet og ledningssystemet forbindes • Opfyldning (test) af karret. • Skylning af ledninger (Blanderen åbnet - prøveindtag åbnet (Fig. 2) • Trykkontrol af ledning mellem blander og prøveindtag (prøveindtag lukket - blanderen åbnet) (fig.
- Pagina 54 All manuals and user guides at all-guides.com Montering farvesæt åben lukket...
- Pagina 55 All manuals and user guides at all-guides.com...
- Pagina 56 810 Satinox 21. Monteringsnøgle 58085000 880 Matkrom Godkendelse DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 57 All manuals and user guides at all-guides.com Português Manual de Instalación...
- Pagina 58 All manuals and user guides at all-guides.com...
- Pagina 59 All manuals and user guides at all-guides.com Durante a montagem da iBox universal com Meio da banheira combinação de segurança integrada (HD) deve ter-se em atenção que o centro da misturadora se situe pelo menos. 280 mm acima do topo da banheira.(ver desenho ao lado) Durante a montagem da restante valvularia embutida, excepto a iBox universal, a válvula...
- Pagina 60 All manuals and user guides at all-guides.com Corpo base Montagem abrir Entrada de ensaio fechar...
- Pagina 61 All manuals and user guides at all-guides.com Montagem • Cortar a água • Instalar a Exafill e ligá-la ao sistema de canalização • Enchimento de teste da banheira. • Lavagem das tubagens (misturador aberto - entrada de ensaio aberta) (fig. 2) •...
- Pagina 62 All manuals and user guides at all-guides.com Montagem do conjunto de cores aberto fechado...
- Pagina 63 All manuals and user guides at all-guides.com...
- Pagina 64 58085000 880 cromado mate Marca de controlo DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 65 All manuals and user guides at all-guides.com Polski Instrukcja montażu...
- Pagina 66 All manuals and user guides at all-guides.com...
- Pagina 67 All manuals and user guides at all-guides.com Przy montażu iBox universal z wbudowaną rodek wanny kombinacją zabezpieczającą (HD) należy zwrócić uwagę na to, by środek armatury znajdował się przynajmniej 280 mm ponad krawędzią wanny. (patrz szkic obok). Przy montażu innych elementów armatury podtynkowej niż...
- Pagina 68 All manuals and user guides at all-guides.com Zestaw podstawowy Montaż otworzyć Wlot próbny zamknąć...
- Pagina 69 All manuals and user guides at all-guides.com Montaż • Zakręcić wodę • Zamontować wannę z Exafill – połączyć z instalacją • Próbne napełnienie wanny. • Płukanie przewodów (Mieszalnik otwarty - Wlot próbny otwarty) (rys. 2) • Kontrola ciśnienia w przewodzie między mieszaczem a wlotem próbnym (mieszacz otwarty –...
- Pagina 70 All manuals and user guides at all-guides.com Zestaw kolorów montażowych otwarty zamknięty...
- Pagina 71 All manuals and user guides at all-guides.com...
- Pagina 72 21. Klucz montażowy 58085000 880 chrom mat Znak jakości DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 73 All manuals and user guides at all-guides.com Česky Montážní návod...
- Pagina 74 All manuals and user guides at all-guides.com...
- Pagina 75 All manuals and user guides at all-guides.com Při montáži "iBox universal" s integrovanou Střed koupací vany bezpečnostní kombinací (HD) je nutno dbát na to, aby byl střed armatury min. 280 mm na okrajem vany (viz náčrtek vedle). Při montáži jiných armatur pod omíntku než je iBox universal, musí...
- Pagina 76 All manuals and user guides at all-guides.com základní souprava Montáž otevřít Zkušební přívod zavřít...
- Pagina 77 All manuals and user guides at all-guides.com Montáž • Vodu odpojit • Vanu s Exafillem namontovat a spojit s potrubním systémem • Zkušební naplnění vany. • vypláchnout vedení (směšovač otevřen - zkušební přívod otevřen) (obr. 2) • Tlaková zkouška potrubí mezi baterií a zkušebním vtokem (Zkušební...
- Pagina 78 All manuals and user guides at all-guides.com Montáž barevné soupravy otevřeno zavřeno...
- Pagina 79 All manuals and user guides at all-guides.com...
- Pagina 80 21. montážní klíč 58085000 880 matný chrom zkušební značka DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 81 All manuals and user guides at all-guides.com Slovensky Montážny návod...
- Pagina 82 All manuals and user guides at all-guides.com...
- Pagina 83 All manuals and user guides at all-guides.com Pri montáži iBox universal s integrovanou Stred vane kombináciou istenia (HD) dbať na to, aby bol stred batérie min. 280 mm nad horným okrajom vane. Pri montáži iných armatúr pod omietkou, napr. iBox universal, musí podľa DIN EN 1717 nad okrajom steny ležať...
- Pagina 84 All manuals and user guides at all-guides.com základná súprava Montáž otvoriť Skúšobný vstup uzavrieť...
- Pagina 85 All manuals and user guides at all-guides.com Montáž • Odpojiť vodu • Vaňu s EXAFILLom namontovať a spojiť s potrubným systémom • Skúšobné naplnenie vane. • Vypláchnutie vedení. (Miešadlo otvorené - skúšobný vstup otvorený) (obr. 2) • Tlaková skúška potrubia medzi batériou a snímačom (Skúšobný...
- Pagina 86 All manuals and user guides at all-guides.com Montážna sada farieb otvorené zatvorené...
- Pagina 87 All manuals and user guides at all-guides.com...
- Pagina 88 58085000 880 matný chróm Osvedčenie o skúške DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 89 All manuals and user guides at all-guides.com 中文 组装说明...
- Pagina 90 All manuals and user guides at all-guides.com...
- Pagina 91 All manuals and user guides at all-guides.com 组装iBox 槽中间 universal及整体式安全组合（HD）时请注意，龙 头的中间在浴盆上沿上方至少280 mm。 不同的暗式电枢作为iBox universal安装时，必须遵守德国工业标准1717， 管道断续器（DB）至少超出槽边150mm。...
- Pagina 92 All manuals and user guides at all-guides.com 基础套件 安装 开 试运行 关...
- Pagina 93 All manuals and user guides at all-guides.com 安装 • 关闭水流 • 使用下水组件安装槽并连接导通系统 • 浴盆试装满 • 冲洗管道。 （开启混合装置- 开启试运行）（第2节） • 龙头和嵌入式插头之间管道的压力测试 （关闭取样进水管 － 混合器已打开）（参见图3） 最大压力为1兆帕压力检测最长10分钟 • 检查安装的密封度（第4节） • 然后再次连接混合装置！ Ibox与下水部件组合，配备出水组件及溢流组件 • 在分层截流装置处截流水 • 拆卸清洗端 • 针对下水，在出口使用堵头（A） • 安装清洗端 • 可以再次开启水，使用堵头堵住下水导通装 置 压力检测时要注意剩余的水射流。在压力检测后...
- Pagina 94 All manuals and user guides at all-guides.com 安装颜色组件 敞开 已关闭...
- Pagina 95 All manuals and user guides at all-guides.com...
- Pagina 96 97567000 880 铬压光 22. 专用工具 58085000 检验标记 DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 97 All manuals and user guides at all-guides.com Русский Инструкция по монтажу...
- Pagina 98 All manuals and user guides at all-guides.com...
- Pagina 99 All manuals and user guides at all-guides.com При монтаже iBox universal с встроенной середина ванны предохраняющей комбинацией (HD) необходимо следить за тем, чтобы середина арматуры находилась на высоте мин. на 280 мм выше края ванны. (см. эскиз рядом). При монтаже других арматур для скрытого монтажа, кроме...
- Pagina 100 All manuals and user guides at all-guides.com Основной комплект Монтаж открыть пробный впуск закрыть...
- Pagina 101 All manuals and user guides at all-guides.com Монтаж • Закройте воду • смонтируйте ванну с Exafill и соедините с системой трубопроводов • Пробное наполнение ванны • Промывка трубопроводов (смеситель открыт – пробный впуск открыт) (рис. 2) • Проверка давления трубопровода между смесителем...
- Pagina 102 All manuals and user guides at all-guides.com монтаж цветового комплекта открыт закрыт...
- Pagina 103 All manuals and user guides at all-guides.com...
- Pagina 104 810 сатинокс 880 матовый Знак технического контроля DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 105 All manuals and user guides at all-guides.com Magyar Szerelési útmutató...
- Pagina 106 All manuals and user guides at all-guides.com...
- Pagina 107 All manuals and user guides at all-guides.com A beépített biztonsági kombinációval (HD) ellátott A kád közepe iBox universal szerelésekor arra kell ügyelni, hogy a csaptelep közepe legalább 280 mm-rel a kád pereme felett feküdjön. (lásd a mellékelt vázlatot). Az iBox universalon kívüli egyéb vakolat alá szerelhető...
- Pagina 108 All manuals and user guides at all-guides.com Alapszett Szerelés nyitás Próbabeömlés bezárás...
- Pagina 109 All manuals and user guides at all-guides.com Szerelés • Zárjuk el a vizet • Szereljük fel a kádra az Exafill-t, és kössük össze a vezetékrendszerrel. • A kád próbatöltése. • A vezetékek öblítése (Keverő nyitva - próbabeömlő nyitva) (2. ábra) •...
- Pagina 110 All manuals and user guides at all-guides.com Festékkészlet szerelése nyitva zárva...
- Pagina 111 All manuals and user guides at all-guides.com...
- Pagina 112 810 satinox 21. Szerelőkulcs 58085000 880 mattkróm Vizsgajel DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 113 All manuals and user guides at all-guides.com Suomi Asennusohje...
- Pagina 114 All manuals and user guides at all-guides.com...
- Pagina 115 All manuals and user guides at all-guides.com Asennettaessa iBox universal:ia, jossa on Ammeen keskusta integroitu turvayhdistelmä (HD), on huomioitava, että kalusteen keskipiste on min. 280 mm kylpyammeen reunan yläpuolella. (katso oheista kuvaa). Kun käytetään muita seinään upotettua armatuureja kuin iBox universal, on käytettävä DIN EN 1717 mukaisesti sulkuhanaa (DB), joka on vähintään 150 ammeen reunan yläpuolella.
- Pagina 116 All manuals and user guides at all-guides.com Perussarja Asennus avaaminen Testausulostulo sulkeminen...
- Pagina 117 All manuals and user guides at all-guides.com Asennus • Sulje vedentulo • Asenna Exafill:illä varustettu amme ja yhdistä putkistojärjestelmään • Ammeen koetäyttö • Johdotusten huuhtelu (Sekoitin avattuna - testausulostulo avattuna) (kuva 2) • Sekoittimen ja ammeen täyttöaukon välisessä putkessa olevan paineen mittaus. (koesisääntulo suljettu - sekoitin avattu) (kuva 3) Maksimi paine 1 MpaPainetestaus maks.
- Pagina 118 All manuals and user guides at all-guides.com Värisetin asennus auki suljettu...
- Pagina 119 All manuals and user guides at all-guides.com...
- Pagina 120 21. Asennusavain 58085000 880 jalomatta kromi Koestusmerkki DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 121 All manuals and user guides at all-guides.com Svenska Monteringsanvisning...
- Pagina 122 All manuals and user guides at all-guides.com...
- Pagina 123 All manuals and user guides at all-guides.com När iBox universal med integrerad Mitt på badkar säkerhetskombination (HD) monteras är det viktigt att mitten på blandaren befinner sig min. 280 mm över karkanten. (se vidstående bild). Vid montering av andra underputsarmaturer än iBox universal måste vattenlåset (DB) ligga minst 150 mm över karkanten enligt DIN EN 1717.
- Pagina 124 All manuals and user guides at all-guides.com Grundset Montering öppna Testinlopp stänga...
- Pagina 125 All manuals and user guides at all-guides.com Montering • Stäng av vattnet • Montera kar med Exafill och anslut till ledningssystem • Testfyll karet. • Spola ledningarna (blandare öppen - testinlopp öppnat) (bild 2) • Tryckkontroll i ledningen mellan blandare och testinlopp.
- Pagina 126 All manuals and user guides at all-guides.com Montering färgset öppen stängd...
- Pagina 127 All manuals and user guides at all-guides.com...
- Pagina 128 810 satinox 21. Monteringsnyckel 58085000 880 ädelmatt Testsigill DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 129 All manuals and user guides at all-guides.com Lietuviškai Montavimo instrukcijos...
- Pagina 130 All manuals and user guides at all-guides.com...
- Pagina 131 All manuals and user guides at all-guides.com Montuojant "Ibox universal" su integruota Vonios vidurys apsaugos sistema (HD), atkreipkite dėmesį, kad maišytuvo vidurys turi būti ne žemiau kaip 280 mm virš viršutiniojo vonios krašto. (Žr. šalia pateikiamą brėžinį). Montuodami kitokią įleidžiamąją armatūrą nei iBox universal, pagal DIN EN 1717 vamzdžio sklendė...
- Pagina 132 All manuals and user guides at all-guides.com Pagrindinis komplektas Montavimas atidaryti Bandomoji eiga uždaryti...
- Pagina 133 All manuals and user guides at all-guides.com Montavimas • Išjungti vandens tiekimą • Su Exafill sumontuokite vonią ir prijunkite prie vamzdyno • Bandomasis vonios pripildymas. • Išplauti vamzdžius (atvertas maišytuvas - paleista bandomoji eiga) (2 pav.) • Slėgio tikrinimas tarp maišytuvo ir jungties. (Bandomasis įbėgimas uždarytas - maišytuvas atidarytas (3 pav.) Maks.
- Pagina 134 All manuals and user guides at all-guides.com Dažų rinkinio montavimas atidaryta uždaryta...
- Pagina 135 All manuals and user guides at all-guides.com...
- Pagina 136 880 chrominė matinė 21. Montavimo raktas 58085000 Bandymo pažyma DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 137 All manuals and user guides at all-guides.com Hrvatski Uputstva za instalaciju...
- Pagina 138 All manuals and user guides at all-guides.com...
- Pagina 139 All manuals and user guides at all-guides.com Kod instalacije iBox universal-a sa ugrađenom Sredina kade sigurnosnom kombinacijom (HD) pripazite da se sredina armature nalazi minimalno 280 mm iznad ruba kade (vidi skicu) Prilikom montaže drugih podžbuknih armatura osim iBox universal, ventil cijevi (DB) se u skladu s normom DIN EN 1717 mora nalaziti najmanje 150 mm iznad ruba kade.
- Pagina 140 All manuals and user guides at all-guides.com osnovna garnitura Sastavljanje Otvaranje zatvarač Zatvaranje...
- Pagina 141 All manuals and user guides at all-guides.com Sastavljanje • Zatvorite vodu • Montirajte kadu sa sklopom Exafill i priključite na vodovodnu mrežu. • Probno punjenje kade • Ispiranje slavina (ručica je otvorena - zatvarač je otvoren) (sl. 2) • Ispitati tlak u cijevi između mješalice i zatvarača (Probni dotok zatvoren - mješač...
- Pagina 142 All manuals and user guides at all-guides.com Montaža kompleta u boji otvoren zatvoren...
- Pagina 143 All manuals and user guides at all-guides.com...
- Pagina 144 21. ključ za montažu 58085000 880 matirani krom Oznaka testiranja DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 145 All manuals and user guides at all-guides.com Türkçe Montaj kılavuzu...
- Pagina 146 All manuals and user guides at all-guides.com...
- Pagina 147 All manuals and user guides at all-guides.com Entegre emniyet kombinasyonlu (HD) iBox Küvetin ortası universal'in montajı sırasında, batarya merkezinin küvet kenarından en az 280 mm yukarıda durmasına dikkat edilmelidir (Bkz. Yandaki çizim). Diğer sıva altı armatürlerin çok amaçlı iBox olarak montajı sırasında, DIN EN 1717 'ye göre boru kesicisi (DB) batarya kenarının en az 150 mm üzerinde durmalıdır.
- Pagina 148 All manuals and user guides at all-guides.com Ana set Montajı açmak Deneme çalışması kapatmak...
- Pagina 149 All manuals and user guides at all-guides.com Montajı • Suyu kesin • Exafill'li bataryayı takın ve hat sistemine bağlayın • Küveti deneme amaçlı doldurun. • Hatların yıkanması (Mikser açık - Deneme çalışması açık) (Şekil 2) • Miks batarya ve deneme girişi arasındaki hattın basınç...
- Pagina 150 All manuals and user guides at all-guides.com Boya setinin montajı açık kapalı...
- Pagina 151 All manuals and user guides at all-guides.com...
- Pagina 152 21. Montaj anahtarı 58085000 880 Mat/Krom Kontrol işareti DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 153 All manuals and user guides at all-guides.com Română Instrucţiuni de montare...
- Pagina 154 All manuals and user guides at all-guides.com...
- Pagina 155 All manuals and user guides at all-guides.com La montarea aparatului iBox universal cu Cadă de baie în combinaţie de securitare integrată (HD) aveţi mijloc grijă ca mijlocul bateriei să se afle cu min. 280 mm deasupra marginii vanei. (vezi schiţa alăturată). La montarea sub tencuială...
- Pagina 156 All manuals and user guides at all-guides.com Set de bază Montare deschide Introducerea materialelor de probă închide...
- Pagina 157 All manuals and user guides at all-guides.com Montare • Opriţi alimentarea cu apă • Se montează cada cu Exafill şi se racordeazăla sistemul de conducte • Test de umplere a căzii de baie. • Spălarea conductelor (Amestecătorul deschis – introducerea materialului de probă...
- Pagina 158 All manuals and user guides at all-guides.com Montarea setului de culori deschis închis...
- Pagina 159 All manuals and user guides at all-guides.com...
- Pagina 160 58085000 880 crom mat Certificat de testare DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 161 All manuals and user guides at all-guides.com Ελληνικά Οδηγία συναρμολόγησης...
- Pagina 162 All manuals and user guides at all-guides.com...
- Pagina 163 All manuals and user guides at all-guides.com Κατά τη συναρμολόγηση του iBox universal με Κέντρο μπανιέρας ενσωματωμένο συνδυασμό ασφαλείας (HD), θα πρέπει να δώσετε προσοχή, ώστε το μέσον της βάνας να προεξέχει από το χείλος της μπανιέρας κατά ελάχ. απόσταση 280 mm (βλ. το απέναντι σχήμα).
- Pagina 164 All manuals and user guides at all-guides.com Βασικό σετ Συναρμολόγηση ανοικτό Δοκιμαστική είσοδος νερού κλειστό...
- Pagina 165 All manuals and user guides at all-guides.com Συναρμολόγηση • Κλείστε την παροχή νερού • Εγκαταστήστε την μπανιέρα με Exafill και συνδέστε την με το σύστημα αγωγών. • Δοκιμαστική πλήρωση της μπανιέρας. • Καθαρισμός των αγωγών (Αναμίκτης ανοιχτός - Δοκιμαστική είσοδος νερού ανοιχτή) (εικ.
- Pagina 166 All manuals and user guides at all-guides.com Συναρμολόγηση έγχρωμου σετ Ανοιχτό Κλειστό...
- Pagina 167 All manuals and user guides at all-guides.com...
- Pagina 168 880 ματ 21. Kλειδί συναρμολόγησης 58085000 Σήμα ελέγχου DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 169 All manuals and user guides at all-guides.com ﻋﺮﺑﻲ ﻤﻴﻊ ﺗﻌﻠﻴﻤﺎت اﻟﺘﺠ...
- Pagina 170 All manuals and user guides at all-guides.com...
- Pagina 171 All manuals and user guides at all-guides.com ﻣﻊ ﻣﺠﻤﻮﻋﺔ اﻷﻣﺎن اﻟﻤﺘﻜﺎﻣﻠﺔ iBox universal ﻋﻨﺪ ﺗﺠﻤﻴﻊ ﻣﻨﺘﺼﻒ ﺣﻮض اﻻﺳﺘﺤﻤﺎم ﻳﺮﺟﻰ اﻻﻧﺘﺒﺎﻩ إﻟﻰ أن ارﺗﻔﺎع ﻣﻨﺘﺼﻒ اﻟﺨﻼط ﻋﻦ اﻟﺤﺎﻓﺔ اﻟﻌﻠﻴﺎ ﻟﺤﻮض . ﻣﻢ ﻳﺠﺐ أﻻ ﻳﻘﻞ ﻋﻦ اﻻﺳﺘﺤﻤﺎم "iBox ﻋﻨﺪ اﻟﻘﻴﺎم ﺑﺘﺮآﻴﺐ أﻳﺔ ﻟﻮازم ﺗﺮآﻴﺒﻴﺔ أﺧﺮى ﻏﻴﺮ وﺣﺪة ﻓﻮق...
- Pagina 172 All manuals and user guides at all-guides.com اﻟﺘﺮآﻴﺐ اﻟﻤﺠﻤﻮﻋﺔ اﻟﺮﺋﻴﺴﻴﺔ ﻓﺘﺢ اﻟﺘﺸﻐﻴﻞ اﻟﺘﺠﺮﻳﺒﻲ إﻏﻼق...
- Pagina 173 All manuals and user guides at all-guides.com اﻟﺘﺮآﻴﺐ • ﻗﻢ ﺑﺈﻳﻘﺎف اﻟﻤﻴﺎﻩ • ﺑﻴﺐ ووﺻﻠﻪ ﺑﺎﻷﻧﺎ Exafill ﻗﻢ ﺑﺘﺮآﻴﺐ اﻟﺤﻮض ﺑﻮﺣﺪة • اﺧﺘﺒﺎر اﻟﺒﺎﻧﻴﻮ ﻋﻨﺪ اﻻﻣﺘﻼء • ﻟﺒﺪء اﻟﺘﺸﻐﻴﻞ اﻟﺘﺠﺮﻳﺒﻲ ﻗﻢ ﺑﻔﺘﺢ اﻟﺨﻼط ﻏﺴﻴﻞ اﻟﻤﻮاﺳﻴﺮ 2 " اﻧﻈﺮ اﻟﺼﻮرة رﻗﻢ "...
- Pagina 174 All manuals and user guides at all-guides.com ﻣﺠﻤﻮﻋﺔ أﻟﻮان اﻟﻮﺣﺪة اﻟﻤﺮآﺒﺔ ﻣﻔﺘﻮح ﻣﻐﻠﻖ...
- Pagina 175 All manuals and user guides at all-guides.com...
- Pagina 176 آﺮوم أﻣﻠﺲ 58085000 ﻣﻔﺘﺎح اﻟﺘﺮآﻴﺐ ﺷﻬﺎدة اﺧﺘﺒﺎر DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 177 All manuals and user guides at all-guides.com Slovenski Navodila za montažo...
- Pagina 178 All manuals and user guides at all-guides.com...
- Pagina 179 All manuals and user guides at all-guides.com Pri montaži iBox universala z vgrajeno varnostno Sredina kopalne kadi kombinacijo (HD) je potrebno paziti, da leži sredina armature min. 280 mm čez rob kadi. (Glejte skice) Pri montaži drugih podometnih armatur kot iBox universal, mora po DIN EN 1717 cevno prekinjalo (DB) ležati najmanj 150 mm nad robom kadi.
- Pagina 180 All manuals and user guides at all-guides.com Osnovni komplet Montage odpreti Poskusni dotok zapreti...
- Pagina 181 All manuals and user guides at all-guides.com Montaža • Zaprite vodo. • Kopalno kad z Exafillom montirajte in povežite s cevovodnim sistemom • Testno polnjenje kadi • Izpiranje cevi (mešalni ventil odprt - poskusni dotok odprt) (sl. 2) • Testiranje tlaka v napeljavi med mešalno baterijo in poskusnim dotokom.
- Pagina 182 All manuals and user guides at all-guides.com Montaža barvna paleta odprto zaprto...
- Pagina 183 All manuals and user guides at all-guides.com...
- Pagina 184 21. Montažni ključ 58085000 880 krom mat Preskusni znak DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 185 All manuals and user guides at all-guides.com Estonia Paigaldusjuhend...
- Pagina 186 All manuals and user guides at all-guides.com...
- Pagina 187 All manuals and user guides at all-guides.com Ibox universal´it integreeritud Vanni keskkoht ohutuskombinatsioonigaühendades (HD) jälgige, et segisti kese oleks vähemalt 280 mm üle vanni serva (vt kõrvalolevat joonist). Paigaldades muid krohvialuseid armatuure kui iBox universal, peab torukatkesti (DB) vastavalt standardile DIN EN 1717 olema vähemalt 150 mm vanni servast kõrgemal.
- Pagina 188 All manuals and user guides at all-guides.com põhikomplekt Paigaldamine avage Proovitöö sulgege...
- Pagina 189 All manuals and user guides at all-guides.com Paigaldamine • Keerake vesi kinni • Paigaldage vann Exafill'iga ja ühendage torustikuga • Vanni proovitäitmine. • Torude loputamine (Segisti avatud - proovi pealevool avatud) (joonis 2) • Segisti ja uhtekorgi vaheliste torude survetest. (kontrollsissevool suletud – segisti avatud) (joon.
- Pagina 190 All manuals and user guides at all-guides.com Värvikomplekti montaaž avatud suletud...
- Pagina 191 All manuals and user guides at all-guides.com...
- Pagina 192 810 satinox 21. Montaaživõti 58085000 880 väärismatt Kontrollsertifikaat DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 193 All manuals and user guides at all-guides.com Latviski Montāžas instrukcija...
- Pagina 194 All manuals and user guides at all-guides.com...
- Pagina 195 All manuals and user guides at all-guides.com Montējot iBox universal ar integrēto drošības Vannas vidus kombināciju (HD) ir jāievēro, lai jaucējkrāna vidus atrastos min. 280 cm virs vannas malas. (skatīt blakus esošo skici) Montējot citu zemapmetuma armatūru, nevis iBox universal, atbilstoši DIN EN 1717 plūsmas pārtraucējam (DB) jāatrodas vismaz 150 mm pāri vannas malai.
- Pagina 196 All manuals and user guides at all-guides.com Pamatkomplekts Montāža atvērt Kontroles ieplūde aizvērt...
- Pagina 197 All manuals and user guides at all-guides.com Montāža • Noslēgt ūdeni • Uzmontējiet vannu ar Exafill un savienojiet ar cauruļvadu sistēmu • Dušas paliktņa kontrole, iepildot ūdeni. • Ūdens vada skalošana (Jaucējkrāns atvērts - kontroles ieplūde atvērta) (2. att.) • Spiediena pārbaude ūdens vadā...
- Pagina 198 All manuals and user guides at all-guides.com Krāsu komplekta montāža atvērts noslēgts...
- Pagina 199 All manuals and user guides at all-guides.com...
- Pagina 200 21. Montāžas atslēga 58085000 880 hromēts matēts Pārbaudes zīme DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 201 All manuals and user guides at all-guides.com Srpski Uputstvo za montažu...
- Pagina 202 All manuals and user guides at all-guides.com...
- Pagina 203 All manuals and user guides at all-guides.com Kada instalirate iBox universal s ugrađenom Sredina kade sigurnosnom kombinacijom (HD), pripazite da se sredina armature nalazi minimalno 280 mm iznad ivice kade. (vidi skicu). Kod montaže drugih armatura u zid, osim jedinice iBox universal, potrebno je da se u skladu sa normom DIN EN 1717 element za regulaciju pritiska u cevi vazduhom (DB) nalazi najmanje 150 mm iznad ivice kade.
- Pagina 204 All manuals and user guides at all-guides.com osnovna garnitura Montaža otvoriti probni dotok zatvori...
- Pagina 205 All manuals and user guides at all-guides.com Montaža • Zatvorite dotok vode • Montirajte kadu sa sklopom Exafill i priključite na vodovodni sistem. • Probno punjenje kade • Ispiranje cevi (mešač je otvoren - probni dotok je otvoren) (sl. 2) •...
- Pagina 206 All manuals and user guides at all-guides.com Montaža kompleta u boji otvoren zatvoren...
- Pagina 207 All manuals and user guides at all-guides.com...
- Pagina 208 21. ključ za montažu 58085000 880 zagasita Ispitni znak DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 209 All manuals and user guides at all-guides.com Norsk Montasjeveiledning...
- Pagina 210 All manuals and user guides at all-guides.com...
- Pagina 211 All manuals and user guides at all-guides.com Ved montering av iBox universal med integrert Midten av badekaret sikkerhetskombinasjon (HD) skal man påse at midten på armaturen minst 280 mm over badekarkanten. (se tegning ved siden av ). Ved montasje av andre innfelte armaturer enn iBox universal skal røravbryter (DB) iht.
- Pagina 212 All manuals and user guides at all-guides.com Basissett Montasje åpne Prøveinnløp lukke...
- Pagina 213 All manuals and user guides at all-guides.com Montasje • Slå av vann • Kar monteres med Exafill og kobles til ledningssystem • Prøvefylling av badekar. • Spyling av ledninger (Blandebatteri åpent - prøveinnløp åpent) (Bilde 2) • Trykkontroll av ledningen mellom blandebatteri og prøveinnløp (Prøveinnløp lukket - blandebatteri åpent) (Bilde 3) Trykk maks.
- Pagina 214 All manuals and user guides at all-guides.com Montasje fargesett åpen lukket...
- Pagina 215 All manuals and user guides at all-guides.com...
- Pagina 216 97567000 880 zagasita 21. Montasjenøkkel 58085000 Prøvemerke DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 217 All manuals and user guides at all-guides.com БЪЛГАРСКИ Ръководство за монтаж...
- Pagina 218 All manuals and user guides at all-guides.com...
- Pagina 219 All manuals and user guides at all-guides.com При монтажа на iBox universal с интегриран Среда на ваната комплект предпазители (HD) обърнете внимание на това, средата на арматурата да се намира мин. 280 мм над ръба на стената. (вижте съседната скица). При...
- Pagina 220 All manuals and user guides at all-guides.com Основен набор Монтаж отваряне Пробен входящ накрайник затваряне...
- Pagina 221 All manuals and user guides at all-guides.com Монтаж • Изключване на водата • Монтирайте ваната с Exafill и я свържете с водопроводната система • Пробно пълнене на ваната. • Промиване на тръбопроводите (Смесител отворен – пробен входящ накрайник отворен) (фиг. 2) •...
- Pagina 222 All manuals and user guides at all-guides.com Монтаж цветен набор отворен затворен...
- Pagina 223 All manuals and user guides at all-guides.com...
- Pagina 224 21. Монтажен ключ 58085000 880 zagasita Контролен знак DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
- Pagina 225 All manuals and user guides at all-guides.com Shqib Udhëzime rreth montimit...
- Pagina 226 All manuals and user guides at all-guides.com...
- Pagina 227 All manuals and user guides at all-guides.com Gjatë montimit të iBox universale me kombinim Mesi i vaskës të masave të integruara të sigurisë (HD) duhet pasur parasysh që mesi i armaturës të qëndrojë min. 280 mm mbi buzën e vaskës. (shih skicën e bashkëngjitur).
- Pagina 228 All manuals and user guides at all-guides.com Kompleti bazë Montimi hape Aktivizimi për provë mbylle...
- Pagina 229 All manuals and user guides at all-guides.com Montimi • Mbyllni ujin. • Montoni vaskën me Exafill dhe lidheni me tubacionin e ujit. • Mbushje për provë e vaskës. • Shpëlarja e lidhjeve (rubineti me ujë të përzieri i hapur - Aktivizimi për provë i hapur) ( Fig.
- Pagina 230 All manuals and user guides at all-guides.com Montimi i kompletit të ngjyrave hapur mbyllur...
- Pagina 231 All manuals and user guides at all-guides.com...
- Pagina 232 21. Çelësi i montimit 58085000 880 zagasita Shenja e kontrollit DVGW P-IX SVGW WRAS KIWA 58123000 58125180 58126180 58127XXX 58128XXX Hansgrohe · Postfach 1145 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
