ASSEMBLY OF THE CROSSBASE
x2B
PG

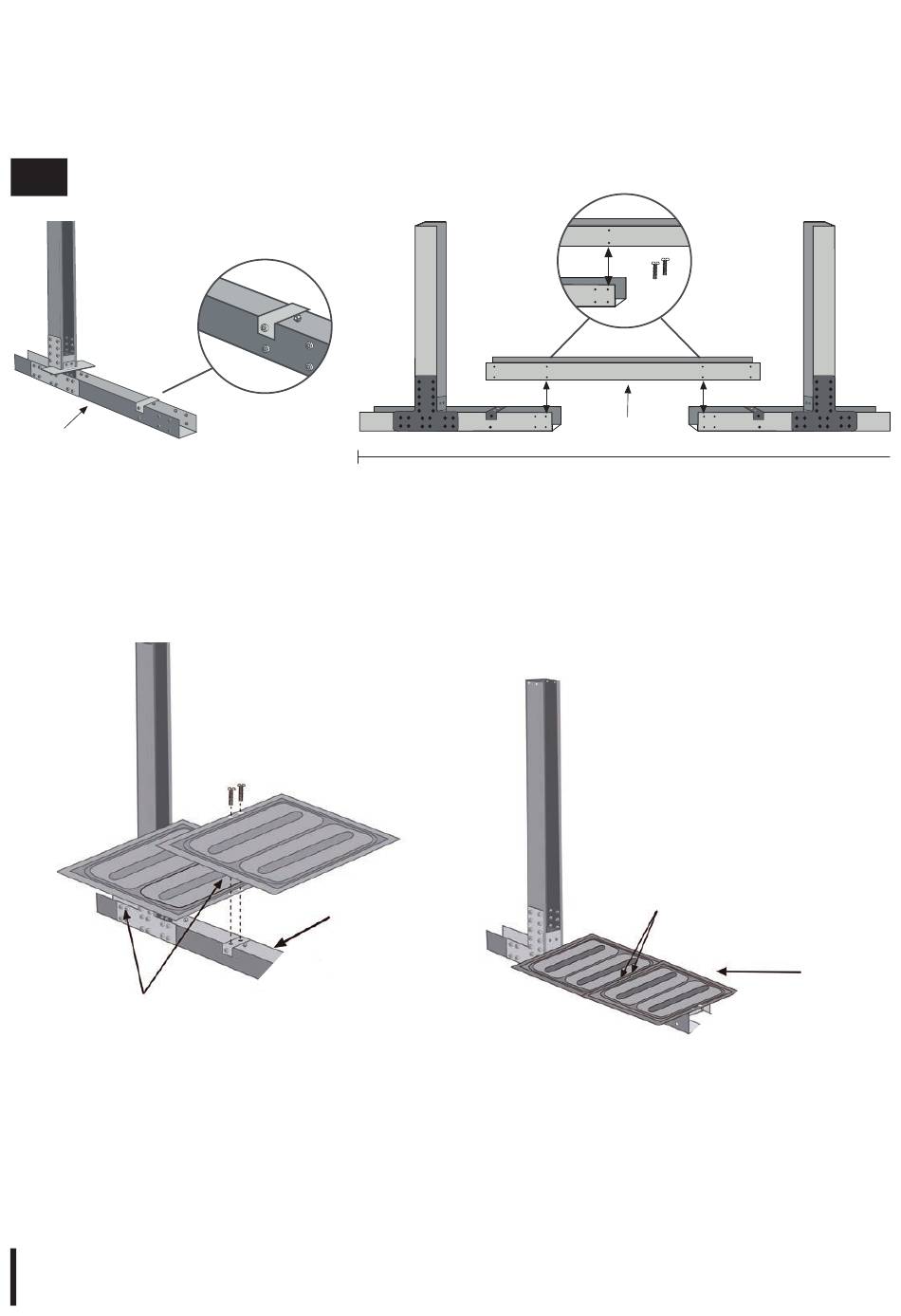

• Take the crossbar Part type E and fi x the PG crossbar and the TV bolts.
NOTE: there is only one crossbar between the PG crossbars (Part E).
AP
Place the fl ap AP so that it coincides with its two holes with those of the PEU part (the closest to the part PV1185).
Then, place the other AP fl ap and fi x them with two bolts TM640 (place the AP fl aps after having introduced the support
into the previously prepared ditch).
50
AND THE COLUMS
TM640
x2
PG
CN
E
±2380
TM640
x2
AP x2
