Bosch CCA 47 Gebruiksaanwijzing pagina 117

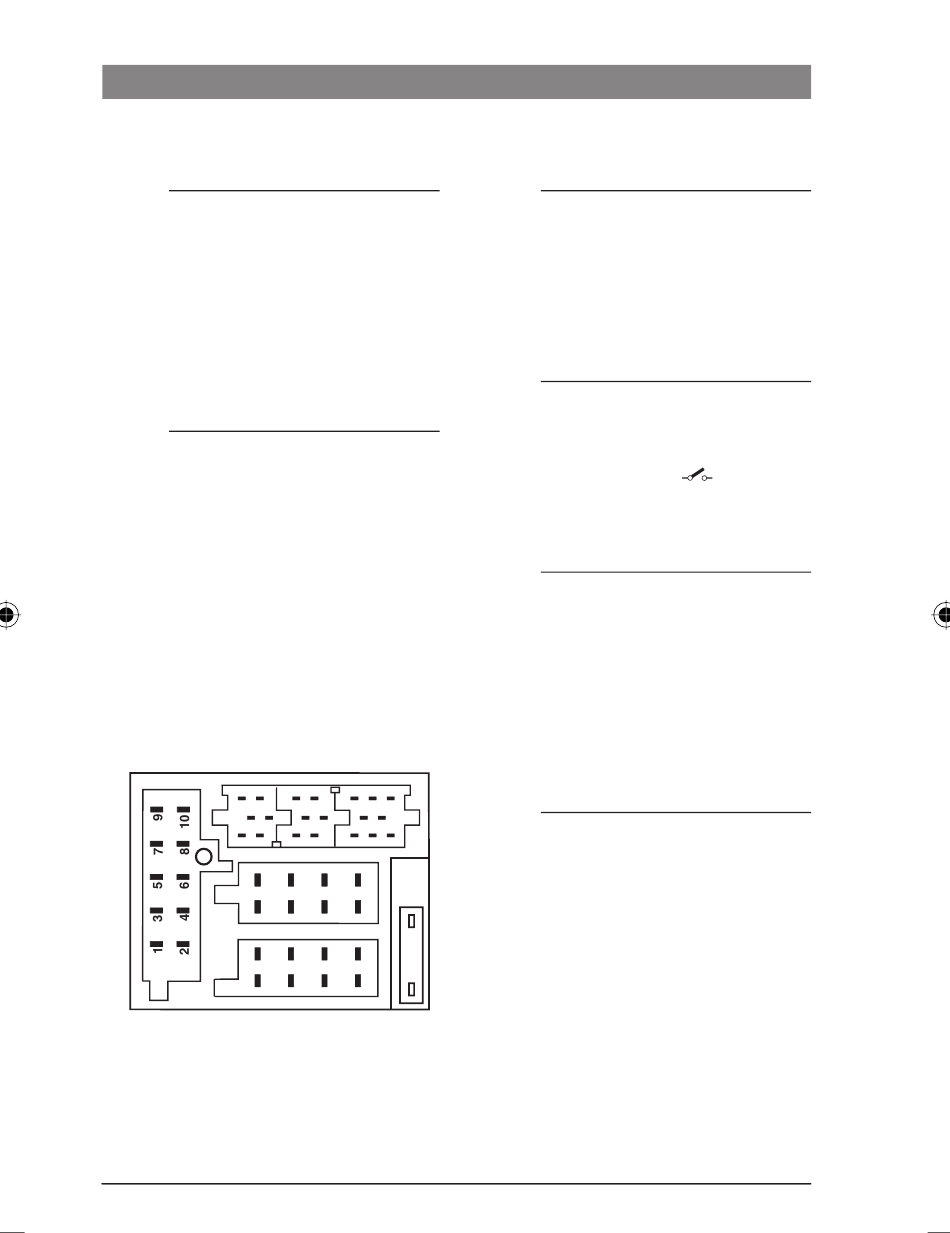

ISO connector
ISO connector
A
Power supply
1
CAM IN/OUT
2
MAP ON (+12 V OUT)
3
VIDEO RELAIS IN
4
VIDEO RELAIS OUT
5
–
6
ILLUMINATION
7
Battery (+12V)
8
GROUND (MINUS)
B
Speaker connector
1
PHONE AF OUT
2
PHONE AF GND
3
Speaker right (+)
4
Speaker right (–)
5
Speaker left (+)
6
Speaker left (–)
7
–
8
–
C1
1
4
6
3
2
5
D
1
3
2
4
1
3
2
4
Robert Bosch Car Multimedia GmbH
All manuals and user guides at all-guides.com
C2
C3
7 10
13 16 19
C
9 12
15 18
8 11
14 17 20
5
7
B
6
8
5
7
A
6
8
C1
CRD CONNECTOR
1
RADIO IN LEFT (FIX)
2
RADIO IN RIGHT (FIX)
3
RADIO/CD GND
4
CD IN LEFT (FIX)
5
CD IN RIGHT (FIX)
6
CCA ON (+12 V IN)
C2
VIDEO connector
7
CABLE REMOTE
8
VIDEO AF GND
9
VIDEO VCC +24 V (
10
VIDEO AF LEFT
11
VIDEO AF RIGHT
12
VIDEO GND
C3
CHANGER connector
13
–
14
–
15
–
16
CDC ON (+12 V OUT)
17
–
18
CDC AF/I-POD AF GND
19
CDC AF/I-POD AF IN LEFT
20
CDC AF/I-POD AF IN RIGHT
D
MICROPHONE connector
1
MIC 1 AF (+)
2
MIC 1 AF (–)
3
MIC 1 REMOTE
4
MIC 2 REMOTE
5
MIC 2 AF (+)
6
MIC 2 AF (–)
7
MIC 1 REMOTE GND
8
MIC 2 REMOTE GND
9
–
10
–
7 620 210 013 | 10.2009
117
)
