Installation Guide
FH-WC + Danfoss Icon™
3 x 1.5
Normally Closed (NC)
M
Danfoss A/S
IP21
6430 Nordborg
T30
Denmark
Max. load: 10W/50mA
Icon™ Display 230V
Load
L
N
N
L
3 x 1.5
Normally Closed (NC)
M
Danfoss A/S
IP21
6430 Nordborg
T30
Denmark
Max. load: 10W/50mA
Icon™ Programmable 230V
Load
L
N
N
NTC
L
3 x 1.5
Normally Closed (NC)
M
Note!
088N2916 / VISPM64F
All manuals and user guides at all-guides.com

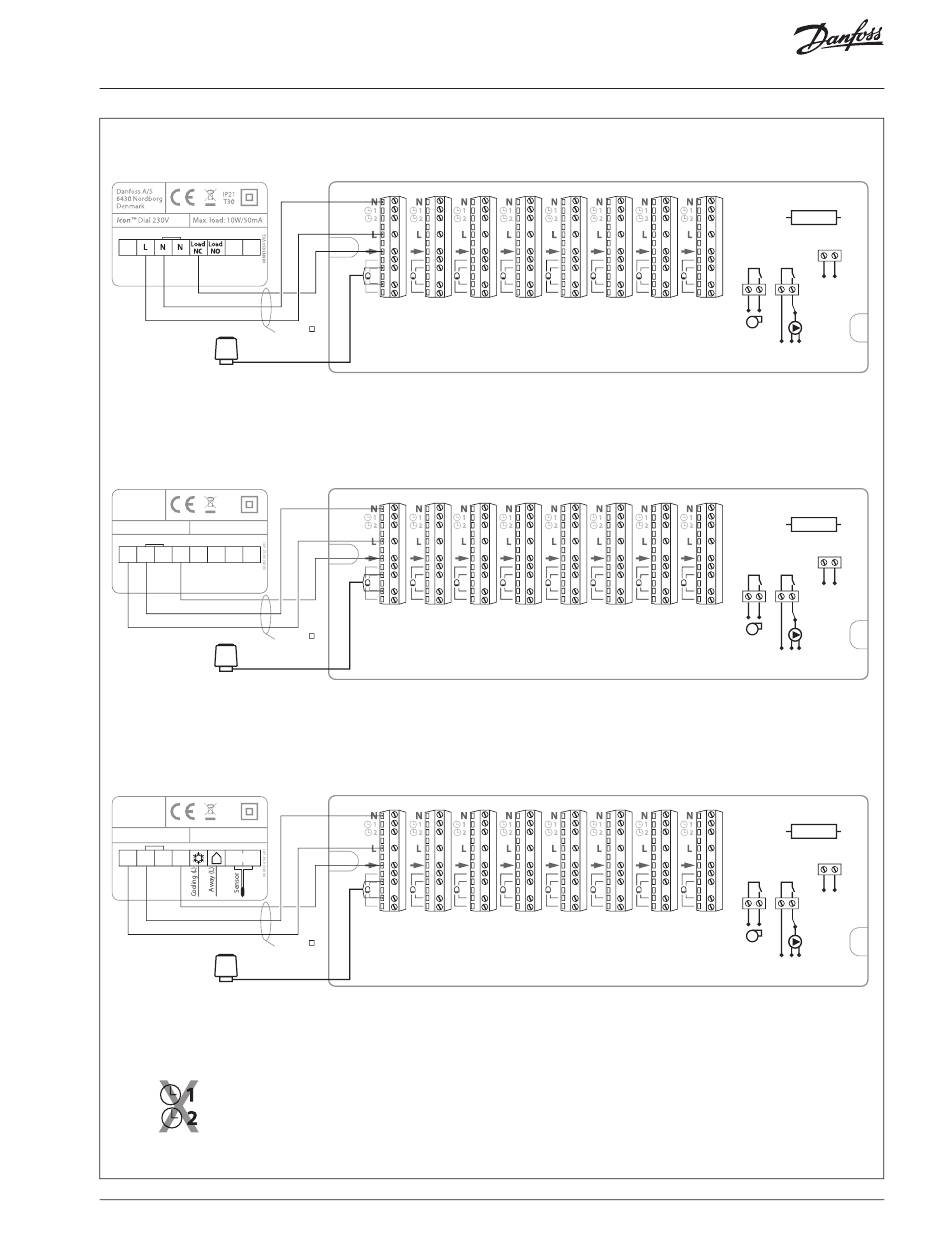

FH-WC - Connection Box, 230V
FH-WC + Danfoss Icon™ Dial
FH-WC + Danfoss Icon™ Display
FH-WC + Danfoss Icon™ Programmable
4A FUSE
N L
VOLT FREE
230V,
50 Hz
BOILER
PUMP
L
N
PE
4A FUSE
N L
VOLT FREE
230V,
50 Hz
BOILER
PUMP
L
N
PE
4A FUSE
N L
VOLT FREE
230V,
50 Hz
BOILER
PUMP
L
N
PE
