Eaton Power Defense BSM Montagehandleiding pagina 2
Montageframemaat 5 trip unit

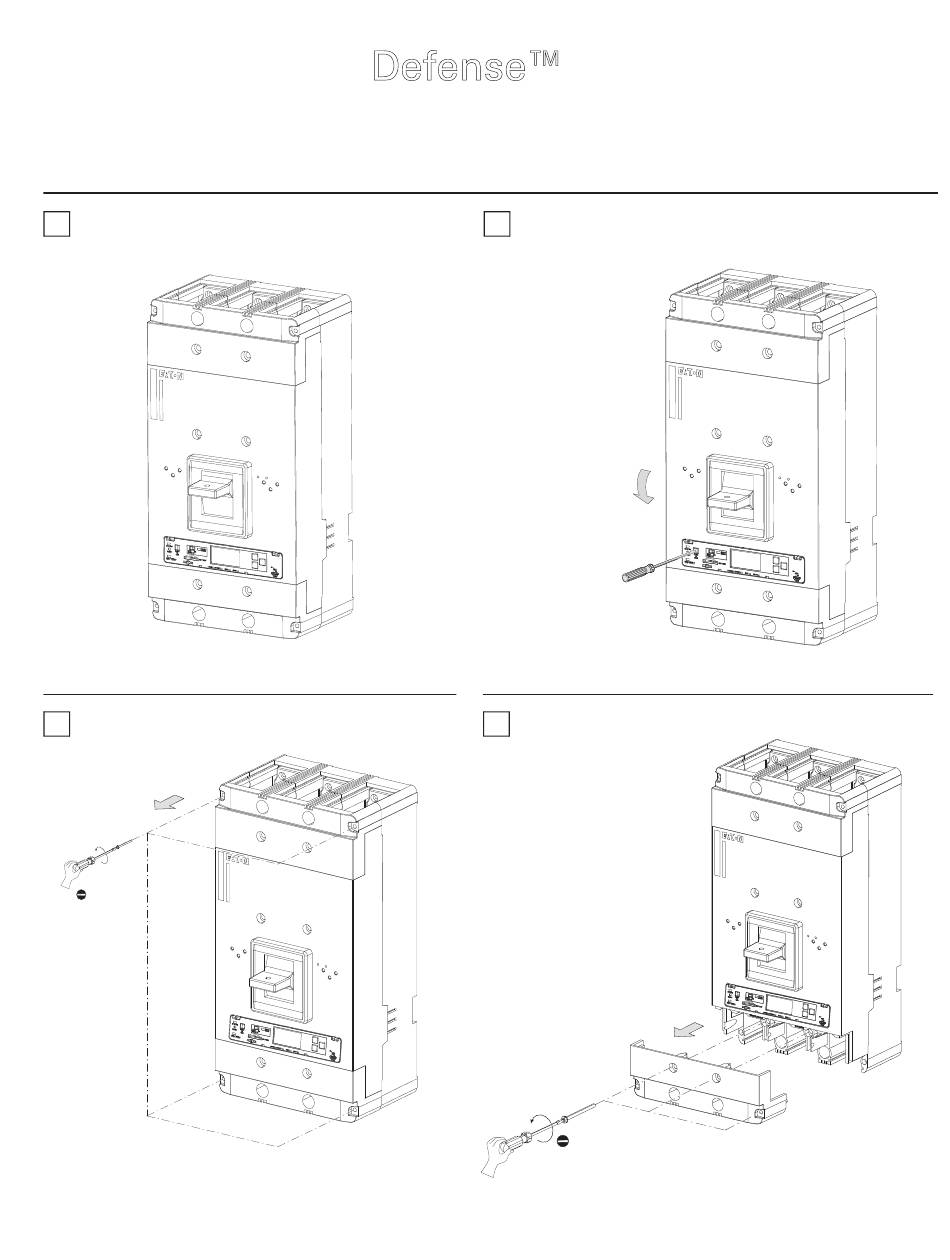

Installation Instructions for BSM Assembly
1
3
6.35mm
(1/4 in)
2.7 - 3.4 Nm
(24 - 30 lb-in)
2
EATON
IL012307EN
Power
Defense™
Frame Size 5 Trip Unit
2
WARNING!
It is critical that the trip unit is
installed and connected to the
frame rating module and that the
breaker cover is secure before
any attempt to power up the
unit via USB or auxiliary power.
4
IL012307EN
Effective 03/25
Supersedes 04/21
9.5mm
(3/8 in)
4 - 5 Nm
(35 - 45 lb-in)
