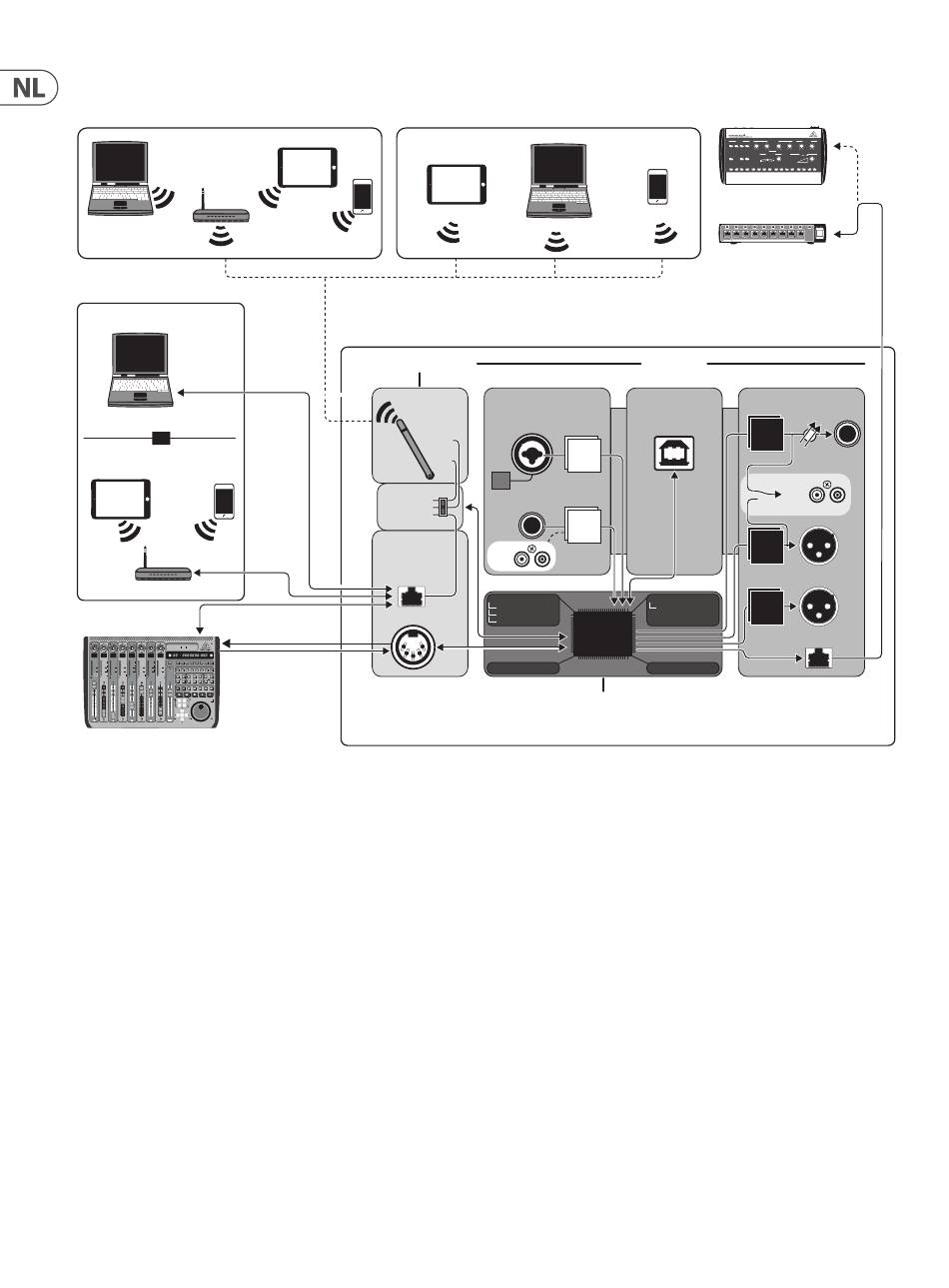

3.1.3 X18/XR18 Systeemoverzicht
WIFI CLIENT mode (Mobile Devices with Wifi)
Router
Mac/Win/Linux
ETHERNET mode
Computer with Ethernet port
CAT-5 cable
Mac/Win/Linux
or
Mobile Devices with Wifi
iOS/Android
CAT-5 cable
Router
or any other MIDI /
Mackie Control
compatible Controller
X-TOUCH
ACCESS POINT mode (Mobile Devices with Wifi)
iOS/Android
iOS/Android
MIXER CONTROL
WIRELESS CONTROL
WIFI
CLIENT*
ACCESS
POINT*
ACCESS POINT
WIFI CLIENT
ETHERNET
WIRED CONTROL
ETHERNET
MIDI I/O
*WIFI CLIENT mode:
- available channels: 1-11
*ACCESS POINT mode:
- available channels: 1-11
- max. 4 Wifi clients
- performance limited by Wifi bandwidth
Android
Mac/Win/Linux
AUDIO I/O
AUDIO INPUTS
USB AUDIO
MIC/LINE IN
AUDIO IN/OUT
CH. 1-16
CH. 1-18
ADCs
Hi-Z
CH.1-2
LINE IN
CH. 17-18
XR18:
ADCs
X18:
DSP-MIXER CH.
DSP-MIXER BUSES
MONO IN 1-16
AUX /
USB/AUX IN (STEREO)
GROUP SEND 1-6
FX RETURN 1-4 (STEREO)
DSP
4 STEREO FX SLOTS
RTA METER
DSP ENGINE
or
P16-M
P16-D
AUDIO OUTPUTS
PHONES STEREO
DACs
LEVEL
CTRL/PHONES
X18:
MAIN OUT L/R
MAIN OUT L-R
DACs
AUX SEND 1-6
DACs
ULTRANET OUT
CH. 1-16
X18/XR18
