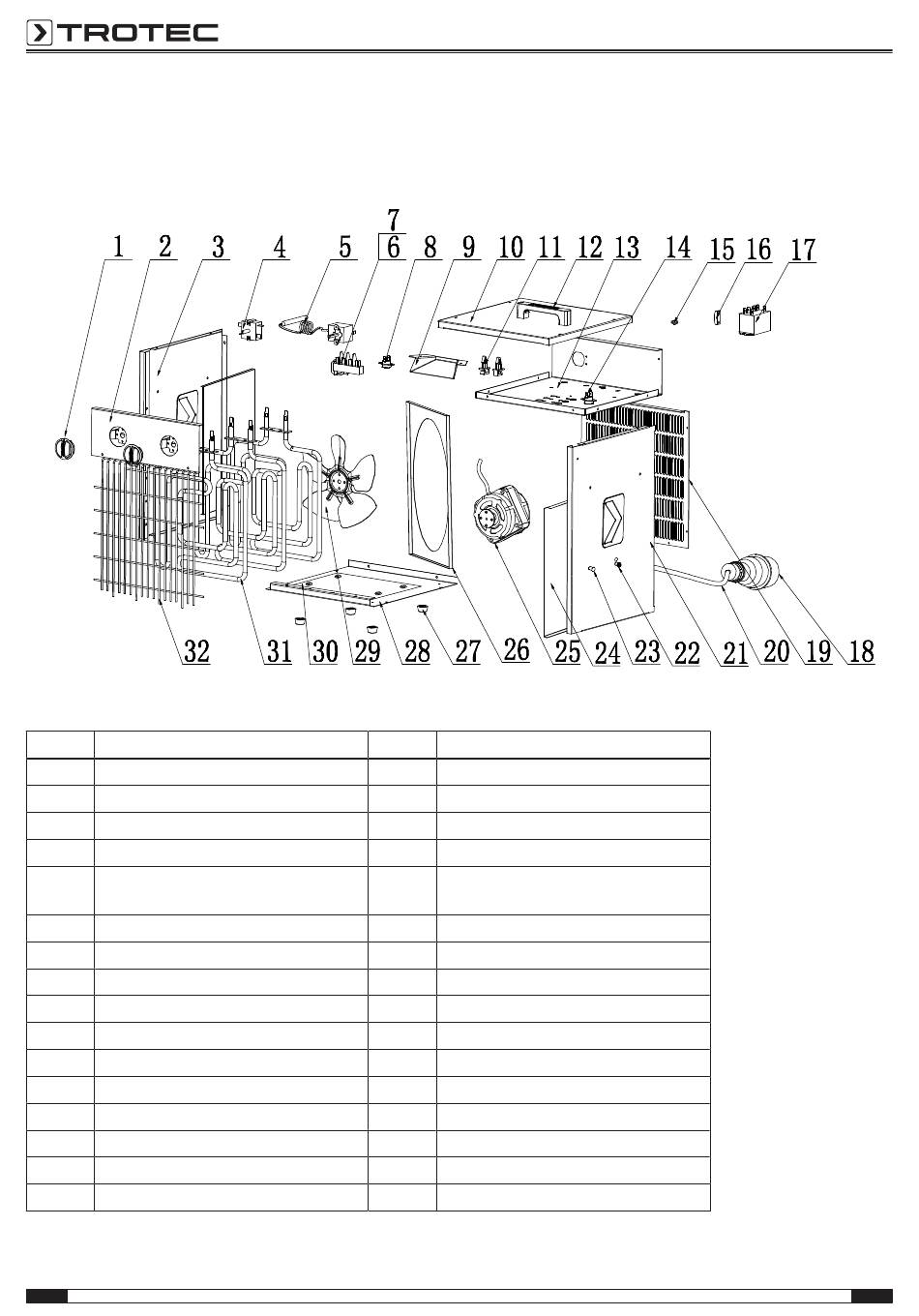

Reserveonderdeeloverzicht TDS 30
Reserveonderdeellijst TDS 30
NO.
SPARE PART
1
Knob (PA)
2
Control panel (SPCC)
3
Left panel (SPCC)
4
Switch (250V15A)
5
Adjustable thermostat
(400V/15A/50/60Hz/40°C)
6
Binding post (BG4-1 450V 2.5mm²)
7
Binding post components (PA)
8
Re-set thermostat (KSD302/400V/20A)
9
Protection cover (SPCC)
10
Top cover (SPCC)
11
Fixed support (PA)
12
Handle (PA)
13
Middle panel (SPCC)
14
Time Delay thermostat (250V 10A K45)
15
Protection bush (PVC-P)
16
Wire fixing plate (PA)
20
Opmerking!
De positienummers van de reserveonderdelen verschillen van
de in de gebruiksaanwijzing gebruikte positienummers van de
onderdelen.
NO.
SPARE PART
17
Relay (AC400V 25A)
18
Industrial plug (240/415V 16 A)
19
Back grill (APCC)
20
Power cord (H07RN-F4G1.5mm²)
21
Right panel SPCC)
22
Pull rivet nuts (M8)
23
Stopple Ø8
24
Heat Insulation plate (SECC)
25
Motor (400 V/ 50 Hz / 40W)
26
Air flue (SPCC)
27
Feet (PA)
28
Bottom panel (SPCC)
29
Fan (AL)
30
Bottom Thermal baffle (SECC)
31
Heating element (230V 1830W)
32
Front grill (Ø 2.6 mm steel wire)
